| Categories | Farm Gates |
|---|---|
| Brand Name: | wiremeshfence.com/buy-farm_fence.html |
| Model Number: | 1.6m 1.8m height 5 bar 6 bars |
| Certification: | ISO |
| Place of Origin: | American Design China Made |
| MOQ: | 500 liner meter |
| Price: | 8.88$ per liner meter |
| Payment Terms: | TT30% deposit balance 70% at sight of finished products |
| Supply Ability: | 10000 liner meters |
| Delivery Time: | 7 work days |
| Packaging Details: | All metal Pallets |
| Materials: | Q235 steel pre hot dipped galvanized steel pipe |
| Color: | Any Ral Color |
| Treatment: | Hot Dipped Glavanized,Powder Coated |
| Thickness: | 1.2-2.5mm |
| Type: | Weld panels |
| Warranty: | 5 -25 years depand on the treatment |
| Main Market: | Oceania Europea ,Middle East ,USA ,AU etc |
| Accessoires: | U and L lugs |
| Customized: | Available |
| Sample: | Free but pay freight cost |
| Square pipes: | 40*40mm*1.6mm,50*50*1.6m |
| Round Pipes: | 32mm,42mmO.D,1.6mm thick |
| Oval Pipes: | 30*60*1.6mm,40*80*1.6mm |
| Height: | 1.6m high with 5 bars,1.8m |
| Name: | Heavy duty galvanized livestock panel ,cattle panel ,horse pane, ,sheep panels |
| Stanard Size: | 1800x2100,1600mm x 2100mm |
| Company Info. |
| Top Fencing Co.Limited |
| View Contact Details |
| Product List |
.Specification of Cattle Fence
| Specification | Normal size |
| Height x Length | 1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m 3.37*1.8m |
| pole style | Round pipe or square pipe or oval pipe |
| Pole specification | 32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on |
| Package details | In steel pallet or in bulk |
We can produce with your demand
2.Process of Cattle Fence
hot dip galvanized tubes—welded together—welding spots polishing—spots anti-rusting paint—spots silver paint
3.Surface treatment of Cattle Fence
hot-dipped galvanized or paint
4.Feature of Cattle Fence
1>Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
2>Robust: interlocking system makes the fence very stable:quality steel and fully welding makes the panel more stronger;heavy duty and anti-broken; high zinc or PVC coated make the fence durable
3>Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations. And it benefit grassland protection.
6. Different style of Cattle Fence:
1>round style
| Material | pre hot dipped galvanized steel pipe |
| Finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| Vertical pipe | 32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| Horizontal rails | 32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| Welds | bull bars are fully welded, each weld is protected with epoxy paint |
2>square tube style
| Material | pre hot dipped galvanized steel pipe |
| Finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| Welds | bull bars are fully welded, each weld is protected with epoxy paint |
3>Oval tube style
| Material | pre hot dipped galvanized steel pipe |
| Finishing(zinc coating) | more than 15 microns |
| Height x Length | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| Horizontal rails | 30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| Welds | bull bars are fully welded, each weld is protected with epoxy paint |

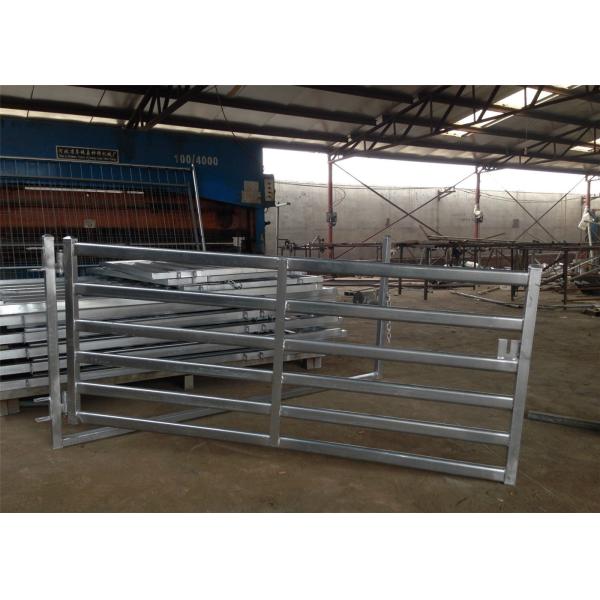

4>Cattle panel gate
| Height x Length: | 2200mm x 2000mm |
| Frame: | Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps |
| Cattle Gate Horizontal rail: | 40 mm x 80 mm x 1.6mm thick x 6 oval rails |
| Finishing: | hot dipped galvanized ,zinc coating:more than 15 microns. Fully welded oval pipes, post &brackets ,heavy duty hinges |
7.Application of Cattle Fence
Used in raising the animals,specially the cattle,the cow,the horse,the sheep etc.
|
