| Categories | Outdoor Telecom Cabinet |
|---|---|
| Brand Name: | ESTEL |
| Model Number: | ET605060-EQ |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1PC |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1200PCS per month |
| Delivery Time: | 15 days |
| Packaging Details: | wooden case |
| External Size: | W×D×H 600×500×600mm |
| Door: | One front door(add one rear door according to customer's demand) |
| Material: | Aluminum, single wall, 2.5mm thickness |
| Equipment Height: | 12U |
| Cooling: | Heat exchanger/ fan |
| Top cover: | Solar shield, aliminum 2mm |
| Color: | RAL7035 |
| Price: | 358-2143 usd |
| cabinet: | Outdoor telecom cabinet |
| Company Info. |
| Tianjin Estel Electronic Science and Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

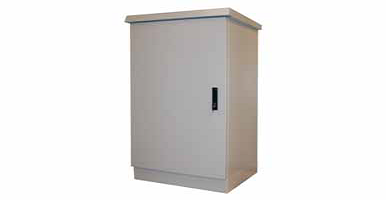

OUTDOOR CABINET FOR THE MOST CHALLENGING OPERATING CONDITIONS
• High stability up to earthquake resistance
• Weight-saving aluminium construction
• Assembly possibilities with 19", ETSI or other accessories
• Tested thermal concepts available
• IP 55 and security against vandalism
COMLINE: SINGLE WALL
Weight-saving aluminium construction. Single wall cabinet
ready for wall, pole or ground installation. Optimal for diverse applications
in industry, transportation and communication.

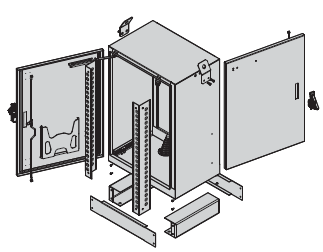

Versions
• ECL - single access (front door)
• FTTX - single access (front door) and dual access (front and rear door)
UNIBODY
Cost-effective inner case with removable outer cladding.
This version has advantages especially for small cabinets.
If accessed through the front door, it meets the installation requirements.
Versions
• With natural convection
• With fan
• With heat exchanger
MODULAR
Aluminium profile frame with removable, double-walled cladding.
This version has advantages especially for large cabinets and if access
from all sides is needed.
Versions
• With fan
• With heat exchanger

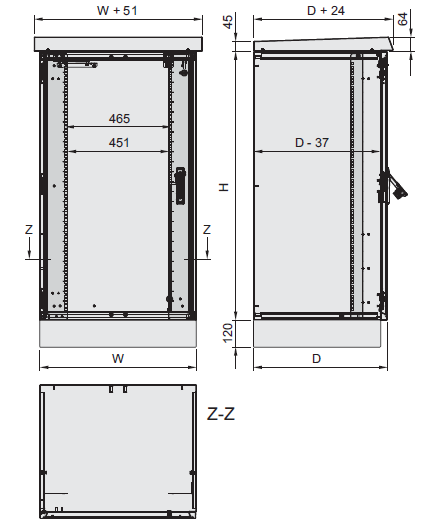

Drawing shows version with with plinth
Drawing shows version with plinth
Door opening height = H - 75 mm;
door opening width = W - 75 mm
• Single wall, lightweight aluminium cabinet
• Heat dissipation through natural convection
• IP 55
• 2 versions
• With plinth
• Without plinth

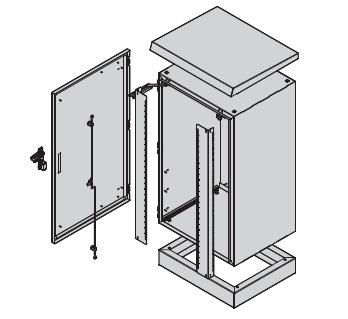

Technical Spec
| Item | Qty | Description |
| 1 | 1 | Body, single wall, Al, 2.5 mm, RAL 7035 |
| 2 | 1 | Front door, Al, 2.5 mm, RAL 7035, 3-point locking, lever handle with DIN profile half cylinder, door opening angle 135°, door retainer at 110°, door hinged on left hand side; electrical door switch |
| 3 | 1 | Solar shield top cover, Al, 2 mm, RAL 7035 |
| 4 | 1 | Plinth, Al, 3 mm, height 120 mm (only for version with plinth) |
| 5 | 2 | 19"/23" panel/slide mounts, St, galvanised, 2.5 mm |
| 6 | 1 | GND/earthing kit, assembled |

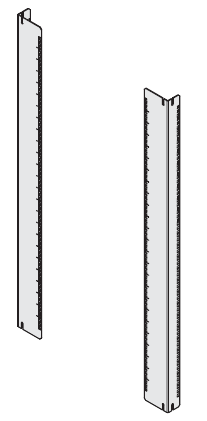

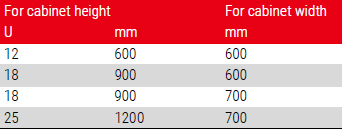

19"/23" PANEL/SLIDE MOUNT KIT FOR COMLINE ECL
• For fitting to depth member (25 mm grid)
• For recessed installation of 19"/23" components
• Slide rails can be fitted
• Load-carrying capacity 400 kg
|
