High security 358 wire mesh fence anti-climb fence for airport

358 high security fence is a kind of high strength and high security fence. 358 high security fence means fence panel with 3'' × 0.5'' mesh opening and 8 gauge wire diameter. The mesh opening is so small that people can't put fingers into it and climb it. And the 8 gauge wire is so strong that can't be cut by bolt cutters and wire cutters. 358 high security fence is also usually used with barbed wire, razor wire and wall spikes to further enhance the security. 358 high security fence with higher security can be used in prison, borderline, power plant and some places that require strong security and privacy. In addition, our products with galvanized or PVC coating surface treatment has good corrosion resistance.

For higher security performance, you can choose the 3D 358 high security fence and 2D 358 high security fence.

2D 358 high security fence

2D 358 high security fence is a special 358 high security fence. The 2D 358 high security fence panels have double horizontal wires at 152.4 mm centre. This structure make it more strength than the normal 358 high security fence.
3D 358 high security fence

3D 358 high security fence is very similar to the 358 high security fence. It also has anti-climb and anti-cut structures. But 3D 358 high security fence has special "V" shaped appearance. It combine the aesthetics and security.

HSF-2: 2D 358 high strength security fence

HSF-3: 3D 358 high security fence

Except for the 358 mesh fence, we can also supply the 356 high security fence and 3510 high security fence.

356 high security fence

356 high security fence is similar to 358 high security fence. The most difference is that the 6 gauge wire diameter has replaced the 8 gauge wire diameter. It with anti-climb and anti-cut features also can be used in prison and other places to protect safety.
3510 high security fence

3510 high security fence, also called anti-climb 3510 security fence is also a kind of high security fence. Compared with 358 high security fence, it use 3 mm diameter wire replace the 4 mm diameter wire. It is a more economical choice than 358 high security fence.

HSF-4: 356 high security fence has anti-climb feature

HSF-5: 3510 high security fence

Specification
Material

low carbon steel, iron, stainless steel.
Surface treatment
- Electro-galvanized wire & Electrostatic powder coating.
- Hot dipped galvanized wire & Electrostatic powder coating.
- Black steel wire & Hot dipped galvanized.
Wire diameter

8 gauge.
Mesh opening

3" × 0.5".
Color

black, sliver, green and so on.
Type
- 358 high security fence.
- 2D 358 high security fence.
- 3D 358 high security fence.

Table 1: 358 High Security Fence Specifications
Item	Fence height (m)	Panel size (Height × Width) (mm)	Fence Post (Height × Size × Thick) (mm)	Clamp Bar(mm) (Height × Width × Thick) (mm)	Interior or corner Clamp No. (pcs)
HSF-1	2.0	2007 × 2515	2700 × 60 × 60 × 2.5	2007 × 60 × 5.00	7 or 14
HSF-2	2.4	2400 × 2515	3100 × 60 × 60 × 2.5	2400 × 60 × 5.00	9 or 18
HSF-3	3.0	2997 × 2515	3800 × 80 × 80 × 2.5	2997 × 80 × 6.00	11 or 22
HSF-4	3.3	3302 × 2515	4200 × 80 × 80 × 2.5	3302 × 80 × 6.00	12 or 24
HSF-5	3.6	3607 × 2515	4500 × 100 × 100 × 3.0	3607 × 100 × 7.00	13 or 26
HSF-6	4.2	4204 × 2515	5200 × 100 × 100 × 4.0	4204 × 100 × 8.00	15 or 30
HSF-7	4.5	4496 × 2515	5500 × 100 × 100 × 5.0	4496 × 100 × 8.00	16 or 32
HSF-8	5.2	5207 × 2515	6200 × 120 × 120 × 5.0	5207 × 100 × 8.00	18 or 36

Table 2: 3D Security Fence Specifications
Item	Panels				Posts
	Fence height	Panel Size Height/Width	Number of Beams	O/A Length	Material and fixing clamps
	Fence height	Panel Size Height/Width	Number of Beams	O/A Length	Interior		Interior
	m	mm		mm	Material mm	Clamps No.	Material mm	Clamps No.
3DSF-1	2.0	2000 × 2515	2	2700	80 × 60 × 2.0, RHS	6	80 × 80 × 2.5 SHS	12
3DSF-2	2.4	2400 × 2515	3	3100	80 × 60 × 2.0, RHS	7	80 × 80 × 2.5 SHS	14
3DSF-3	3.0	3000 × 2515	3	3800	80 × 80 × 2.5, SHS	10	80 × 80 × 2.5 SHS	20

Feature

Higher strength, high security.
The welded joints are fixed firmly, not easy to be damaged.
Anti-climbing, small mesh openings, no fingers can pass through.
Anti-cut, high strength wire is not easy to be cut.
Corrosion resistance, rust resistance.
Smooth and bright surface.
Easy to install and maintain.

HSF-6: Anti-climb 358 high security fence

HSF-7: Anti-cut 358 high security fence

Application

Prison.
Military base.
Airport.
Railway.
Shipping port.
Power plant.
Hospital.
School.
Community.
Park.
Bridge.
Roadside.
Farm.
Borderline.

HSF-8: 358 high security fence used with barbed wire

HSF-9: 358 high security fence is used with razor wire

HSF-10: 358 high security fence used with wall spikes

HSF-11: 358 high security fence used in railway

HSF-12: 358 high security fence in community

HSF-13: 358 high security fence installed in yard

HSF-14: 358 high security fence in office building

HSF-15: 358 high security fence installed in park

HSF-16: 358 high security fence installed in roadside

HSF-17: 358 high security fence used in power plant

HSF-18: 358 high security fence in shipping port

HSF-19: 358 high security fence is used in farm

HSF-20: 358 high security fence installed in factory

HSF-21: 3D 358 high security fence used in factory

Installation:

Two pieces of 358 high security fence panels are connected with post. And the post can be fixed on the concrete ground and soil ground.

HSF-22: 358 high security fence is installed with post

HSF-23: 358 high security fence is connected with post

The Specification of the 358 Anti-climb Fence
Anti-cut	flat, two-dimensional profile, easier to see through
Anti-climb	More small openings, no toe or finger holds
Height	1800mm,2007mm,2400mm,2997mm,3302mm,3607mm.as customer requirement
Width	2000mm,2515mm,3000mm.as customer requirement
Mesh Size	76.2mm12.7mm / 75mm12.5mm / 100mm*15mm
Certification	ISO9001:2008

Detailed Images

Panel:
Manufactured using 4mm wire welded at each intersection creating the strong and durable panel, the mesh aperture consists of a 76.2 x 12.7mm mesh spacing providing ultimate protection against climbing and cut-through with excellent see-through visibility!

Post:
Square hollow section posts provide both strength and safety. Plastic post-tops prevent water ingress which can cause rust. Posts can be manufactured to suit the site, either to be concreted into the ground, Baseplate for fixing to a concrete base, and/or cranked to receive another panel or for razor wire.

Application of anti-climb fence:

1. Bridge anti-climb guarding & guard safety screening 2.Sub-station Security Fencing 3.Psychiatric hospital security fencing 4.Prison Security Fencing 5. Factory Machine guards 6. Walkway security fencing 7.Airport security fencing 8.358 wire mesh fence gates 9.Shipping Port Security fencing 10.Electrical sub-station fencing 11. Water Treatment works 12.Gas pipelines Security Fence 13.High-security window grilles 14.Balustrades Security Fence 15.Commercial/Industrial Security Fence uses

Anti-climb security fence Features:

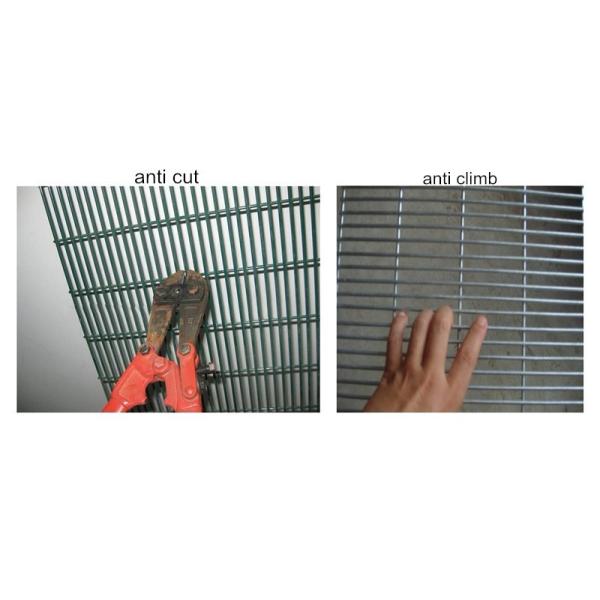

· 76.2 × 12.7 × 4.0mm mesh size makes it difficult to penetrate using conventional hand tools, thus providing a high Security.
· With small and narrow mesh opening, no toe or finger holds, robust wire and strength welded joints on every weld make it anti-cutting and anti-climbing.
· With high strength, 3510 Security Fencing is lighter than 358 Security Fencing. Using 3.2mm wire instead of 4mm allows even better visibility - easier to see through, so it's ideal for commercial applications.
· Galvan or powder coated for long life protection.

Packing & Delivery

358 anti-climb fence packing:
1. It has a sponge at the bottom of the pallet to protect the bottom fence panel.
2. It has 4 iron corners to make the pallet more strong.
3. It has a metal plate under the bandage to avoid the bandage destroyed the fence panel.
4. It has the wood plate on the top of the fence panel pallet to avoid the above pallet destroy the under fence panel pallet.
5. As your request.

Our Service

1. 24 hours online service, quick and professional reply to your enquiry.
2. Quotation: giving a professional and detailed offer according to the requirement or design drawing.
3. Sample service: the small sample is free to supply, the only courier freight needs to be paid.
4. Customization was available.
5.Track all the way to ensure product safety.
6.High-quality after-sale service.

Product Tags:


*From:	Your email address is incorrect!
*To:	Top Fencing Co.Limited
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Clearvu Fence
Brand Name:	LNF-ClearVU Wire Fence
Model Number:	3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire
Certification:	ISO
Place of Origin:	South African Design China Made
MOQ:	500 liner meter
Price:	18.88$ per liner meter
Payment Terms:	TT30% deposit balance 70% at sight of finished products
Supply Ability:	10000 liner meters
Delivery Time:	7 work days
Packaging Details:	All metal Pallets
Materials:	Q235 Steel
Mesh Opening:	3" x 0.5" x 8gague wire,12.70mm x 76.20mm
Diameter:	4.00mm ,3.00mm
Size:	Available Customized
Color:	All RAL color card
Treatment:	Hot Dipped Galvanized Or Powder Coated
V Beams:	Available
Sample:	Free but pay freight cost
Accessoires:	Clamp,Post ,Y arm for barb wire
Feature:	Anti ,Resistant ,Cut ,Climb
Main Market:	Africa ,Oceania ,Aisa
Salt Spray Test:	Pass
