500L 2 Vessel Craft Beer Brewing Equipment Turnkey Microbrewery Systems

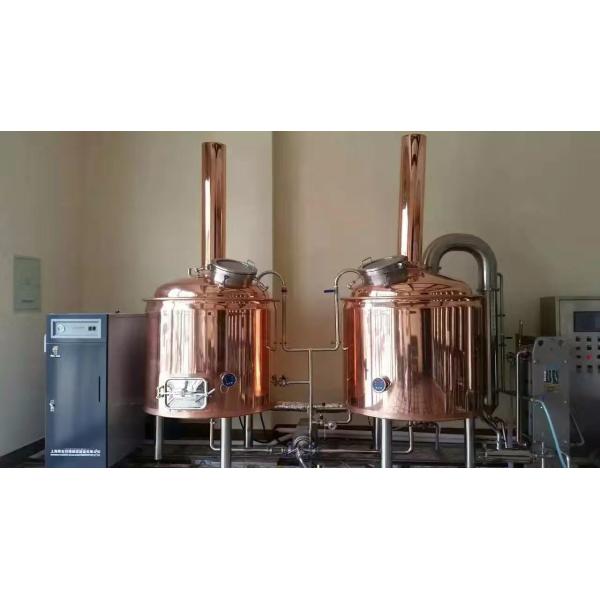

500L 2 Vessel Craft Beer Brewing Equipment Turnkey Microbrewery Systems

500L 2 Vessel Craft Beer Brewing Equipment Turnkey Microbrewery Systems
500L 2 Vessel Craft Beer Brewing Equipment Turnkey Microbrewery Systems
Categories Craft Beer Brewing Equipment
Brand Name: CGET
Model Number: CG
Certification: CE UL ISO
Place of Origin: Shandong, China (Mainland)
MOQ: Negotiable
Price: Negotiable
Supply Ability: 300Set Per Years
Delivery Time: 40Work Days
Packaging Details: PE film, wooden case or iron frame.
Processing: Fermenting Equipment
Condition: New
Voltage: 380V 50HZ / 220V 60HZ
Dimension(L*W*H): Capacity Request
Weight: According To Equipments
Application: Brewpub /hotel or micro brewer
Heating method: steam /electricity or direct fire
washing system: CIP washing
Contact Now
Company Info.
Shandong Dehui Fermentation Intelligent Equipment Co.,Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

500L 2 Vessel Craft Beer Brewing Equipment Turnkey Microbrewery Systems

500L 2 Vessel Craft Beer Brewing Equipment Turnkey Microbrewery Systems


The compositon of our beer brewery equipment
Beer brewing equipment/micro brewery
Brewing System Components Specification
Milling System Miller Double Roller,Noise<60db
Heating System Boiler (steam heating) Electric,Gas,Oil,Coal Type/CE certification
Brewhouse System Mash/Lauter tun Mashing Process:Decoction.Infusion.Multi-step infusion
Heating source:Steam,Electric,Gas
SUS304/Red copper
Brew Kettle/
Whirlpool Tank
Hot Water Tank
Heat exchanger Stainless steel plate
Fermentation System Fermentation Tank Top manway/Side manway
Drying hop port to brew IPA
Dimple Plate Cooling jacket
Carbonation port to fill CO2
Yeast Adding Tank SUS304 Stainless Steel
Cooling System Glycol Water tank Equiped with PU level indicator
Chiller UL/CE certified electric elements,Copeland compressor
Pump
Cleaning System Disinfection Tank SUS304 full welded
Alkali Tank
Pump
Control System Control Cabinet Manual/Semi-automatic/Automatic
Optional Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller
Support equipments
Application:
500L mini brewery equipment for a bar, hotel or a small brewery. It is characterized by Smaller scale and are independently owned, more emphasis on brewing technology and beer taste. We can provide the following services, customized equipment according to your demand, foreign installation services, beer making technology, various flavors of beer making formulations, personnel training, and so on. Our equipment customization service can be customized according to your output, the type of beer making, the budget and the size of your site, saving time and effort, and scientific and reasonable.

Specification:
Output/Brew: 5HL Electric Supply 3phase/380(220, 415,440...)v/50 (60)Hz
Single Phase/ 220(110, 240...)v/50(60)Hz Brew/Week :2~6 Output/Week: 10~30HL
Heating Source: Electric/Steam Area Request: >45 m² Brewmaster: 1
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
Configuration
No
Name
Components
Specification
1
Grain Milling Unit
Rolling Miller
Double roller
2
Brewhouse Unit
Mash/Lauter tun
Grain rake with VFD
Removable false plate 3 blocks
Clean the ball 360 degrees in all directions
glass manhole(optional)
Sight glass light (optional)
Level gauge (optional)
Kettle/Whirlpool Tun
Steam Jacket on bottom and side/direct gas fired heating/electric heating
Steam vent with condensate ring for kettle stack
Equipped with: Agitator
Hot water tank
Steam Jacket heating/direct gas fired heating/electric heating
Heat exchanger
SUS304 plate
3
Fermentation unit
Fermenter
Glycol cooling jacket on cone and bottom
Side or top manhole
CIP arm and CO2 blow off arm
Shockproof pressure gauge
Dry hopping port
60 degree cone bottom
Design pressure 30 psi , using pressure 15-20 psi
Four legs with brace and adjustable bolt;
4
Bright beer tank
Bright beer tank
Glycol cooling jacket on cone and bottom
Side or top manway
CIP arm and CO2 blow off arm
Germany import Kieselmann Mechanical relief valve
Shockproof pressure gauge
Rotating racking arm
Carbonation stone
stainless steel 304
5
Glycol Chilling Unit
Glycol Water Tank
Insulated conical top and sloped bottom
Cold Water Tank
Dimple plate on side wall
Chiller
5P refrigeration unit
6
Control unit
Brewing and fermetation process Controlling
Manual button control panel or PLC control with touch screen for special.
7
CIP
Caustic Tank
with heating
Sterilization Tank
sterilization
Control
Control pump and heating tube, single control
8
Others

We passed the CE PED LVD certification. Besides Our company adheres to the principle of high quality and low price. please tell me your specific requirements, So I will give you an accurate quote, detailed configuration list, technical drawings and CAD layout according to your site. Choose me, Let you save time and energy.
