| Brand Name: | WANHAI |
| Certification: | SGS D&B |
| Place of Origin: | anping china |
| MOQ: | 500KGS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1500tons per month |
| Delivery Time: | 7days-30days |
| Packaging Details: | according to customer requirements |
| material: | good quality stainless steel wire, SS304 wire, SS316 wire, mild steel wire, high carbon steel wire, galvanized wire ETC also used as materials of crimped wire mesh |
| specification: | 0.5mesh-10mesh |
| advantage: | square opening holes, precise construction, uniform mesh, excellent corrosion and rust resistance, |
| application: | widely as sieving mesh, petrochemical filter, building wall mesh, decorative mesh and mesh fencing, food machinery mesh, barbecue wire mesh. |

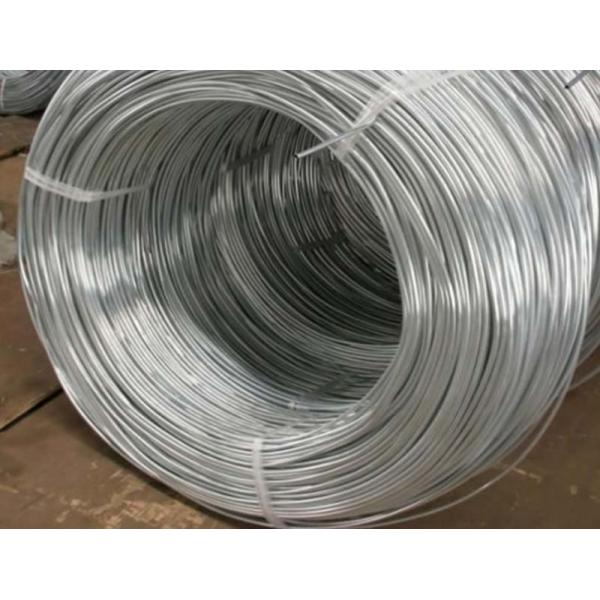

Electro Galvanized Iron Wire
Electro Galvanized Wire is our featured product, factory own 30 sets of large wire drawing
machines, 60 sets of medium wire drawing equipments, 3 sets of
electro galvanizing production line, daily output 30 tons of
electro galvanized iron wire, they have the characteristics of
uniform and firm zinc coating, good corrosion resistance, excellent
flexibility, etc, mainly used in contruction binding wire, making
of common wire nails, barbed wire twisting, strand wire, binding of
flowers, handicrafts, woven galvanized square wire mesh and galvanized welded wire mesh.
We are gal wire supplier.
Electro Galvanized Wire produce process:
Steel rod - Wire Drawing - Wire Annealing - Rust Removing - Acid
Washing - Boiling-Drying-Zinc Feeding-Wire Coiling
Material: low carbon steel wire
Wire diameter range: BWG8-BWG34
Packing: 1-1000kgs/coil, coil with plastic film inside and hessian
cloth outside or weaved cloth outside
Zinc coat: 10-25g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%-20%
Quantity in one 20ft container:25 tons generally
Min order quantity: 2000kgs
electro galvanized iron wire is mainly processed into coil wire,
spool wire, strand wire, big package wire, or further straightened
and cut into pre-cutting wire and U type wire.
| GAUGE | SWG (MM ) | BWG (MM ) | INCH | GAUGE | SWG (MM) | BWG (MM) | INCH | GAUGE | SWG (MM ) | BWG (MM ) | INCH |
| 0 | 8.230 | 8.636 | 0.340 | 17 | 1.422 | 1.473 | 0.058 | 34 | 0.234 | 0.178 | 0.007 |
| 1 | 7.620 | 7.620 | 0.300 | 18 | 1.219 | 1.245 | 0.049 | 35 | 0.213 | 0.127 | 0.005 |
| 2 | 7.010 | 7.214 | 0.284 | 19 | 1.016 | 1.067 | 0.042 | 36 | 0.193 | 0.102 | 0.004 |
| 3 | 6.401 | 6.579 | 0.259 | 20 | 0.914 | 0.889 | 0.035 | 37 | 0.173 | * | 0.0068 |
| 4 | 5.893 | 6.045 | 0.238 | 21 | 0.813 | 0.813 | 0.032 | 38 | 0.152 | * | 0.0060 |
| 5 | 5.385 | 5.588 | 0.220 | 22 | 0.711 | 0.711 | 0.028 | 39 | 0.132 | * | 0.0052 |
| 6 | 4.877 | 5.156 | 0.203 | 23 | 0.610 | 0.635 | 0.025 | 40 | 0.122 | * | 0.0048 |
| 7 | 4.470 | 4.572 | 0.180 | 24 | 0.559 | 0.559 | 0.022 | 41 | 0.112 | * | 0.0044 |
| 8 | 4.064 | 4.191 | 0.165 | 25 | 0.508 | 0.508 | 0.020 | 42 | 0.102 | * | 0.0040 |
| 9 | 3.658 | 3.759 | 0.148 | 26 | 0.457 | 0.457 | 0.018 | 43 | 0.091 | * | 0.0036 |
| 10 | 3.251 | 3.404 | 0.134 | 27 | 0.417 | 0.406 | 0.016 | 44 | 0.081 | * | 0.0032 |
| 11 | 2.946 | 3.048 | 0.120 | 28 | 0.376 | 0.356 | 0.014 | 45 | 0.071 | * | 0.0028 |
| 12 | 2.642 | 2.769 | 0.109 | 29 | 0.345 | 0.330 | 0.013 | 46 | 0.061 | * | 0.0024 |
| 13 | 2.337 | 2.413 | 0.095 | 30 | 0.315 | 0.305 | 0.012 | 47 | 0.051 | * | 0.0020 |
| 14 | 2.032 | 2.108 | 0.083 | 31 | 0.295 | 0.254 | 0.010 | 48 | 0.041 | * | 0.0016 |
| 15 | 1.829 | 1.829 | 0.072 | 32 | 0.274 | 0.229 | 0.009 | 49 | 0.031 | * | 0.0012 |
| 16 | 1.626 | 1.651 | 0.065 | 33 | 0.254 | 0.203 | 0.008 | 50 | 0.025 | * | 0.0010 |



|
