| Categories | Special Purpose Trucks |
|---|---|
| Brand Name: | Dongfeng |
| Model Number: | DFL1120 |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | US$2600-US$28000 |
| Delivery Time: | 30 days after the advance payment |
| Packaging Details: | nude |
| Truck type: | water sprinkler truck |
| driving type: | 4x2 |
| Wheel number: | 6 wheels |
| water capacity: | 10m3 |
| Horsepower: | 170hp |
| wheelbase: | 5000 |
| tire: | 9.00-20 |
| tanker material: | carbon steel |
| cabin: | one and a half rows |

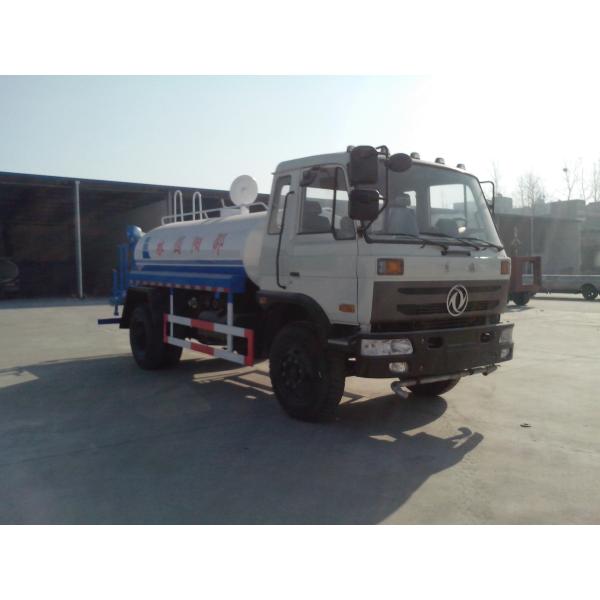

10m3 water tanker truck, 4x2 Sprinkler Truck
Specification of truck chassis:
| Drive mode | 4×2 | |
| Engine | Model | Cummins B170 33 |
| Type | 6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR | |
| Max. power(Kw/rpm) | 125/2500 | |
| Max. torque(N.m/rpm) | 550/1500 | |
| Cylinder bore ×Stroke(mm) | 102×120 | |
| Displacement(ml) | 5900 | |
| Type of fuel | Diesel | |
| Compression ratio | (17.5±0.5):1 | |
| Cab | D530 | one and a half rows |
| Capacity | 3 persons | |
| Gearbox | Type | DF6S750 |
| Max. torque(N.m) | 750 | |
| Clutch | Φ395mm | push-type diaphragm spring clutch |
| Frame H×W× T(mm) | 250×80×(7+4) | |
| Axles | Front axle(Kg) | 4500 |
| Rear axle(Kg) | 9000 | |
| No. of spring leaves | 7/9+6 | |
| Tyre | Size | 9.00-20 |
| Dimensions | Overall dimension(mm) | 7860×2500×3150 |
| Wheel base(mm) | 5000 | |
| Front/Rear tread(mm) | 1880/1800 | |
| App./Dep. angel (°) | 20/11 | |
| Performance | Max. speed(Km/h) | 90 |
| Max. gradeability(%) | 30 | |
| Min. turning diameter(m) | 17 | |
| Mass | Payload(Kg) | 12000 |
| Curb weight(Kg) | 5,880 | |
| G.V.W(Kg) | 17,880 | |
Crane parameter:
| Overall dimension of tank(mm) | 5050×2200×1200 | |
| Effective volume(m³) | 10 | |
| Tansport medium | Water | |
| Material of Tanker | Carbon steel | |
Pictures for reference:
|
