| Categories | Concrete Mixer Truck |
|---|---|
| Brand Name: | Dongfeng |
| Model Number: | EQ3120 |
| Certification: | 3C, CE, ISO |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | USD30000-40000/unit |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | 30 days after receive deposit |
| Packaging Details: | Nude packaging, Loading in roll-roll ship, or bulk ship |
| Supply Ability: | 500 units per month |

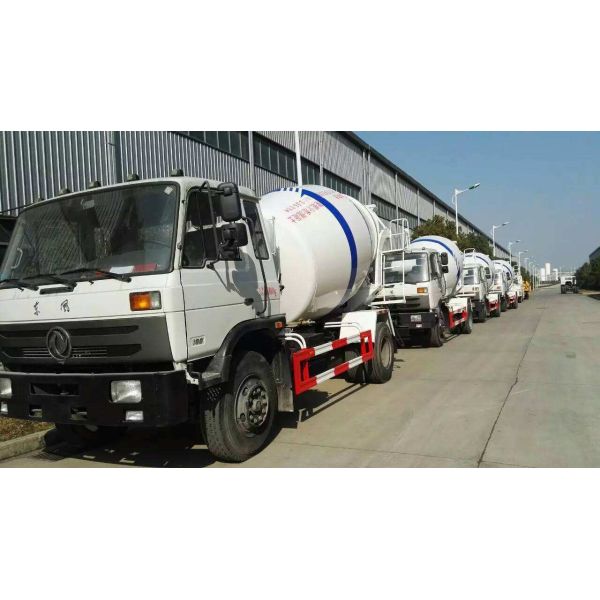

| Product name: | 4m³ Concrete Mixer Truck |
| Brand: | Dongfeng |
| Tank Capacity: | 4m³ |
| Overall dimension: | 7400x2462x2690mm |
| Fuel: | Diesel |
| Main Technology Specification | |||||||||
| Product name | Conarete Mixer Truck | Model | EQ3120GSZ3GJ | ||||||
| G.V.W(kg) | 12000 | Mixing capacity(m³) | 4 | ||||||
| Rated Weight(kg) | 4200 | Overall dimension (mm) | 8000×2490×3750 | ||||||
| Curb Weight(kg) | 7605 | Front/Rear tread(mm) | 1250/2250 | ||||||
| Cab Seats | 3 | Wheel Base(mm) | 4200+4500 | ||||||
| Appr./Depa. angel (°) | 25/13 | Max Speed(km/h) | 85 | ||||||
| Wheel (pic) | 2 | ||||||||
| Note | Mixing Tank Volume is 4m³. Tank length is 7700mm and its wheel base is 4200mm | ||||||||
| Chassis Specification | |||||||||
| Chassis Model | EQ3120GSZ3GJ | Name of the Chassis | Dump truck chassis | ||||||
| Brand | Dongfeng | Tire | 10.00-20,10.00R20 | ||||||
| Overall dimension (mm) | 7400×2462×2690 | Front/Rear tread(mm) | 1940/1860 | ||||||
| Appr./Depa. angel (°) | 25/28 | Motor Model | YC6J190-33 | ||||||
| Number of Spring Leaf | 8/10+7 | Motor Power(Hp) | 140 | ||||||
| Fuel | Diesel | Displacement(ml) | 6494 | ||||||
| Emission | GB3847-2005,GB17691-2005 | ||||||||
| Terms of payment | 40% of the total amount should be cleared by T/T ,the balance should be paid within one week before the delivery time. | ||||||||
| Warranty period | 12 months(calculating from the date the vehicle arrives at the destination port) or 30,000 kilometers, whichever comes first. | ||||||||
|
