| Categories | Fiberglass Braided Wire |
|---|---|
| Brand Name: | Mysun |
| Model Number: | UL3172 |
| Certification: | UL,cUL,CSA |
| Place of Origin: | CHINA |
| MOQ: | 5000 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 800km per day |
| Delivery Time: | 7-10 working days |
| Packaging Details: | 305m per roll |
| Rated voltage: | 600V |
| Rated temperature: | 200C |
| Insulation: | Silicone rubber |
| Jacket: | Fiberglass braiding |
| Standard: | UL758/UL1581 |
| Type: | AWM3712 |
| Application: | Use inside on appliance |
| Packing: | 305-610m/roll or 915-3050m/reel |
| Company Info. |
| Shenzhen Mysun Insulation Materials Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

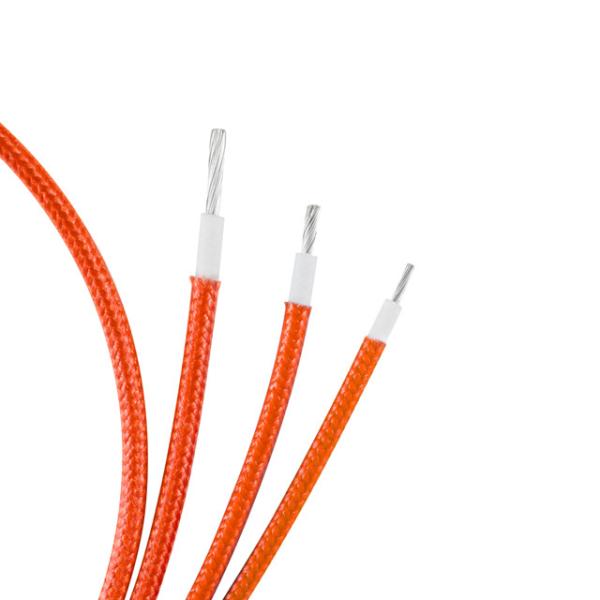

silicone rubber fiberglass braided wire UL3172
Specifications:
Nominal voltage: 600V
Temperature range: 200C
Standard: UL 758
Conductor: Tinned copper wire
Insulation: Silicone Rubber
Insulation: Fiber Glass
Application: Home appliance, coffee machine, rice cooker,
Factory selling directly strong capacity 800,000m per day
Good quality and competitive price
Product dimensions:
| Conductor | Insulation | Max.cond resistance (Ω/km) | Unit Length (m)(Ft) | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | ||
| 26 | 7/0.16 | 0.48 | 0.95 | 2.38 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 2.51 | 89.3 | ||
| 22 | 7/0.254 | 0.77 | 2.67 | 56.4 | ||
| 20 | 7/0.31 | 0.94 | 2.84 | 35.2 | ||
| 18 | 7/0.39 | 1.19 | 3.09 | 22.2 | ||
Service:
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
|
