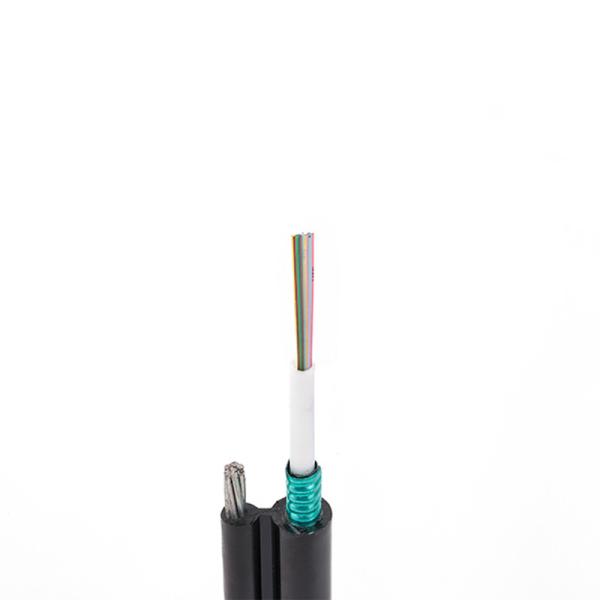

Outdoor Fiber Optical Wire Figure 8 Central Loose Tube Metallic Aerial GYXTC8Y

Fiber Optical Cable Outdoor Figure 8 Central Loose Tube Metallic Type Aerial GYXTC8Y

Product Description:

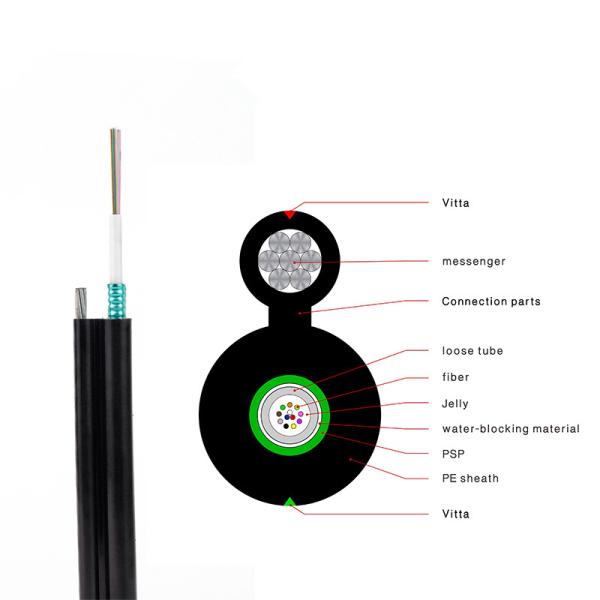

The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

Technical characteristics:

Excellent tensile strength for such small diameter

Low dispersion and attenuation

Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental

Small cable diameter, light cable weight, easily to install

Recommended span length 50m for 1.6 steel wire messenger

Application:

1. Adopted to Outdoor distribution.
2. Suitable for aerial duct and buried method.
3. Long distance and local area network communication.

Used for Rural communication, local trunk line and UCATV & computer networks system

Method of installation:

Direct burial preferred, other methods of installation are also available.

Mechanical & Environmental Characteristics

Fiber Colour Code:

01- Blue 04- Brown 07- Red 10- Purple

02- Orange 05- Grey 08- Black 11- Pink

03- Green 06- White 09- Yellow 12- Aqua

The colour arrangement of optical fiber is specified in the fiber colour code

S: short term; L: long term; L.T: loose tube

Crush load: N/100mm; D: cable diameter

GY: outdoor cable;T: jelly compound; C8: Figure 8 cable

Y: PE outer sheath
