| Categories | Special Steel Pipe |
|---|---|
| Brand Name: | TORICH |
| Model Number: | GB/T3094 |
| Certification: | ISO9001, ISO14001, TS16949 |
| Place of Origin: | ZHEJIANG, CHINA |
| MOQ: | 5Tons |
| Price: | negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000Tons per Year |
| Delivery Time: | 30-45 work days |
| Packaging Details: | Special Shaped Steel Tubes are packed in wooden boxes or hexagonal bundles in seaworthy packing. |
| Keyword: | Special Shaped Steel Tubes |
| Material: | 10# 20# 45# Q195 Q215 Q235 Q345 |
| OD: | 20-1200mm |
| WT: | 2-200mm |
| Length: | 2000-12000mm |
| Application: | Structural, Tool And Machinery Parts |
| Company Info. |
| TORICH INTERNATIONAL LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

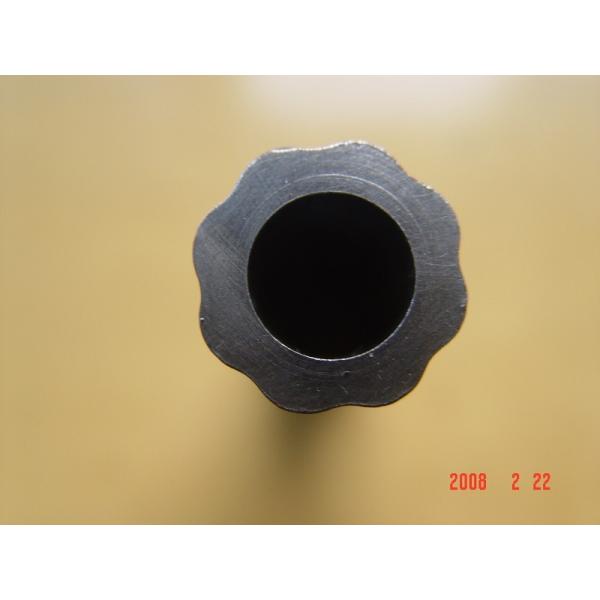

Key Word | Cold Drawn Special Shaped Steel Tubes |
Material | 10# 20# 45# Q195 Q215 Q235 Q345 |
Size | OD: 4-1200mm WT: 0.3-200mm Length: 2000-9000mm |
Surface | With Anti Rust Protection |
Production Method | Cold Drawn |
Application | Used in structural parts, tool and machinery parts |
Tolerance
According to the following tables, or according to customers’
request.
Tolerance for the width | |||
Size (mm) | Tolerance (mm) | ||
General | High Grade | ||
Width A/B | ≤30 | ±0.30 | ±0.20 |
＞30-50 | ±0.40 | ±0.30 | |
＞50-75 | ±0.80%A ±0.80%B | ±0.70%A ±0.70%B | |
＞75 | ±1%A ±1%B | ±0.80%A ±0.80%B | |
Tolerance for wall thickness | |||
Size (mm) | Tolerance (mm) | ||
General | High Grade | ||
Width A/B | ≤1.0 | ±0.18 | ±0.12 |
＞1.0-3.0 | ＋15% WT －10% WT | ＋12.5% WT －10% WT | |
＞3.0 | ＋12.5% WT －10% WT | ±10% WT | |
Mechanical Property
Steel Grade | Tensile Strength MPa | Yeild Strength MPa | Elongation % |
No less than | |||
10 | 335 | 205 | 24 |
20 | 390 | 245 | 20 |
35 | 510 | 305 | 17 |
45 | 590 | 335 | 14 |
Q195 | 315 | 195 | 22 |
Q215 | 335 | 215 | 22 |
Q235 | 375 | 235 | 20 |
Q295 | 430 | 295 | 22 |
Q345 | 510 | 345 | 21 |
Q390 | 530 | 390 | 18 |
Product Show
QUALITY CONTROL:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring
Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield
Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking
100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a
perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate
longitudinal and transversal defects.
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and
solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is
30-60 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples of carbon seamless steel tube ? is it
free or extra ?
A: Yes, we could offer the sample for free charge but need pay the
cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
