| Categories | RO Water Treatment Plant |
|---|---|
| Brand Name: | CHUNKE |
| Model Number: | CK-RO |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | Discussible |
| Payment Terms: | TT |
| Supply Ability: | 1000 unit per month |
| Delivery Time: | 7-15 days |
| Packaging Details: | wooden box package |
| Product name: | Domestic 1T Capacity Pure Water Making Machine RO Plant Drinking Water Bottle |
| Type: | RO |
| Dimensions: | Depands on the capacity |
| Voltage: | 380V |
| Pump: | CNP |
| Recovery rate: | ≥50%-60% |
| Organic removal rate:: | ≥98% |
| Capacity: | Make to order |
| Material: | SUS 304 |
Domestic 1T Capacity Pure Water Making Machine RO Plant Drinking Water Bottle
| NO. | Device Description | Origin / brand | Quantity |
| 1 | Raw water pump(CHL2-40 SS304 ) | CNP | 1 Set |
| A. Flow: 2.0m3/H Head: 29m K = 0.55kw | |||
| B. Including: inlet valve, return valve, pipe fittings and so on | |||
| 2 | Sand filter CK-1465/Ф350X1650MM | CHUNKE | 1 Set |
| A. FRP tank | CHUNKE | ||
| B. Automatic Valve F71B1 | Runixn | 1 Set | |
| C. Top&bottom water distributor and center pipe | 1 Set | ||
| 3 | Carbon filter CK-1465/Ф350X1650MM | CHUNKE | 1 Set |
| A. FRP tank | CHUNKE | ||
| B. Automatic Valve F71B1 | Runixn | 1 Set | |
| C. Top&bottom water distributor and center pipe | 1 Set | ||
| 4 | 5μm Cartridge filter | CHUNKE | 1 Set |
| A. Model: Ф195X500X5core material:ABS | CHUNKE | 1 Set | |
| B. 20″×5μm PP filters | China | 5pcs | |
| 5 | High pressure pump CDL2S-13 | CNP | 1 Set |
| A. Flow:2.0 m3/h Head:112m | |||
| B. Material:SS304 K=1.5KW | |||
| 6 | Reverse osmosis water production: 1m3/h, desalination rate:96～99%, System water utilization: ≥ 60% | 1 Set | |
| A. Membrane housing 4040-1core SS304 | CHUNKE | 4pcs | |
| B. Membrane element 4040 | Vontron | 4pcs | |
| C. 304 Stainless steel frame | 1 Set | ||
| D. Water inlet solenoid valve | 1PC | ||
| E. Strong water solenoid valve | 1 Set | ||
| F. High pressure water inlet control valve | 1PC | ||
| G. Concentrated water flow control valve | 1 Set | ||
| 7 | Pipe fittings, valves U-PVC | China | 1 Set |
| 8 | Electronic control system | CHUNKE | 1 Set |
| Main cotrol box:PC programmable automatic control, France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller, time controller. | |||
| 9 | Filter Media | China | 1 Set |
| A. Quartz sand | China | 150KG | |
| B. Activated carbon | China | 50KG | |
| 10 | Pressure gauges | China | 1 Set |
| A. Reverse osmosis pressure gauge 0～25kgf/ cm2 | China | 2pcs | |
| B. High pressure pump low pressure protection switch | China | 1PC | |
| C. System pressure gauge 0～6kgf/ cm2 | China | 2pcs | |
| D. Pure water conductivity meter | China | 1 Set | |
| E. PC Program controller | China | 1 Set | |
| 11 | Flowmeter Panel type(10GPM) | China | |
| A. One stage Pure water flowmeter(Panel type 10GPM) | China | 1 Set | |
| B. One stage Strong water flowmeter(Panel type 10GPM) | China | 1 Set | |

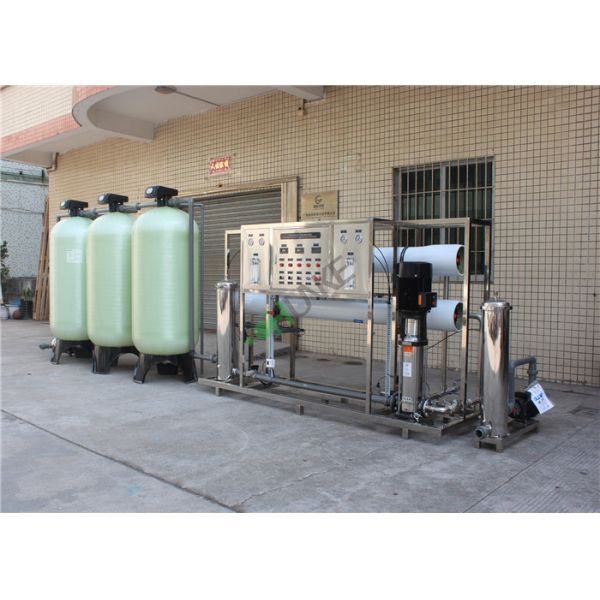

Detail Pictures :
|
