| Categories | Industrial Touch Screen Monitor |
|---|---|
| Brand Name: | ITD/OEM |
| Model Number: | ITD24OFT5K1 |
| Certification: | CE, FCC, RoHS |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | TBA |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000PCS/Month |
| Delivery Time: | 5-7 Business Days |
| Packaging Details: | 1-5pcs/CTN, Safe, Firm |
| Resolution: | 1920x1080 |
| Operating temperature: | 0-50 C |
| Active area: | 527.04(H) x 296.46(V) mm |
| Viewing angle: | 89/89/89/89 |
| Input signals: | VGA,DVI,HDMI |
| Brightness: | 300 nits |
| Backlight: | LED with 50000 hours' lifetime |
| Company Info. |
| Shenzhen ITD Display Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
1080P full HD 24" pcap touchscreen monitor HMI interface Flat Panel Monitor industrial lcd display
SPECIFICATIONS
| Model | ITD101OFT5K1 | ITD13OFT5K1 | ITD15OFT5K1 | ITD156OFT5K1 | ITD17OFT5K1 | ||
| Size | 10.1” | 13.3” | 15” | 15.6” | 17” | ||
| Active Area | 216.81(H)x 135.5(V) | 293.42(W) × 164.97(H) | 304.128(H)x 228.096(V) | 246.0(H) x 184.5(V) | 337.920(H) x 270.336(V) | ||
| Contrast Ratio | 800:1 | 800:1 | 700:1 | 700:1 | 1000:1 | ||
| Resolution | 1920 x 1200 | 1920 x 1080 | 1024 x 768 | 1366 x 768 or 1920 x 1080 | 1280 x 1024 | ||
| Brightness | 300nits | 300nits | 250nits | 300nits | 250nits | ||
| Viewing Angles | 80/80/80/80 | 80/80/80/80 | 80/80/60/70 | 45/45/15/35 or 89/89/89/89 | 85/85/80/80 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| Model | ITD173OFT5K1 | ITD18OFT5K1 | ITD19OFT5K1 | ITD21OFT5K1 | ITD24OFT5K1 | ||
| Size | 17.3” | 18.5” | 19” | 21.5” | 24” | ||
| Active Area | 381.89(H) x 214.81(V) | 409.8(H) x 230.4(V) | 376.32(H) x 301.06(V) | 476.64(H) x 248.25(V) | 527.04(H) x 296.46(V) | ||
| Contrast Ratio | 400:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | ||
| Resolution | 1920 x 1080 | 1366 x 768 | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 | ||
| Brightness | 300nits | 250nits | 250nits | 250nits | 300nits | ||
| Viewing Angles | 85/85/85/85 | 85/85/80/80 | 85/85/80/80 | 85/85/80/80 or 89/89/89/89 | 89/89/89/89 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| Model | ITD27OFT5K1 | ITD32OFT5K1 | ITD42OFT5K1 | ITD55OFT5K1 | ITD65OFT5K1 | ||
| Size | 27” | 32” | 42”/43” | 55” | 65” | ||
| Active Area | 597.6(H)x 336.15(V) | 698.4(H) x 392.85(V) | 930.24(H) x 523.26(V) | 1213.6(H) x 684.4(V) | 1428.48(W) × 803.52(H) | ||
| Contrast Ratio | 1000:1 | 1000:1 | 1200:1 | 3000:1 | 4000:1 | ||
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | ||
| Brightness | 300nits | 350nits | 400nits | 400nits | 400nits | ||
| Viewing Angles | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | ||
| Backlight | LED | LED | LED | LED | LED | ||
| SPECIFICATION | |||||||
| Inputs | VGA, DVI, HDMI | ||||||
| Convenient Features | Backlight Adjustment, Plug & Play, OSD Multi-Languages | ||||||
| Power Source | Internal Power Supply with Universal/Auto-Sensing, AC100~240V for 27”~65” External Power Supply with Universal/Auto-Sensing, DC 12V for 10.1”~24” | ||||||
| Power Consumption | Operation/Power Saving | TBA | |||||
| Touch Panel | Projected Capacitive Touch Panel with 10 Multi Touch Points | ||||||
| USB/RS232 port | |||||||
| 7H Surface Hardness, Vandal Proof | |||||||
| Plug and Play in Windows XP/7/8/10; Linux, Mac, Android with driver | |||||||
| Key Control | Power on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left) | ||||||
| Operating Temperature | 0℃-50℃ for 24”~65”; -1 0℃-60℃ for 10.1”~21.5” | ||||||
| Storage Temperature | -20℃-70℃ | ||||||
| Relatively Operating Humidity | 0% - 90% (non condensing) | ||||||
| Relatively Storage Humidity | 10% - 95% | ||||||
| Accessories | Power Supply, VGA/DVI/HDMI cable, USB Cable, Mounting Brackets(optional) | ||||||
| Order Information | Flat Panel Monitor with tempered glass/ITD**OFG1K1 | ||||||

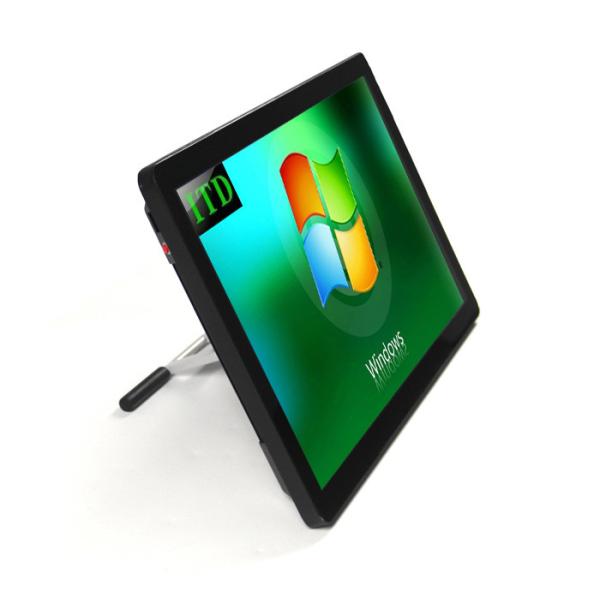

Product image:




|
