ZF8118 Steering Gear Box 25 Ton Dump Truck , U Shape Heavy Duty Tipper Trucks

Categories Heavy Duty Dump Truck
Brand Name: HOWO A7
Model Number: ZZ3257N3647A
Certification: ISO/CCC
Place of Origin: CHINA
MOQ: 1 UNIT
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 500 units/month
Delivery Time: 30-45 work days
Packaging Details: Nude
Overall dimension: 8214x2496x3450 mm
Cargo body size: 5600x2300x1600 mm
Steering: Steering ZF8118 Steering Gear Box
Wheel base: 3625+1350mm
Thickness of box: Side 6mm, bottom 8mm
Lifting system: Middle lifting or fornt lift
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

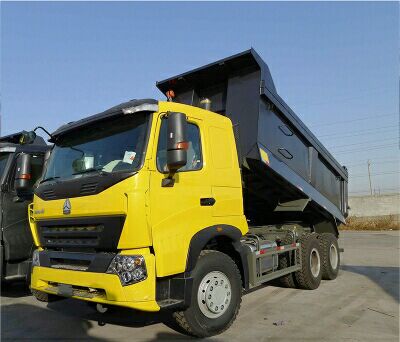

ZF8118 Steering Gear Box 25 Ton Dump Truck , U Shape Heavy Duty Tipper Trucks

ZZ3257N3647A HOWO A7 Euro 2 Black color U-type dump truck 371HP with HW76 cab


Description:


HOWO brand Dump Truck is produced by SINOTRUK.The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.The engine adopt 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.


Packing:


Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.


Competitive Advantage:


1. Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel

2. EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.

3. Adopting full hydraulic transmission, it can bring the power of engine into full play amply.

4. Technique support and training.

5. Customization service, as per your request, we will customize our production for you


TypeHOWO A7 dump truck
ModelZZ3257N3647A
Overall dimension8214x2496x3450 mm
Cargo body size5600x2300x1600 mm
Cargo thicknessBottom:8mm, Side:6mm
Lift type of CarriageMiddle lifting or fornt lift
Loading weight25 ton
Wheel base3625+1350mm
Drive model6x4
EmissionERUO2
Horsepower371HP
Front axleHF9
Rear axleHC16
Tyre12.00R20
Oil tank400L
CabHW76 cab, single sleeping, with air-condition), all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
Colorblack
SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Brake system

Service brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Electrics

Operating voltage:24V,negative grounded

24V,7.5KW.Starter:24V,7.5 Kw

28V,1500W.Alternator:3-phase,28V,1500 W

2x12V,165Ah.Batteries:2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light
