Large 6×4 Heavy Duty Dump Truck With 400L Fuel Tanker 24V Electric System

Categories Heavy Duty Dump Truck
Brand Name: HOWO A7
Model Number: ZZ3257N3847N
Certification: ISO/CCC
Place of Origin: JINAN SHANDONG
MOQ: 1 UNIT
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 1000 units/month
Delivery Time: 30-45 work days
Packaging Details: Nude
Model: ZZ3257N3847N
Cab: HOWO A7 Lengthen cab
Wheelbase: 3815+1350mm
Color and LOGO: Optional
Cubage: 18/20m3
Displacement: 9.726L
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Large 6×4 Heavy Duty Dump Truck With 400L Fuel Tanker 24V Electric System

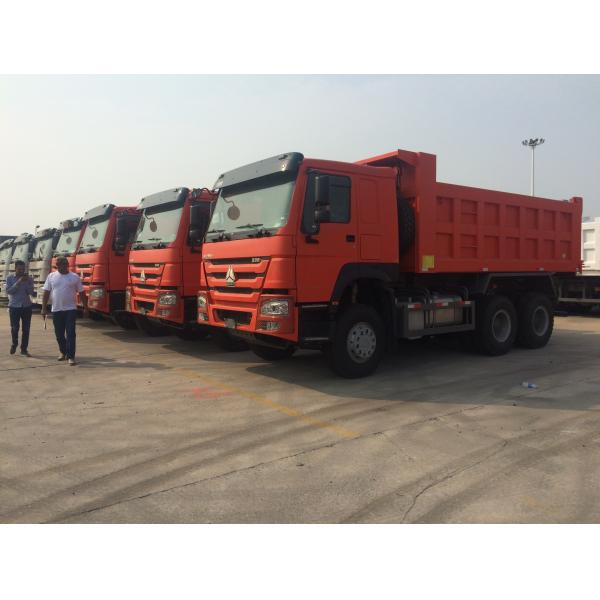

HOWO A7 336 HP 6×4 Dump Truck with 400L Fuel tanker and HW19710 transmission


Description:

HOWO A7 Dump truck adopt 336 HP WD615 series of 6-cylinder in line, 4-stroke, water cooled, turbo-charged inter-cooled,direct injection engine.Have good power economy.
And the brake system have huge advantages.The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 6mm, bottom 8mm.


Packing:


Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.
We have professional forwarding partners.

Competitive Advantage:


1. Good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into
full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance
2. High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.
3. The best quality standard guaranteed
4. Product upgrading and expansion of species
5. Good quality with competitive prices.
6. Flexible and convenient logistic service.
7. Excellent and high-quality control
8. Long lasting working life time.
9. Sufficient storage.


Description:


ModelZZ3257N3847N
CabHOWO A7 Lengthen cab, single bunk, new type seat, adjustable steering wheel ,EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner
Engine(Hp)336
Power(Kw)247
Wheelbase3815+1350mm
Front/Rear Suspension1500/1870
SteeringZF8118 steering
Approach/departure angle20/28
Wheels & tire12.00R20
Tire number10+1
Cargo Dimensions(mm)5600×2300×1500
Cubage (m3)18/20
Steel thicknessSide 6 ,Bottom 8
RHD or LHDoptional
Overall Dimensions(mm)8400×2500×3450
Curb weight (Kg)9800
EngineModelWD615.69
Horsepower336
Maximum output Kw247
Maximum torque N.m1350
Type6cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Displacement9.726L
Sinotruk brand, Euro 2
Driving passenger2,3
TransmissionHW19710,10 forwards,2 reverse
Front AxleHF 9
Rear AxleHC 16
Brake System

air brake

exhaust brake

Color and LOGOcustomized
Electric system24V
