10 Wheels Mining Dump Truck With WD615.69 Engine And 12500kg Gross Weight

Categories Heavy Duty Dump Truck
Brand Name: SINOTRUK
Model Number: ZZ3257N3647A
Certification: CCC/ISO9001
Place of Origin: JINAN CITY OF CHINA
MOQ: 1 UNIT
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 500 units/month
Delivery Time: 35 work days
Packaging Details: Nude
Engine Type:: WD615.69(371hp)
Front Axle Payload(kg):: 9000kg
Dimensions (L x W x H) (mm):: 8545x2496x3170mm
Gross Vehicle Weight:: 12500kg
Model Number:: ZZ3257N3647A
Capacity (Load):: 31 - 40t
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

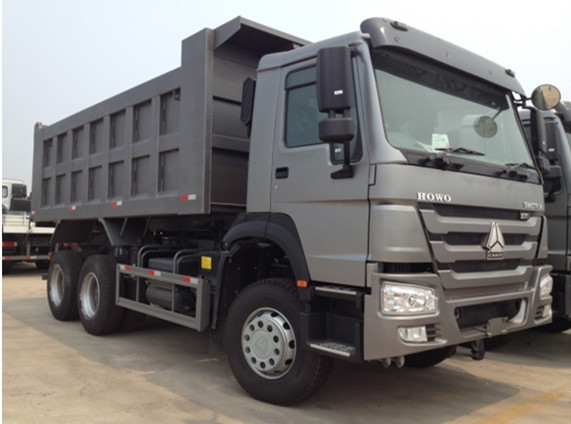

10 Wheels Mining Dump Truck With WD615.69 Engine And 12500kg Gross Weight

SINOTRUK HOWO 10 wheels WD615.69 Engine and 12500kg gross weight mining dump truck


Product description:


Professional Dump Truck is Based on STR technology ,which is from Austria,the truck owns Four points suspension HOWO Cabin with spring and air shock absorber, VDO panel.Utility Dump Truck use high power 371HP WD615 STR engine,hp range: 290hp - 420 hp as you request. Truck’ Front axle obey HF9 STEYR technology. The rear driving axle is made from HC 16ton STEYR technology , double reduction hub reductor type. The Dump Truck is ZF8198 left Steering, driver can sit at the left hand side. The loading capacity of dump truck is over 30 tons. It is Designed for tough road condition so that it is type of developing country especially African countries. We can supply Excellent spare parts for replacement.


Packing:


Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.


Competition advantages:


(1) Products Quality Certification SGS CCC ISO
(2) Customized products available with us
(3) Regularly callback to know the vehicle's working status.

(4) The overseas engineers are always ready to deal with unexpected needs.

(5)We will reply you for your inquiry in 24 hours.
(6)After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.


Specifications
Model30 ton payload capacity dump truck
Traction6X4
Power371HP, 336HP
Weight Parameter
Complete Vehicle Kerb Mass(kg)12250
Maximum authorized total mass (kg)30000
Dimension Parameter
External Dimensions(mm)8545X2496X 3170
wheelbase(mm)3625+1350
Internal cargo Sizes6000X2300X1500
Recommended Configuration
Engine TypeWD615.69
Rated power(kW)/Rev(r/min)247/2200
Transmission

Manual operation,10 forward & 2reverse with

no synchronizer

Front Axle Payload(kg)9000
Rear Axle Payload(kg)16000x2
Fuel Tank(L)300
Track(mm)2022+1830
Front overhang/rear overhang(mm)1500/2295
Tire12.00-20
Cabin

Standard cab with One sleeper, with 4-point support

fully floating suspension and shock absorbers,

with air conditioner

Electrics

Operating voltage:24V,negative grounded

Starter:24V,7.5 Kw

Alternator:3-phase,28V,1500 W

Batteries:2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light
