| Categories | Boiler Manifold Headers |
|---|---|
| Brand Name: | HDB |
| Model Number: | Boiler Manifold Header |
| Certification: | ISO9001 , SGS , TUV , ASME , EN |
| Place of Origin: | Jiangsu , China |
| MOQ: | 1 Set |
| Payment Terms: | L/C, T/T |
| Application: | Utility/Power Plant |
| Working Temperature: | 445 Degree |
| Type: | Ultra Super Critical |
| Material: | 15CrMoG / 12Cr1MoVG |
| Color: | Customized |
| Packing: | Iron Frame Package |
| Company Info. |
| Zhangjiagang HuaDong Boiler Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

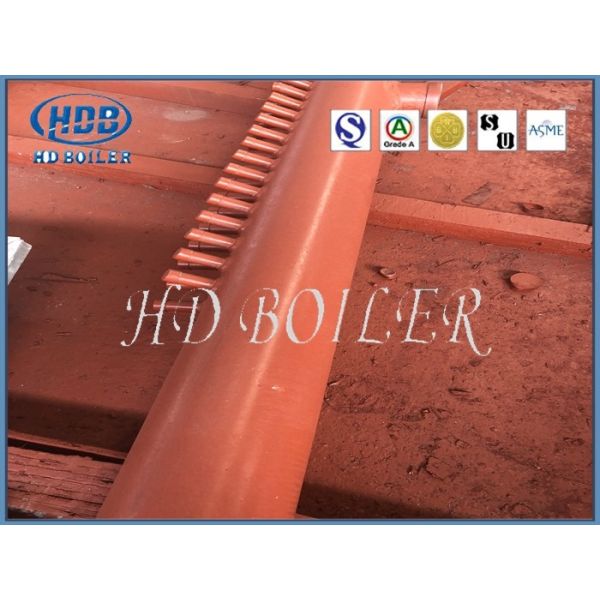

European Standard Boiler Manifold Headers , Steam Boiler Header Piping
Description
In order to improve the boiler efficiency, boilers are gradually developed into tubular boilers to increase heat transfer area. The pot water flows from the pot barrel to the lower box through the downward tube, and is distributed to each tube bundle by the box body. The water in these tube bundles continuously absorbs heat energy and collects into the upper box body and then flows back into the pot barrel. We call the upper and lower box body headers. Header is an important part of the boiler, which is divided into upper header and lower header.
The main function is to collet working fluids or redistribute working fluids to other pipelines through headers. That is, to collect, mix and distribute working fluids, so as to ensure the working fluids are evenly distributed and heated. Lower header, also called coke-proof box, is located on both sides of the grate and directly contacts with the burning coal seam. Its function is to cool the coking slag without bonding with the side wall.
| 1 | Headers form an important part of all types of boilers. |
| 2 | Steam from the generating tubes is collected in headers which are therefore always under pressure. |
| 3 | This pressure may vary from 300 psi to 2000 psi. Since headers are always under pressure, the utmost care is taken by us while fabricating them. |
| 4 | Depending on the generating capacity of the boiler the header sizes fabricated by us vary from 100 mm to 600 mm NB. The stubs of various sizes are very carefully welded to the main body of the header to provide the desired openings from the header. |
Details
The pressures and temperatures that headers have to withstand
depend on the component to which they are connected. A header
connected to an economizer or to water wall panels is subject to
less severe requirements on the material than a header connected to
superheaters or reheaters.
Depending on the temperature and pressure of headers, Vallourec
supplies tubes in carbon steel to high-alloy ferritic steels such
as T/P91 or T/P92, with sizes ranging from 88.9 mm to 406.4 mm.
Classification
| Material | Carbon steel,Alloy steel,Stainless steel. |
| Length | According to costumes requirements. |
| Temperature Range | 300℃~1500℃ |
| Diameter(OD) | 76mm~914mm |
Function
Header is a pipe fittings for mixing working substances of boilers and ensuring uniform heating of working substances. Usually the furnace wall of industrial boilers is composed of rows of tubes(water-cooled walls), but the size of boilers is huge, and the structure is complex. It can not guarantee that the working substances in all tubes absorb the same heat. There are many differences in heat absorption in different parts. Installing headers can let the working substance in each tube converge here, and distribute to the next level of each pipe so as to reduce the thermal deviation so that the heat absorption, flow of the working fluid and cooling and thermal efficiency of the boiler are optimized and improved; in addition, the size, number and layout of the pipes in the upper, middle and lower parts of the boiler are different. The header is responsible for connecting each section to ensure smooth flow of working substances.
