Pre-hardened P20 1.2311 PDS-3 plastic mould steel with round bar flat bar plate

Categories Plastic Mold Steel
Brand Name: Baosteel
Model Number: p20 /1.2311 /PDS-3
Certification: IS0/CNAS/IAF/XQC
Place of Origin: CN
MOQ: 3tons
Price: 800-1000USD/MT
Supply Ability: 1000MT/month
Delivery Time: 15-20days
Packaging Details: nake/wooden case/negotiation
Product name: plastic mould steel
Delivery condition: black surface/hot rolled/pre-hardened
Hardness: 28-32HRC
Application: mould/machine parts
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

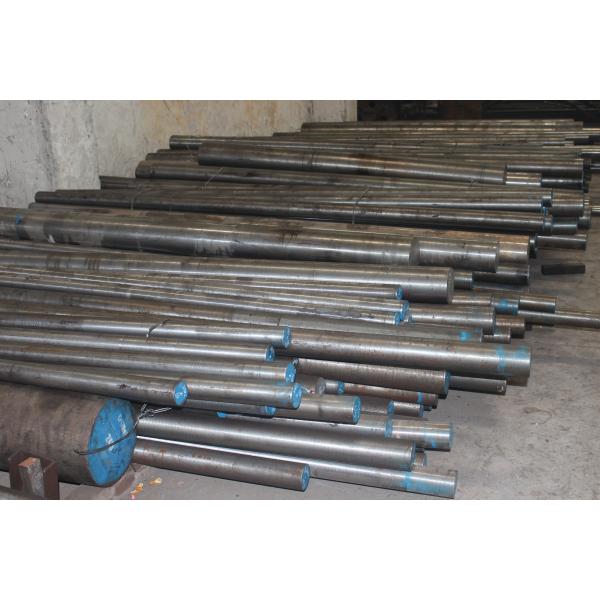

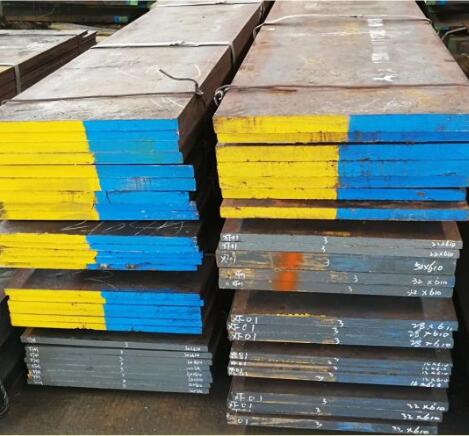

Pre-hardened P20 1.2311 PDS-3 plastic mould steel with round bar flat bar plate

Pre-hardened P20 1.2311 PDS-3 plastic mould steel with round bar flat bar plate

Product Introduction
1.2311 steel is a general-purpose pre-hardened plastic mold steel, which comes in rod, flat bar , block and plate, all sized to order with any quantity widely used in various of industries.


Grades
ChineseAmericanGermanJapaneseSwedish
GBAISI/ASTMDINJISASSAB
3Cr2MoP201.2311PDS-3618
Chemical Analysis
GradesCSiMnPSMoNiCr
1.23110.37-0.42≤0.401.40-1.60/≤0.0050.15-0.250.41.80-2.10
P20/3Cr2Mo0.28-0.400.20-0.800.60-1.00≤0.03≤0.030.30-0.550.05-0.11.40-2.00
Delivery Condition
Black surface, hot rolled, pre-hardened, 28-32HRC, cut 2/4 sides
Available Dimensions
Steel PlateThickness1.2311: 10-250mm
P20: 220-460mm
Width1.2311: 2200mm
P20: 1600mm
Length1.2311: 4000-10000mm
P20: 4000-8000mm
Round barDiameter12-120mm
Length4000-6000mm
BlockThickness250-800mm
Width800-1600mm
Length2000-6000mm
RemarksLong steel:Thickness 10mm,width 510mm,Length4000-6000mm
Heat Treatment
QuenchingTempering
Heating Temperature/℃CoolingHardness/HRCHeating Temperature/℃CoolingHardness/HRC
850-800Oil50-52580-640Air28-36
Characteristics
1. Good machining performance
2. Excellent polishability
3. Uniform hardness
4. Higher heat hardness
5. High wear resistance
6. High hardenability
Application
1. Thermoplastic plastic injection mold, extrusion mold.
2. Used in die casting molds of zinc, magnesium, aluminum and their alloys
3. Thermoplastic blow molding dies.
4 Heavy load main parts of the mold.
5. Cold structural parts.
6. Commonly used in the manufacture of TV cases, washing machines, refrigerator inner casings, buckets, etc.
7. Automobile bumper mould
8. Suitable for plastic molds and formwork for TV front case, telephone, water dispenser, vacuum cleaner, etc.
