| Categories | Furniture Testing Equipment |
|---|---|
| Brand Name: | SKYLINE |
| Model Number: | SL-T25 |
| Certification: | Calibration certificate |
| Place of Origin: | CHINA |
| MOQ: | 1 unit |
| Price: | negoitable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit |
| Delivery Time: | 35 work days |
| Packaging Details: | Plywood case |
| SKYLINE: | Drawer Slides Durability Cycle Tester |
| Slides size: | 140-500mm |
| Impactor weight: | Max.50kg |
| Brand: | SKYLINE |
| Test speed: | 0.25m/s ( adjustable) |
| Warranty: | 18 months |
| Company Info. |
| SKYLINE INSTRUMENTS CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

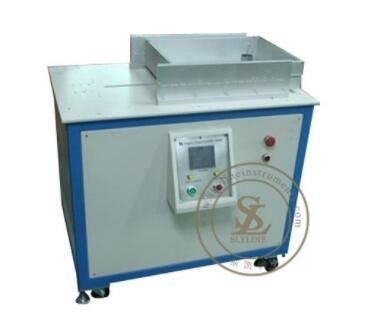

PLC Control Furniture Testing Equipment Drawer Slides Durability Cycle Tester
Product information
Drawer Slides Durability Tester is designed to test the slides of
drawers, desk, tables, cabinets and wardrobe.
Capable of cycling time control, constant travel control, frequency
control, stroke control
Technical parameter
a.Compressed air - 6kg/cm².
b.AC motor -to control the height from 250-1000mm.
c.Pneumatic cylinder - double acting cylinder with magnetic switch and maximum stroke 600mm(adjustable).The cylinder shall have the fixture to hold any type of drawer handle to open/close the drawer without exerting force on the drawer system.
d.Control Panel/consoleconsists of:
-The EPC will register every stroke of the cylinder up to six digits.
-Will stop the test operation to the preset stroke.
-EPC will display the number of stroke achieved during the test.
-EPC also able to stroke the number of cycles when the power interruption take place and able to dispaly the actual reading and continues counting when operation resumes.
-The single shall maintain until the counter is reset.
Note:One stroke is counted as one cycles.
i.Extendible element cycle tests (ANSI/BIFMA X5.9-2012, clause 15)
ii.Extendible element cycle tests (ANSI/BIFMA X5.5-2014, clause 10)
iii.Durability of extension elements (BS EN 16122:2012, clause 7.5.3)
Specifications
1.Slides Size:140-500mm/
2.Manual operation/
3.Drawer reciprocating power: 120w geared motor/
4.Control system PLC control, touch screen display. Encoder calculating stroke/
5.Test speed:0.25m/s ( adjustable)/
6.Drawer cycle journey :close-open 140-500mm (can be specified by customer)
|
