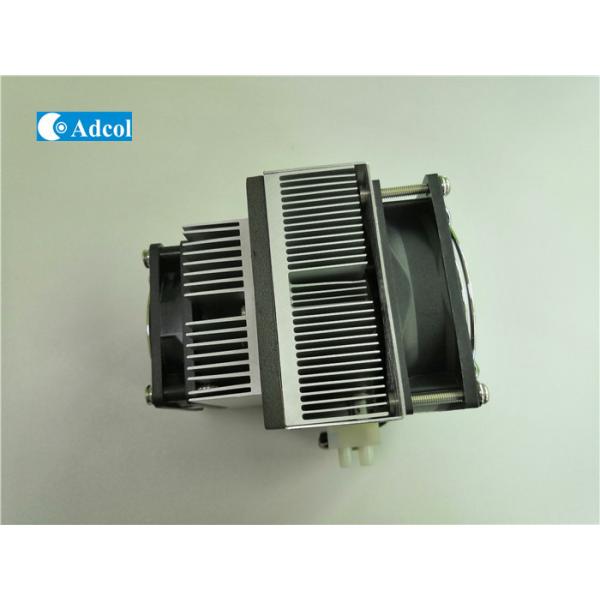

Peltier Thermoelectric Air Conditioner Peltier Cooler For Outdoor Cabinet ATA025 12VDC

Thermoelectric air conditioner is designed for electronic cabinets and environmental chambers. It can maintain ambient temperatures while removing up to 25W. This model is available in 12VDC configurations. This air conditioner is virtually maintenance-free, with no filters ambient to change, and it can be mounted in any orientation, offering design flexibility with solid-state reliability.

Features
25W capacity rated at ΔT = 0ºC,Tambient = 30°C
Refrigerant free - environmentally friendly
Wide operating temperature range of –20°C to +60°C
–20°C to +60°C Shift between heating and cooling without using a heater
educed noise and vibration with no moving parts

Application
Outdoor enclosures
Outdoor/Indoor Kiosks and display
Battery Cabinet
Food/Consumer Refrigerator

P/N: ATA025-12-00
Cooling Method : Air Cool
Radiating method : Force Air
Ambient temperature/humidity: -10 to 55°C
Cooling Capacity : 25W
Input Power : 95W
Hot/Cold side fan Current : 0.2/0.1A
TEM Nominal/Startup Current : 2.5/3.0A
Nominal/Max Voltage : 12/15 VDC

Overall dimension : 100mm x 80mm x 126mm ref

Weight : 0.6Kg
