| Categories | PV Surge Arrester |
|---|---|
| Brand Name: | BRITEC |
| Model Number: | BRPV3-600T1 / BRPV3-1000T1 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 200 piece / pieces |
| Payment Terms: | T/T |
| Supply Ability: | 50000 pieces per month |
| Delivery Time: | 15-30 days after payment |
| Packaging Details: | EXPORT PACKING |
| TU: | -40℃…+80℃ |
| Material: | Thermoplastic UL94-V0 |
| Ucpv: | 600V / 1000V |
| Limp: | 12.5kA |
| In: | 20kA |
| Imax: | 50kA |
| tA: | ≤25ns |
| Model No.: | BRPV3 T1 |
| Item: | PV surge arrester |
| Class: | Type 1+2 |
| Company Info. |
| Britec Electric Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

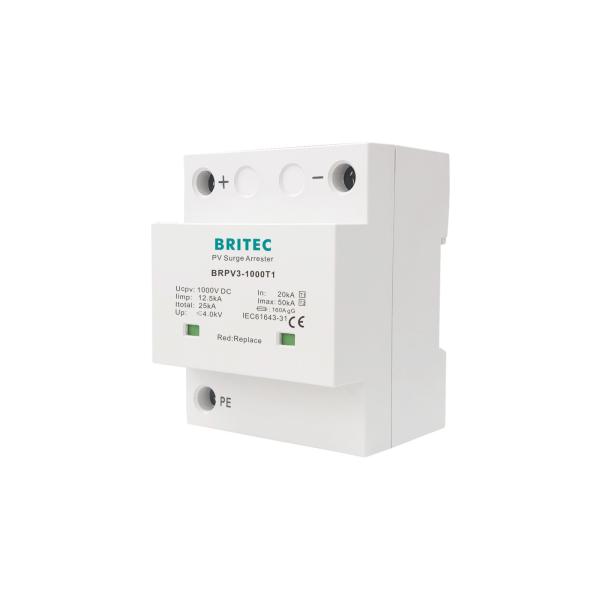

BRPV3 T1 Lightning PV Surge Arrester 10 / 350 Us Lightning Impulse
Current
BRPV3 T1 Lightning PV Surge Arrester Product Details:
| BRPV3-600T1 | BRPV3-1000T1 | |
| SPD classification according to EN61643-31 | Type1+Type2 | Type1+Type2 |
| SPD classification according to IEC61643-31 | Class I+Class II | Class I+Class II |
| Max.continuous operating d.c.voltage Ucpv | 600V | 1000V |
| Lightning impulse current (10/350us) limp | 12.5kA | 12.5kA |
| Nominal discharge current(8/20us) In | 20kA | 20kA |
| Max. discharge current(8/20us) Imax | 50kA | 50kA |
| Voltage protection level [(DC+/DC-)→PE] Up | ≤2.6kV | ≤4.0kV |
| Response time tA | ≤25ns | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ | |
| Operating state/ fault indication | green / red | green / red |
| Cross-section area(Min.) | 4mm² | 4mm² |
| Cross-section area(Max.) | 35mm² | 35mm² |
| For mounting on | 35mm Din rail | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 | |
| Degree of protection | IP20 | IP20 |
| Order Code | B8001 | B8002 |
| Order Code(With remote signal) | B8003 | B8004 |
Dimension:
Britec owns advanced test equipments and product line, perfect
management, professional technical personnel and well-trained workers. Britec team keep developing
newest product for our customer, that is why technical level of our products can be reached to the
leading level, we also can help customer OEM/ODM.
Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
Britec have strong sales team, our surge protection device are sold
to many countries around the world. Europe and Asia are our main market. We would like to cooperate
with global customers and help you success in your market.
Britec offer full range of SPD products which has CE, RoHS,TUV,
SEMKO, CB certification.The company implements ISO9001 quality mangement system.
Britec have developed a wide range of products mainly covering
requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and
data , etc. All these products have been widely applied in electronic system, computer network and
security system, protection for power industry, petroleum chemical industry and national defense
industry.
01
We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.
02
Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year. Qulaity recognized :cooperate with transnational company.
03
Inner box and out carton are made as per international standard. We can make packaging according to customer's need.
04
Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.
05
2 years.
06
Of course,support sample order, especially for new customers under certain condition.
07
7-10 days.
08
Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory..
|
