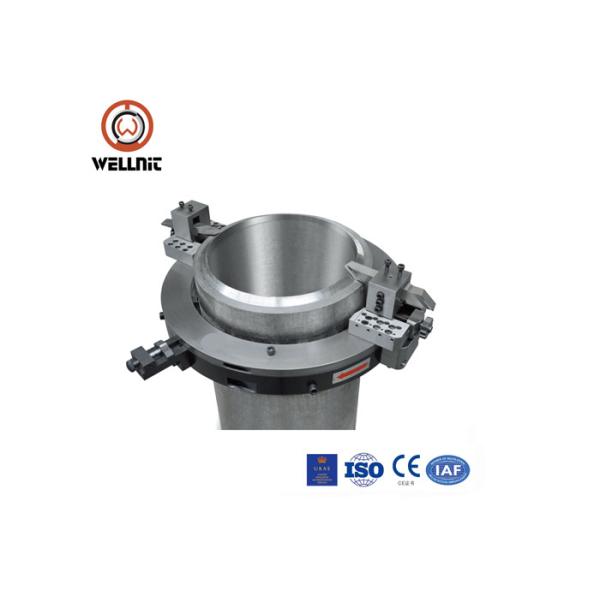

Aluminum Alloy Clamshell Pipe Cutter Electric Driven Steel Pipe Beveler

Aluminum Alloy Clamshell Pipe Cutter Electric Driven Steel Pipe Beveler

Production Description:

The series machine is ideal for all types of pipe cutting, beveling and end preparation.

The split frame design allows the machine to split in half at the frame and mount around

the OD of the in-line pipe or fittings for strong, stable clamping.

The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and

flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56

inches O.D.(DN20-1400), on most wall thicknesses and material.

Capability

Pipe cut off

Pipe end beveling

Pipe facing

Cutting and beveling

Compound beveling

Counter boring

Flange facing

Grooving

Bevel Type

We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.

Processing range can be customized according to requirements

Accessories:

Ring sets,It is provided for the users who have drive motors and tool slides to economically expand the

application range of SFM products.

SFM tool slides (select one)

A.Thick-wall tool slide (conventional): It can be applied to SFM models 206 to 4248 with stroke of 64 mm;

B.Spring tool slide: It is used to track the surface of out-of-round pipes, which can greatly save installation,

adjustment and cutting time. It can quickly and automatically track the system to ensure continuous

truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined

with counterbore slide.

C.Drilling and milling tool slide (only for hydraulic): Achieve pipe cutting by using the drilling and milling.

High-strength tool slide, smooth cutting and simple operation.

Main Features:

 Zhejiang Wellnit Mechanical Technology Co.,Ltd

     Zhejiang Wellnit Mechanical Technology Co., Ltd. is located in Binhai Economic and Technological Development Zone, Wenzhou, Zhejiang Pro.China. It is a modern high-tech enterprise integrating R&D, manufacturing, sales and service.

The company specializes in the production of electric, pneumatic, hydraulic, CNC and explosion-proof groove cutting equipment, steel plate groove equipment.

  The company adheres to the principle of “taking market demand as the guide, customer satisfaction as the goal, pioneering and innovation as the driving force,honesty and trustworthiness as the principle, quality and cheap as the pursuit”, and has won the domestic market with excellent quality and perfect service. The international market is highly praised and trusted by users. The company's top ten series of dozens of products have been exported to more than 60 countries and regions in Europe, America, Middle East, Southeast Asia, etc., obtained CE certification, and passed the ISO9001 international management system certification.

      The company has dozens of senior engineers, professional engineers, senior management, sales and development talents, advanced testing equipment and perfect testing methods, providing the most powerful support for product development, innovation, production and marketing, advanced management concepts. And a perfect service system to inject new vitality into the company.

      Products are widely used in petroleum, power, steel, chemical, shipbuilding, natural gas, nuclear industry, pressure vessels and other industries, pipelines, power engineering installation and repair. For example, the West-East Gas Pipeline and the South-to-North Water Transfer have achieved significant production efficiency and economic benefits.
