30hp -100hp Deep Well Submersible Water Pump 3 Phase 18-540m3/h Flow Rate

Categories	Submersible Water Pumps
Brand Name:	APK
Model Number:	QJ
Certification:	ISO;CE,BV; TUV; CCC
Place of Origin:	Henan China
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	9863 sets per month
Delivery Time:	Within 2-5 working days upon receipt of payment
Packaging Details:	Submersible well pump is packed by wooden case or as your request.
Head:	5-375m
Flow::	18-540m3/h
Pump Diameter:	175mm-350mm
Power::	30hp/35hp/40hp/50hp/60hp/75hp/85hp/100hp
Voltage:	380v/415v/420v/460v/480v/660v /1140v
Frequency::	3 Phase 50hz/60hz
Motor:	100% Copper Wire
Protection class:	IP68

Contact Now

Add to Cart

Company Info.

Zhengzhou Shenlong Pump Industry CO.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

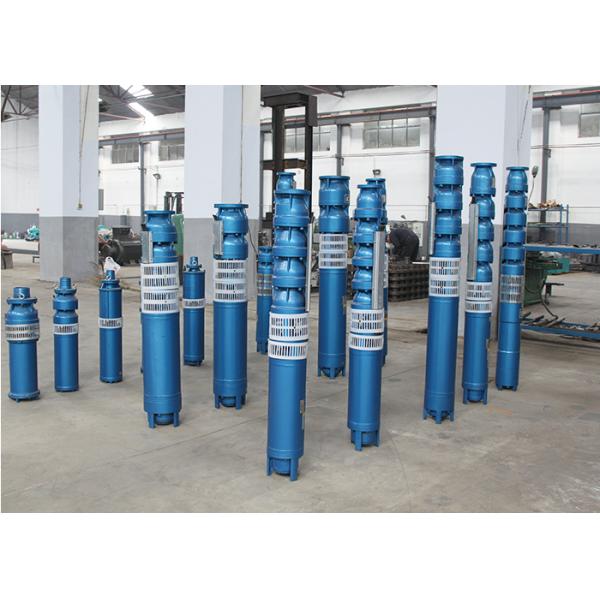

30hp -100hp Deep Well Submersible Water Pump 3 Phase 18-540m3/h Flow Rate

30hp 35hp 40hp 50hp 60hp 75hp 85hp 100hp Water Deep Submersible Well Pump Price

Product overview :

QJ series submersible well pump including QJ deep well(borehole)submersible pumps, QJH stainless steel submersible well pumps, QJT bottom-suction submersible pumps and QJR submersible well pumps .

Submersible well pump materials:

Impeller: Cast iron HT200, or stainless steel
Pump bowl: Cast iron HT200 or stainless steel ss304 / ss316
Pump shaft : Cold-drawn steel with chrome plating,or stainless steel ss304 ss316
Motor Seal: Rubber O-ring seal,mechanical seal
Motor regulating sleeve: rubber

Submersible well pump applications:

Farmland irrigation, spray irrigation
Water supply system for industrial buildings and civil buildings
Water distribution system in mountain areas
Low-lying areas and dunes
Water supply and water drainage system for mines in urban or rural districts
Other water conservancy facilities

Submersible well pump overview:

Submersible well pump parameters:

Model	Motor Power		Flow range	Meter range	Outlet size	Rated current
QJ Series	(kw)	(hp)	(m3/h)	(m)	Inch (")	A
175QJ10-121/9	7.5	10	9/11	96-140	1.2"	18.4
175QJ10-135/10	9.2	13	9/11	130-140	1.2"	22.1
175QJ10-150/11	9.2	13	9/11	144-146	1.2"	22.1
175QJ10-165/12	11	15	9/11	158-172	1.2"	26.1
175QJ10-180/13	11	15	9/11	173-187	1.2"	26.1
175QJ10-195/14	13	18	9/11	187-203	1.2"	30.1
175QJ20-143/11	15	20	18-22	120-165	2"	49.7
200QJ15-81/6	7.5	10	13-17	68-92	3"	18
200QJ20-93/7	10	14	18-22	79-107	2"	24.7
200QJ20-108/8	13	18	18-22	92-125	2"	29.7
200QJ20-121/9	13	18	18-22	103-140	2"	29.7
200QJ20-135/10	15	20	18-22	115-156	2"	33.9
200QJ25-182/13	22	30	23-27	150-210	2"	48.2
200QJ32-160/10	25	34	29-35	136-184	3"	54.5
200QJ40-182/14	37	50	37-43	154-214	3"	79.7
200QJ50-105/7	25	34	46-54	84-126	3"	54.5
200QJ50-117/9	25	34	46-54	94-140	3"	54.5
200QJ50-120/8	30	41	46-54	96-144	3"	65.4
200QJ50-143/11	37	50	46-54	121-165	3"	79.7
200QJ100-30/2	15	20	80-120	26-32	4"	33.9
250QJ50-200/10	45	61	46-54	170-230	3"	94.1
250QJ50-240/12	55	75	46-54	204-276	3"	127.9
250QJ50-280/14	63	86	46-54	268-322	3"	152.3
250QJ63-100/5	30	41	58-68	75-100	3"	64.2
250QJ63-200/10	55	75	58-68	170-230	3"	114.3
250QJ63-220/11	63	86	58-68	180-253	3"	127.9
250QJ63-260/13	75	102	58-68	220-299	3"	152.3
250QJ63-300/15	90	122	58-68	205-343	3"	182.8
250QJ140-60/4	37	50	130-150	52-69	5"	77.8
250QJ160-30/2	22	30	148-172	25-35	5"	47.9
250QJ160-45/3	30	41	148-172	38-51	5"	64.2
250QJ160-60/4	45	61	148-172	52-69	5"	94.1
250QJ160-75/5	55	75	148-172	65-86	5"	114.3
300QJ200-100/5	90	122	186-214	85-115	6"	183.8
300QJ200-120/6	110	150	186-214	100-138	6"	222.1
300QJ240-22/1	22	30	223-257	18-25	6"	249.5
300QJ240-44/2	45	61	223-257	37-51	6"	47.3
300QJ240-66/3	75	102	223-257	56-76	6"	95.4
300QJ240-88/4	100	136	223-257	75-101	6"	154.1
300QJ400-40/1	75	102	368-432	38-42	8"	152.3
300QJ400-80/2	160	218	368-432	76-84	8"	284.4
300QJ400-120/3	220	299	368-432	117-123	8"	439.2
300QJ500-60/4	140	190	460-540	57-63	8"	249.5
300QJ500-75/5	180	245	460-540	72-78	8"	317.5

If these submersible well pump parameters do not meet your demand, please feel free to contact us. We will choose one model for you.

Working conditions of submersible well pump:

Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).
Motor must be filled with clean water.
The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.
Water temperatureshould not higher than 20 ℃.
Sand content of the water (by quality) not more than 0.01%.
Water PH 6.5~8.5.
The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.
The content of chloridion in water shouldnot be higher than 400mg/l.
The water source must provide enough water for the pump to work continuously.
