| Categories | Heavy Duty Dump Truck |
|---|---|
| Brand Name: | SINOTRUK HOWO |
| Model Number: | ZZ3317N3867W |
| Certification: | COC,ISO,SGS,GSG |
| Place of Origin: | CHINA |
| MOQ: | 1 Unit |
| Price: | $30000~$60000 Per Unit |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Units Per Month |
| Delivery Time: | 25 Working Days |
| Packaging Details: | Nude |
| Name: | Tipper |
| Drive Model: | 8*4 |
| Fuel Tank: | 300L |
| Loading Capacity: | 50 Tons |
| Curb weight: | 15130KG |
| Max Speed: | 75km/h |
| Company Info. |
| Jinan Heavy Truck Import & Export Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

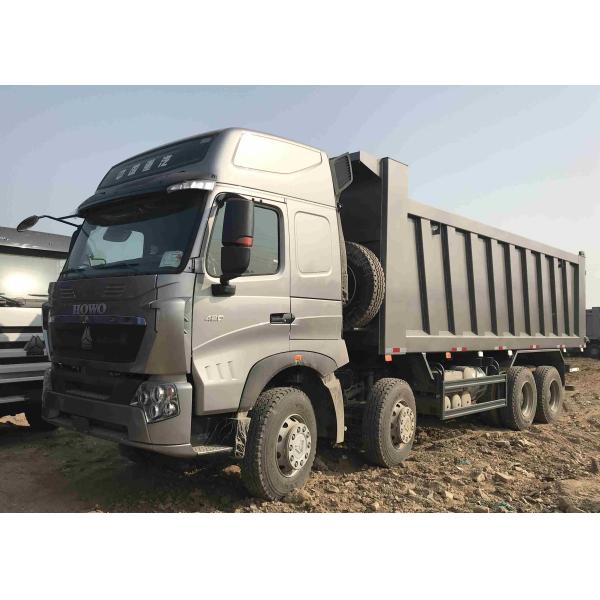

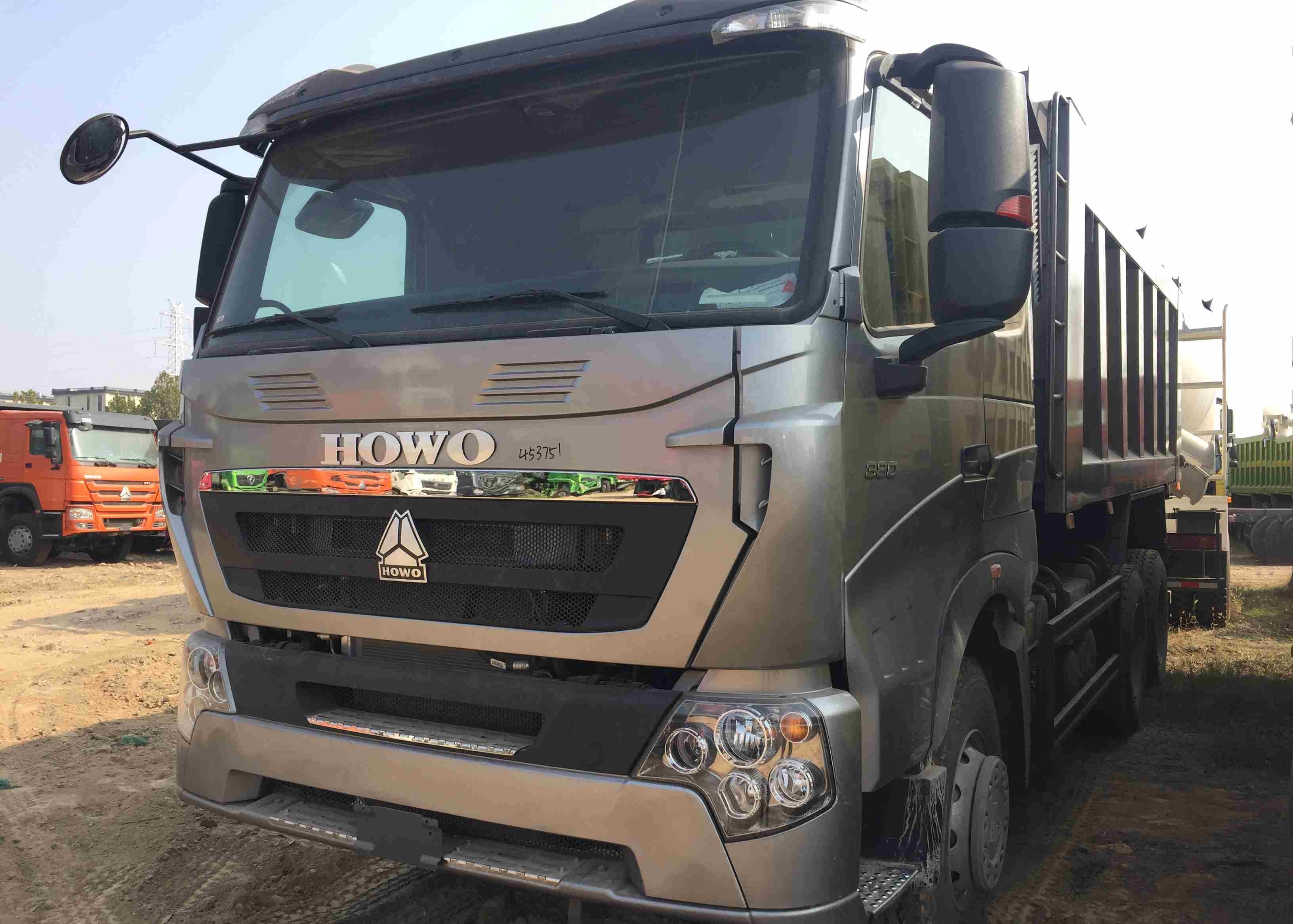

Used For Construction and Transportation Heavy Duty Dump Truck Powerful 371 Horse Power
Technical Parameters
| Vehicle series | HOWO 8x4 Tipper Dump Truck | |
| Cab | HW70,HW76 | |
| Engine | Model | WD615 / D10 |
| Power(Ps/rpm) | 336PS-380PS | |
| Maximum torque(Nm/rpm) | 1340-1590NM | |
| Displacement(L) | 9.726 | |
| Transmission | SINOTRUK HW series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction. with PTO, HW19710 / HW19710T | |
| Clutch | Φ430diaphragm spring Clutch,Hydraulic control air assisted. WD615.95Cstandard430B ,WD61596Cstandard430A | |
| Front axle | HF9 drum-type, rated load of 9t | |
| Rear axle | HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73,4.8 | |
| Steering system | ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa | |
| Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer |
| Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | |
| Braking system | Service brake | dual-circuit air pressure brake |
| Parking Brake | spring storage energy without air | |
| Auxiliary brake | Engine exhaust braking. standard Engine EVB,ABS, optional auto clearance adjusting arm. | |
| Electric system | Voltage | 24V |
| Generator | 2240W | |
| Batteries | 12V/165Ah,2 pieces | |
| Starter Power | 7.5kW | |
| Wheels & Tyres | Tyres | 12.00R20 |
| Optional | 12.00R24,12.00-24 | |
| Fuel Tank | Capacity | 300 Liter |
| Weights (kg) | Curb weight(vehicle/chassis) | 14830/10080;15130/10150;15200/10200;15200/10460 |
| Gross Vehicle Weight | 31000 | |
| Rated load | 15670~16040 | |
| Vehicle Dimensions (mm) | Overall length x Overall width x Overall height | (9445~11350)×2496×(3237~3633) |
| Wheelbase | 1800+(3000~4600)+1350 | |
| Front/rear overhang(vehicle/chassis) | 1500/(1795/750);1500/(1895/920);1500/(2095/935);1500/(2100/1065) | |
| Wheel track of front axle | 2041 | |
| Wheel track of rear axle | 1830 | |
| Performance | Maximum speed(km/h) | 79/83 |
| Maximum gradeability(%) | 20 | |
| Minimum turning diameter(m) | <24 | |
Application
Advantage



SALES DIRECTOR:
Mrs AnneHan (International Marketing depart)
E-Mail :AnneHan_Sinotruk@163.com
AnneHan_Xcmg@163.com
Cell &Whatsapp&Wechat: +86 18353169581
Linkin :AnneHan
Facebook:AnneHan
CHINA NATIONAL HEAVY DUTY TRUCK GROUP
JINAN HEAVY TRUCK IMPORT&EXPORT CO.,LTD
Website: www.sinotruk-china.com
TRUCK ,TRAILER ,MACHINERY ,EQUIPMENT ,SPARE PARTS .....ETC FOR SALE&EXPORT .
|
