Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric

Categories Silicone Coated Fiberglass Fabric
Brand Name: Unionfull
Model Number: UPSE-8732D160
Certification: ISO9001,ISO2008,SGS,TUV
Place of Origin: China
MOQ: 500m2
Price: usd2.5~3.8/m2
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000m2/Month
Delivery Time: 15days after receive the payment
Packaging Details: 50 meters per roll, 20 rolls one pallet
Material: Silicone coating
Coating sides: 1
Type: E-Glass
Weave: Satin 4SH
Thickness: 0.45mm
Width: 1/1.2/1.5m
Roll Length: 50m
Total Weigth: 590g/m2
Basic Weight: 430g/m2
Color: Gray
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Thermal Insulation 260℃ E - Type Glass 20.8oz Silicone Coated Fiberglass Fabric

Thermal Insulation 260℃ High Temp.Resist 20.8oz Silicone Coated Fiberglass Fabric


UnionfullTM's Silicone coated fiberglass fabric is made from woven fiberglass fabric and then coated with silicone/rubber. Fiberglass fabric is a light weight material which has moderate tensile and compressive strength. This cloth has been used in many industrial fields.


Properties:


1.Constant size
The material of the fabric itself determines that it is not malleable and maintains a flatness for a long time

2.Non-flammable

3.Fire prevention

The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.

4.Low friction coefficient is the best choice for oil-free self-lubrication.

5.Anti-ripper
It does not require reinforcement for natural tear resistance, has significant wind resistance and is subject to frequent mechanical properties.

6.With high insulation properties, UV protection, anti-static.


Descriptions:


Item NameSilicone Coated Fiberglass Fabric
Products CodeUPSE-8732D160
Material

Fabric:100% E-glass fiber

Pattern:Silicone Coated

Structure:3 layers--Silicone+Glass fiber+Silicone

Weight(g/m2)590g/m2 (430g+80g+80g)
Width1500mm
Thickness0.45mm
ColorGray
Length50m/roll
Ends Warp/Weft(cm)17.4/14
Tensile Strength(N/MM)270/170
TemperatureFiberglass cloth ≤ 550℃

Silicone coating ≤ 260℃


Data:

Main Specifications
Code

Weight

(g/m2)

Thickness

(mm)

Width(m)ColorCoating sides
UPSE-8732S404800.431/1.2/1.5grey,red,white1
UPSE-8732S805100.451/1.2/1.5grey,red,white1
UPSE-8732D1605900.451/1.2/1.5grey,red,white2
UPSE-8784S408900.81/1.5grey,red,white1
UPSE-8784D809300.81/1.5grey,red,white2
UPSE-8784D16010101.001/1.5grey,red,white2
UPSE-8784D20010501.001/1.5grey,red,white2

Main Applications:

1.Glass fiber cloth is commonly used as a reinforcing material in composite materials, electrical insulating materials and thermal insulation materials, circuit boards and other fields of the national economy.


2.Construction: Glass fiber cloth is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc. It can also be applied to the reinforcement of wall materials such as cement, plastic, asphalt, marble, mosaic, etc.


3.Silicone coated fiberglass fabric is mainly used in industry: heat insulation, fire prevention and flame retardant. The material absorbs a large amount of heat when it is burned by flames and prevents the flame from passing through and isolating the air.


4.It is a fantasy protection thing for the public security fire safety key unit. When it is used for construction in public places such as large shopping malls, supermarkets, hotels, etc., such as welding, cutting, etc.: using fire blanket can directly reduce spark splash, which will be flammable, Isolation and blocking of explosive risk

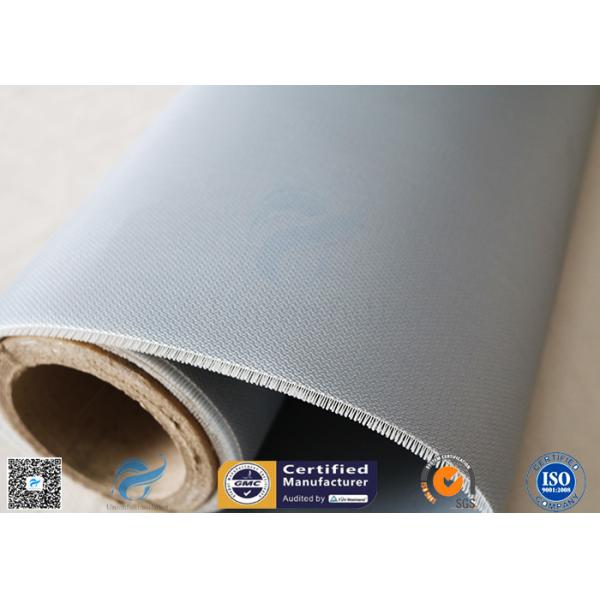

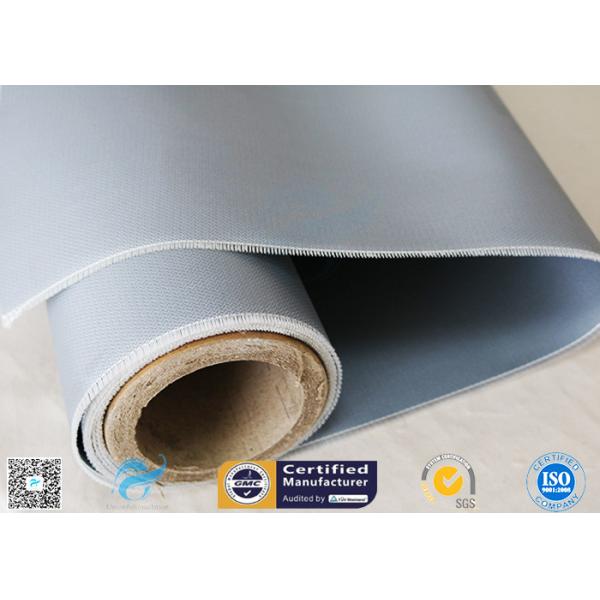

Pictures:
