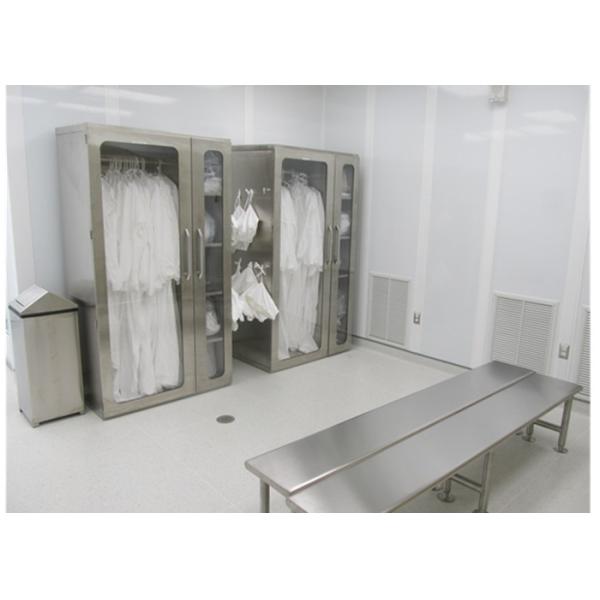

Clean Room Garment Storage Cabinets/Sterile Garment Storage For Hospital
Clean Room Garment Storage Cabinets Introduction:
Laminar flow cabinets feature a quiet, direct drive, variable-speed
blower mounted above a HEPA filter, rated 99.99% efficient at
removing particles 0.3μm and larger. This KELING blower/filter
module delivers up to 120 linear feet/minute (0.61 m/s) of Class 10
air, a continuous downstream that blocks the inrush of contaminants
into the storage area and helps to keep garments and other
materials particle-free. An air outlet located at the bottom of the
storage area discharges air along with any contaminants that may
have entered the cabinet. All blower/filter components (including
fiberglass pre-filters) are easily accessible through a swing-up
front panel. This compartment can be used as storage for cabinets
without a blower/filter module.
Clean Room Garment Storage Cabinets Features:
1. Versatile storage cabinets provide optimal storage space for
cleanroom garments, tools, wipes, process equipment, and other
materials
2. Choose the configuration for your requirements:
3. Garment rack (holds up to 30 garments)
4. Adjustable shelves
5. Combination garment rack/shelves
6. Mirrored door
7. Models available with HEPA filter/blower unit that removes
99.99% of all contaminants 0.3 microns and larger
8. Solid and perforated shelves available. Perforations reduce
obstructions to laminar air flow
9. Chrome-plated hardware, nonshedding materials ensure cleanroom
compatibility
10. Double doors with self-closing hinges allow easy access with
minimal clearance requirement
11. Available with Static-Dissipative PVC front panels for optimal
cleanliness and static safety
Clean Room Garment Storage Cabinets Specification:
| MODEL | KEL-LFG800 | KEL-LFG900 | KEL-LFG1000 |
External size (mm) (W*D*H) | 800X500X1800 | 900X500X1800 | 1000X500X1800 |
Work zone (mm) (W*D*H) | 700X400X1300 | 800X400X1300 | 900X400X1300 |
| Air speed | 0.45m/s +_20% | ||
| Purification rank | ISO5(Class A) | ||
| Control system | LED Control board function 1: Power on/ off 2: Air speed up and down 3: purification light and UV light control | ||
| Material | Stainless steel304 (t=1.2mm) | ||
| Differential gauge | Dwyer brand Guage (1 pcs ) | ||
| Hepa filter | Mini-pleats HEPA filter 99.99%@0.3um | ||
| Per-filter | Pleats panel filter (75%@2um( | ||
| UV light | 1 pcs | ||
| Noise | 65dB | ||
| Illumination | >300lux | ||
| Power | 0.5kw | 0.7kw | 0.9kw |



|
