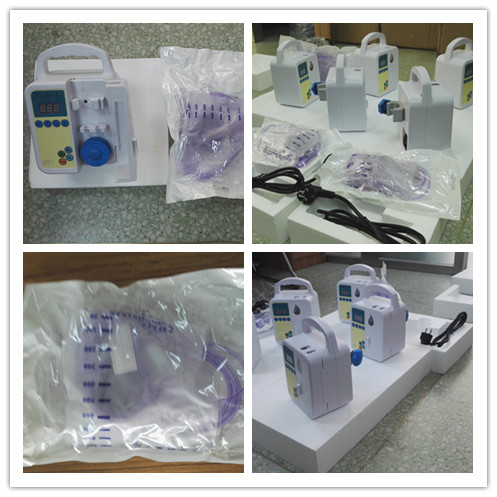

Medical Liquid Nutrition Pump Enteral Nasogastric Feeding Pump

Electric pump, adjustable flow rate

Main Technique Parameters:

a) Infusion rate:0ml～999ml,≤±10%

b) Total volume:0.1ml～999ml,≤±10%

c) flow rate:1ml/h～300ml/h；

d) Infusion accuracy:At 1ml/h～50ml/h,range:1ml/h,≤±10%；

At 50ml/h～300ml/h,range 5ml/h,≤±10%

e) Power consumption:13VA

f) Size: 193mm×130mm×105mm

g) N.W:1.6kg

h) Feeding tube:Special feeding tube

Working Conditions:

a) Ambient temperature:5℃～40℃；

b) Relative humidity:30％～80％；

c) Barometric:860～1060hPa；

d) Power supply:AC220V,50Hz

e) Battery:Ni-H2 battery group 9.6V,1600mAh

Alarm function:Sound and light alarm as following situations

a) Without any operating when switched on

b) when reach reques volume

c)low battery

d)Feeding tube is in empty,blocked and folding

e) When working loss of AC supply suddenly

Trouble shooting

Problem	Possible Causes	What To Do
Alarm Continue	1)Liquid above line in “venture” catheter” 2)Bodies block monitoring port	1)Lowering water 2)removal the bodies(Maybe water droplets in monitoring, can swing tube)
Interrupt alarm	Pump in forward or backward place	Put in flat place
After starting pump, not rotate and interrupt light on	Pump wheel is stuck by nutritious	Unscrew pump wheel and clean it.
When pump intermittent stall, “venturi catheter” is still dripping	The tube is too long or joint is slide out from position	1)Choose special feed tube.2)recovery joint in original position
Flow rate is inaccurate	Didn't use special feeding tube	Use special feeding tube

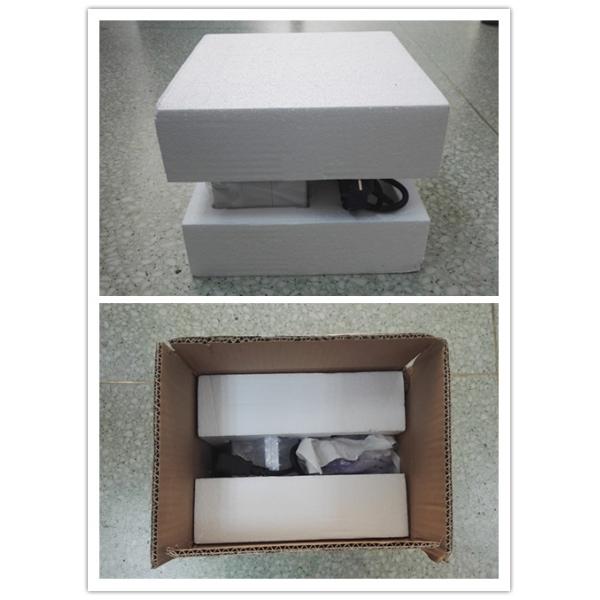

Package: by standard export carton
