| Brand Name: | VALUES GLASS |
| Model Number: | PDLC Film |
| Certification: | Upon Request |
| Place of Origin: | China |
| MOQ: | 5 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10,000 sq.meter/Month |
| Delivery Time: | 14 Days |
| Packaging Details: | Plywood Pallet or per request |
| Film: | PDLC Film |
| Thickness: | 0.38mm |
| Width: | Max 1,500mm |
| Film Application: | Self-adhesive on glass |
| Film Color: | Clear, Milky, Grey, Blue, Green, Red |
| Light Transmittance: | >=82% (ON) / <=8% (OFF) |
| Company Info. |
| SHANGHAI VALUES GLASS CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

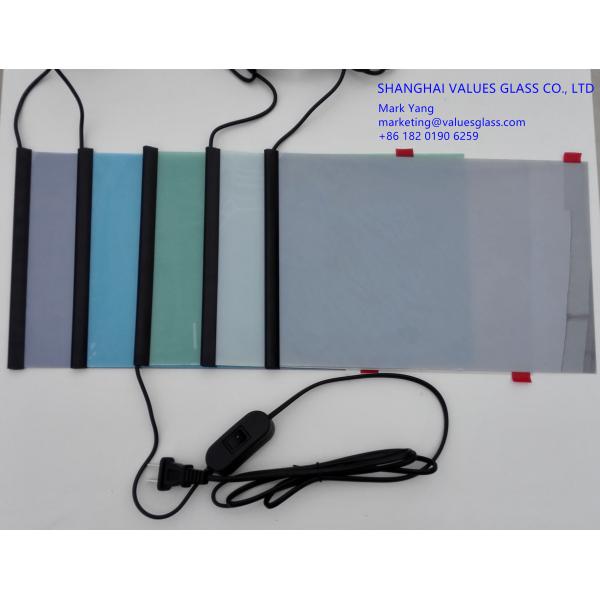

Self-Adhesive PDLC Film on Glass Swtichable Film Custom Made PDLC Film
Product Description:
| ON state | OFF state | ||||
| 2.1 Light transmittance: | Parellel light: | >=66% | <=1.5% | ||
| Visible light: | Common Film | >=83% | >=55% | ||
| High Transmittance Film | >=88% | >=57% | |||
| 2.2 Haze: | <=3% | >=90% | |||
| 2.3 Response time: | <10ms | <200ms | |||
| 2.4 Viewing angle: | >=150° | ||||
| 2.5 Voltage: | Input: | AC220V, AC110V, DC24V, DC12V | |||
| Operating voltage: | AC48V | ||||
| Threshold voltage: | <=20V | ||||
| 2.6 Frequency: | Operating frequency: | 30~400Hz | |||
| Optimum operating frequency: | 50Hz | ||||
| 2.7 Power consumption: | <=5W/m2 | ||||
| 2.8 Continued opening time: | >80,000h | ||||
| 2.9 Continued ON and OFF times: | >80,000,000 | ||||
| 2.10 Insulation Resistance: | >2M Ω | ||||
| 2.11 Operating temperature: | Between -10℃ and 65 ℃. | ||||
| 2.12 Storage temperature: | Between -20℃ and 80 ℃. | ||||
| 2.13 Thickness: | 0.65mm | ||||
| 2.14 Max dimension: | Individual piece | 1.5 * 3.2 meters | |||
| Roll (Width x Length) | 1.0 / 1.2 / 1.5M x 20 / 30 / 50M | ||||
| 2.16 Adhesion for silicon glue & glass: | 20g/mm | ||||
| 2.17 Adhesion for PDLC film: | 50g/mm | ||||



|
