| Categories | Compression Testing Machine |
|---|---|
| Brand Name: | PTE |
| Model Number: | 2000KN /3000KN Large scale Servo control Compressive strength tester |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | wooden case |
| Packaging Details: | within 10 days after the confirmed order |
| Usage: | 2000KN /3000KN Large scale Servo control Compressive strength tester |
| standards: | ASTM, DIN, BS, JIS, GB, etc. |
| Display: | Digital |
| Driving: | Hydraulic |
| Hydraulic pump rated pressure: | 40MPa |
| Indication value relative error: | ±2% |
| Piston max stroke: | 20mm |

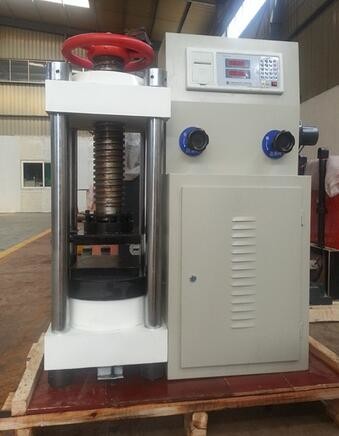

2000KN /3000KN Large scale Servo control Compressive strength tester for concrete, brick, construction materials
Description
This compression testing machine is mainly used for compression strength test of construction materials such as rock, concrete, cement, hollow brick, Flyash brick, fireproofing material, stone, rubber bearing, large structure. It’s kind of advanced material testing machine.
Features
Precision sensor, computer control, can automatic save, query and print test report, screen will display force value, peal load, curve and the loading process. Full-digit control system: whole range no grading, automatic zero set, calibration.
High accuracy sensor and digital control valve, full automatic control, automatic broken test;
Full English interface, easy operation, direct display of force value, peak value, loading speed, test curve
Database for lab networking;
Customized test report format
Easy calibration as per instructions on user manual
Lenovo desktop computer, colorful printer
Technical specifications
| Max test force | 2000kn | 3000KN |
| Load accuracy | ≤±1% | ≤±1% |
| Column gap | 380mm | 380mm |
| Compression test space | 0-370mm | 0-370mm |
| Platen size | 370*370mm | 320*320mm |
| Piston stroke | 50mm | 50mm |
| Loading rate | 0.1-25kN/s(digital setting) | 0.1-25kN/s(digital setting) |
| Space adjustment mode | Manual screw rod(or electric screw) | Manual screw rod(or electric screw) |
| Overload protection | <103%F.S | <102%F.S |
| Motor power | 0.75kw | 0.75kw |
| Working voltage | 380V/220V | 380V/220V |
| Main machine size | 800×600×1650mm | 640×500×1600mm |
| Oil cylinder size | 1070×650×1400mm | 450×400×1100mm |
| Total weight | 1300kg | 1300kg |
ptestmachine@gmail.com
Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
|
