| Categories | TFT LCD Module |
|---|---|
| Brand Name: | HYDIS |
| Model Number: | HV056WX2-100 |
| Certification: | ISO9001 |
| Place of Origin: | KOREA |
| MOQ: | 1 |
| Payment Terms: | Western Union, T/T, MoneyGram, T/T |
| Supply Ability: | 500PCS/DAY |
| Delivery Time: | 1-3 Working Days |
| Packaging Details: | Antistatic bag, Bubble Bag, Foam Box and Carton Box. |
| Panel Type: | a-Si TFT-LCD , LCM |
| Panel Size: | 5.6 inch |
| Resolution: | 1280(RGB)×800 , WXGA |
| Display Mode: | STN, Normally Black, Transmissive |
| Active Area: | 120.96×75.6 mm |
| Outline: | 158×90.3 mm |
| Company Info. |
| N&S ELECTRONIC CO., LIMITED |
| View Contact Details |
| Product List |

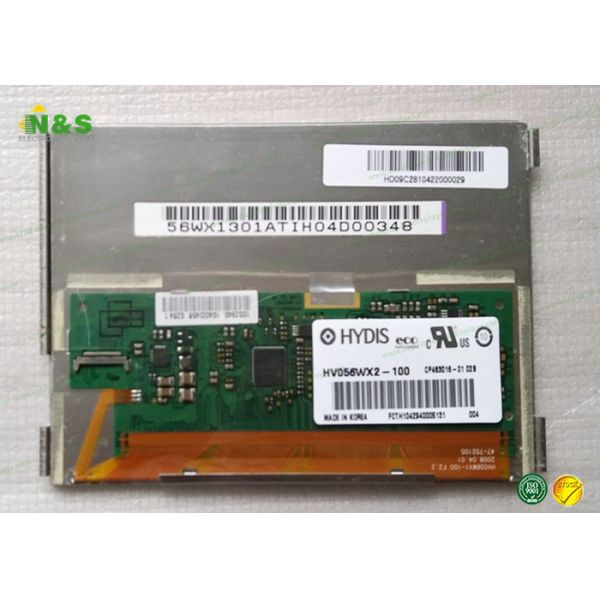

HV056WX2-100 TFT LCD Module HYDIS Assembly 1280×800 220 5.6 inch for MID UMPC
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
HV056WX2-100 Information
| Panel Size : | 5.6 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 268 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0315×0.0945 mm (H×V) |
| Pixel Pitch : | 0.0945×0.0945 mm (H×V) |
| Weight : | 103g (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (2H) |
| Active Area : | 120.96×75.6 mm (H×V) |
| Outline Dimension : | 158×90.3 mm (H×V) |
| Outline Depth : | 6.25 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (Matrix Touch) |
| Panel Cover : | With Cover Lens |
| Display Mode : | HFFS, Normally Black, Transmissive |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.323; Wy:0.359 |
| Sunlight Readable : | N |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV121X02-101 | HYDIS | 12.1" | 1024×768 |
| HVA35WV1-D02 | HYDIS | 3.5" | 480×800 |
| HV070WS1-D01 | HYDIS | 7.0" | 1024×600 |
| TE025THZB4 | TPO | 2.5" | 640×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
|
