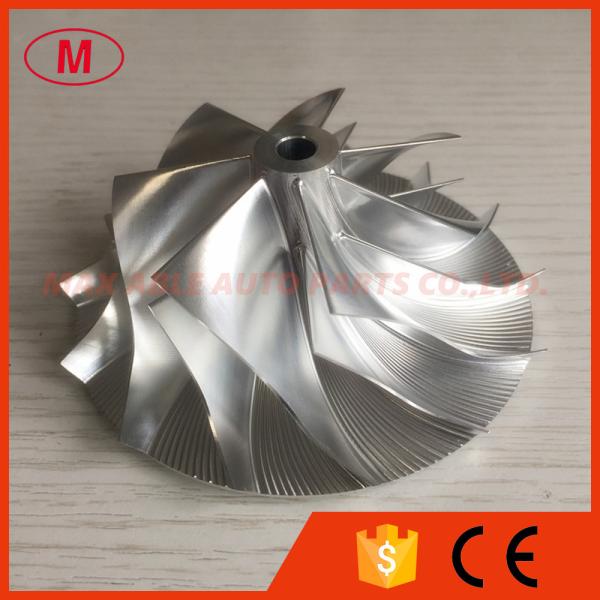

T04S 8635R P00767 62.30/86.15mm 7+7 blades High performance turbo aluminum 2618/milling/billet compressor wheel

1. MODEL:T04S FORWARD

2.T04S 8635R P00767 62.30/86.15mm 7+7 blades High performance turbo Billet/aluminum 2618/milling compressor wheel for racing

3.Size:

Nose diameter:14.08mm

inducer:62.30mm

Exduder:86.15mm

Tapered tip exducer:91.42mm

Tip height:5.56mm

Superback:2.20mm

Overall height:36.10mm

bore size :6.35mm

Bore type:through

Trailing Angle:70 degree

Cutback:11.0mm

SP Height angle:0.00

Blades height:31.61mm

Splitter height:20.05mm

7+7 blades

Forward rotation

Tapered tip angle:30 degree

It is Custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.

The more models we also have.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
