| Categories | Air Cylinder Accessories |
|---|---|
| Brand Name: | PRIUS,XINYI or OEM |
| Model Number: | TC-M |
| Place of Origin: | Ningbo,China |
| MOQ: | 5pcs |
| Price: | negotiation |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 20000pcs per month |
| Delivery Time: | 10~15 working days |
| Packaging Details: | bag+box+catons+pallet |
| Product Name: | TC - M |
| Colour: | BLACK |
| Material: | IRON |
| Speed Range: | 50~800mm/s |
| Buffer Type: | Gasket Buffer/Adjustable Buffer |
| Port Size: | M5X0.8/G1/8" |
| Fix Type: | Normal/LB/FA/FB/SDB |
| Action Type: | Single acting/Double acting |
| Company Info. |
| Prius pneumatic Company |
| Verified Supplier |
| View Contact Details |
| Product List |
TC-M Central Trunnion M type with bracket standard cylinder accessories
Pneumatic Air cylinder Accessories CA Single Earring,CB Double Earring,LB Foot Bracket,FA/FB Flange,Y Clevis,Eye Fish Bearing,Float Fitting,I Fitting,SDB Earring,Central Turnion,U clevis
Quick Detail:
* Pneumatic air cylinder accessories
* Various asccessories for mounting and functional application
* Covering full range of air cylinder size from Dia.8mm~dia.400mm
* Aluminum material and casting steel material available
* Easy and fast for operatating to mount onto cylinders
* With good shape by the quality surface treatment
* Special air cylinder accessories can be customize for specific application
Applications:
Pneumatic air cylinder accessories are the supporting parts for air cylinder to realize the fixture mounting and functional application joint with air cylinder and workpieces.

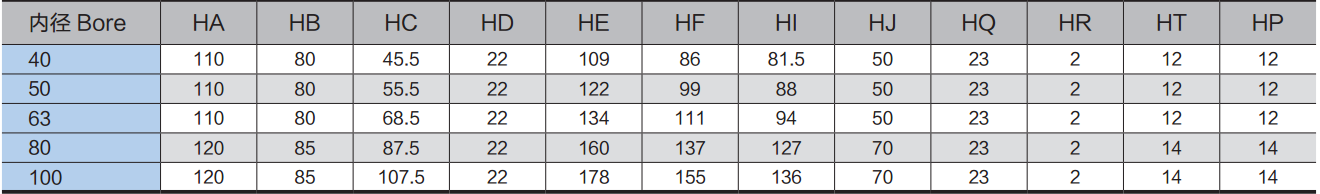

Specification
| Bore | HA | HB | HC | HD | HE | HF | HI | HJ | HQ | HR | HT | HP |
| 40 | 110 | 80 | 45.5 | 22 | 109 | 86 | 81.5 | 50 | 23 | 2 | 12 | 12 |
| 50 | 110 | 80 | 55.5 | 22 | 122 | 99 | 88 | 50 | 23 | 2 | 12 | 12 |
| 63 | 110 | 80 | 68.5 | 22 | 134 | 111 | 94 | 50 | 23 | 2 | 12 | 12 |
| 80 | 120 | 85 | 87.5 | 22 | 160 | 137 | 127 | 70 | 23 | 2 | 14 | 14 |
| 100 | 120 | 85 | 107.5 | 22 | 178 | 155 | 136 | 70 | 23 | 2 | 14 | 14 |


|
