| Categories | AUO LCD Panel |
|---|---|
| Brand Name: | AUO LCD Panel |
| Model Number: | G104XVN01.0 |
| Certification: | ISO9001 |
| Place of Origin: | Japan,Korea |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500PCS/DAY |
| Delivery Time: | 1-3 Working Days |
| Packaging Details: | Antistatic bag, Bubble Bag, Foam Box and Carton Box. |
| Panel Model: | G104XVN01.0 |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 10.4 inch |
| Display Mode: | PSA, Normally Black, Transmissive |
| Active Area: | 210.43×157.82 mm |
| Outline: | 238.6×175.8×7 mm |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz |
| Company Info. |
| N&S ELECTRONIC CO., LIMITED |
| View Contact Details |
| Product List |
AUO LCD Panel G104XVN01.0 10.4 inch 210.43×157.82 mm Active Area 238.6×175.8×7 mm Outline
Production Machinery
| Panel Brand : | AUO |
| Panel Model : | G104XVN01.0 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | PSA, Normally Black, Transmissive |
| Active Area : | 210.43×157.82 mm |
| Outline : | 238.6×175.8×7 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 470 cd/m² (Typ.) |
| Contrast Ratio : | 3000:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% |
| Response Time : | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 strings WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Plastic Trays Inside
2. Layers of cartons
3. Fragile Sign on top.
4. Can be customized.
AUO G104XVN01.0 Backlight System
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 2 strings |
| Lamp Shape : | 2 strings |
| Lamp Life Time : | 80K(Typ.) (Hours) |
| Lamp Replaceable : | No |
| Lamp Voltage : | 29.7/32.4V (Typ./Max.) |
| Lamp Current : | 80mA (Typ.) |
| Lamps Power Consumption : | 4.75W (Typ.) |
| Interface Type : | Connector |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |

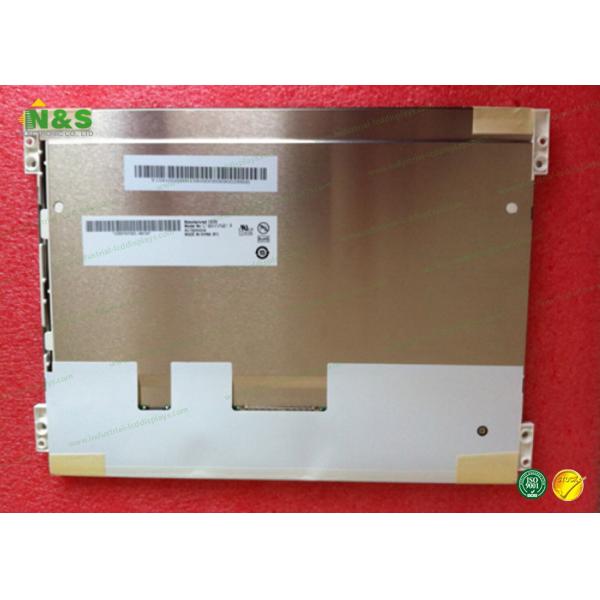

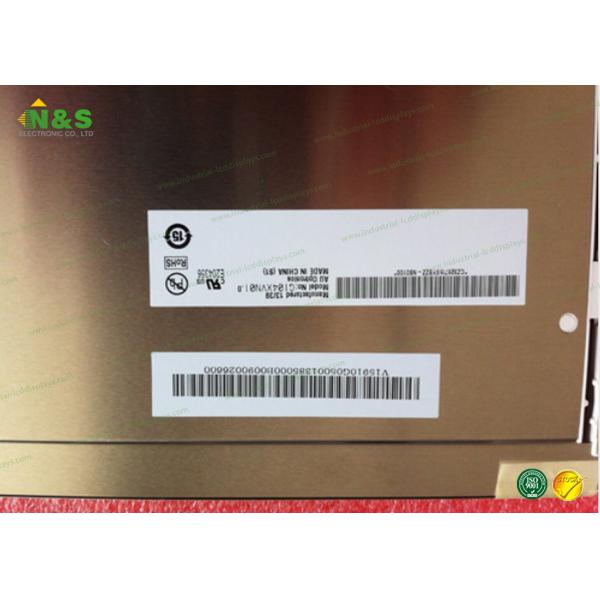

Details Pictures for AUO LCD Panel G104XVN01.0


|
