| Brand Name: | Mitsubishi |
| Model Number: | AA150XC01 |
| Certification: | ISO9001 |
| Place of Origin: | KOREA |
| MOQ: | 1 |
| Payment Terms: | Western Union, T/T, MoneyGram, T/T |
| Supply Ability: | 500PCS/DAY |
| Delivery Time: | 1-3 Working Days |
| Packaging Details: | Antistatic bag, Bubble Bag, Foam Box and Carton Box. |
| Panel Type: | a-Si TFT-LCD , LCM |
| Panel Size: | 15.0 inch |
| Resolution: | 1024(RGB)×768 , XGA |
| Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 304.1×228.1 mm |
| Outline: | 326×255×16 mm |
| Company Info. |
| N&S ELECTRONIC CO., LIMITED |
| View Contact Details |
| Product List |

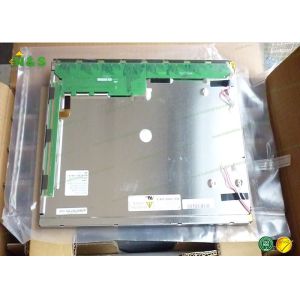

15.0 inchNormally White AA150XC01 TFT LCD Module Mitsubishi with
304.1×228.1 mm Active Area
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich
experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within
24hours once receiving the payment. Tracking number would be
informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers
encountered!
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get
details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once
received payment, and will use third parties delivery services or
delivered as you request.
AA150XC01 Information
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.35Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 308.1×232.1 mm (H×V) |
| Outline Dimension : | 326×255 mm (H×V) |
| Outline Depth : | 15.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 450 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.303; Wy:0.313 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
| AA084SB11--T2 | Mitsubishi | 8.4" | 800×600 |
| AA104XF12-CE-01 | Mitsubishi | 10.4" | 1024×768 |
| D150X-N02 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA104XF12-DE-02 | Mitsubishi | 10.4" | 1024×768 |
