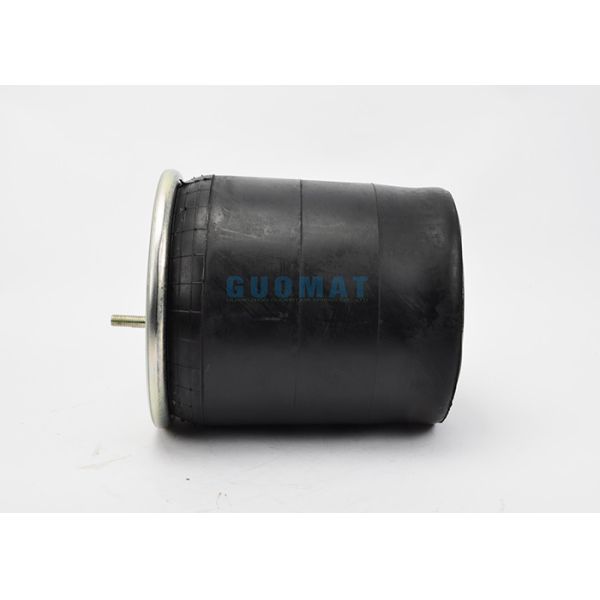

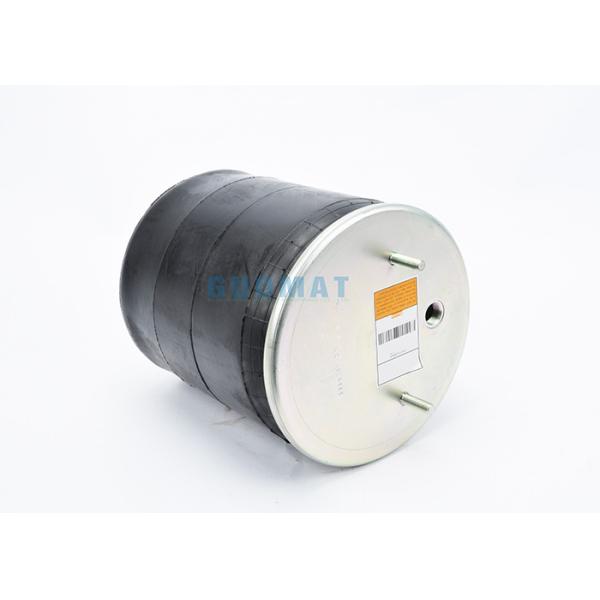

941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36

941 MB Air Suspension Spring System W01M588619 for BPW 30 or Pirelli 1TC 300-36

GUOMAT 1T941MB Technical parameters

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12

Distance Between Stud and Central axis : 25 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud :48 mm

Distance Between Stud and Central axis : 73 mm

❸ Cover Plate

Top Cover Plate Diameter: Ø259 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 300 mm

Rubber Bellows MAX Height : 610mm

Rubber Bellows MIN Height : 285mm

Design height 360mm

Working stroke 325mm

❺ Bumper block / Buffer block

Bumper Block height :41mm

❻ Bottom Piston

Bottom Piston Diameter : Ø205mm

Bottom Piston Height :193 mm

❼ Piston Bolt

Piston Bolt Tooth : M16 X2.0

6 pieces of Bolt

Middle inside between center Bolt : 70 mm

Inside the most close Bolt :20 mm

Inside and the beside Bolt: 60 mm

941 MB Spring System to BPW 30

CONTINENTAL
941 MB/ BPW 30
DUNLOP FRANCE
D11 B30
FIRESTONE REF.
W01 M58 8619
STYLE NO.
1T17D-8.3
GOODYEAR
1R11-701
GRANNING
15918
PHOENIX
1 DK21
PIRELLI
1TC300-36
TAURUS
UR 730-01
UC
P1393
WABCO
951 811 762 0

AIRTECH
130222
AIRTECH PROD. NO.
3941K
AUTOMINT
6010
BLACKTECH
RML 7052 C
CF GOMMA
1 TC 300-36/ 205170

0542940361 0542943200 0542940101 0542940281

BPW 05.429.40.30.1 05.429.43.20.0 05.429.41.24.1 05.429.40.09.1 05.429.40.34.0 05.801.09.73.0 05.429.42.18.0 05.429.40.28.1 05.429.42.18.1

Weight 9.78kg

Space required 325mm

Loading cap.at 5.0bar 2.3kn

Loading cap.At7.0bar 28.5kn

941 MB Air Suspension Spring with other kind numbers

Truck Air springs can fit for the below trucks

DAF Truck
Mercedes Truck
Renault Truck
Scania Truck
VOL-VO Truck
ERF Truck
Foden Truck
IVE-CO Truck
MAN Truck

and so on
