| Categories | Fuel Tanker Semi Trailer |
|---|---|
| Brand Name: | Fudeng |
| Model Number: | SDFD1701 |
| Certification: | CE, ISO9001, CCC, ADR, SGS, DOT |
| Place of Origin: | Shandong, China |
| MOQ: | 1 set |
| Payment Terms: | T/T, L/C or negotiate |
| Supply Ability: | 600 sets per month |
| Delivery Time: | 25-40 days after 30% deposit |
| Packaging Details: | Paint and wax spraying |
| Price: | negotiation |
| Material: | Carbon steel, stainless steel, aluminium alloy |
| Color: | White, yellow, red, green, blue customized |
| Pattern: | Fudeng logo or as customer's request |
| Volume: | 30000 liters to 60000 liters customized |
| Suspension: | Mechanical or air suspension |
| Axle: | 2 or 3 or 4 |
| Usage: | Transport fuel, oil or liquids |
| Tare weight: | About 11 ton |

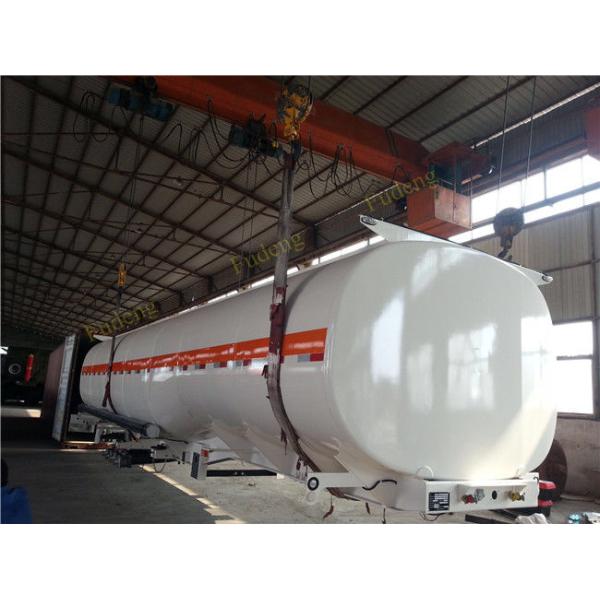

Fudeng tanker trailer are production of aluminum or stainless steel and are used to transport fuels, water, milk starting from 25m3 to 50m3 in vacuum, potable and non potable. Tanker trailers are designed for tough road and best storage conditions.
The configuration is just for reference. Welcome to contact us and tell your needs ! We will provide suitable products for you
| Fuel tank trailer specification | |
| Tank Body | |
| Dimension | 12000mm*2490mm*3990mm or customized |
| Volume(m3) | 25m³- 70 m³ |
| Tare weight | About 6-12 ton |
| Tanker Body thickness | 5mm /Q345B carbon steel /aluminum |
| End Plate thickness | 6mm /Q345B carbon steel /aluminum/stainless steel |
| Manhole Cover | Carbon steel Aluminum alloy API manhole cover, 500mm |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
| Compartments | Optional |
| Chassis | |
| Main Beams | Q345B carbon steel or T700 high-intensive steel, I Beam height 500mm Upper plate 14mm, lower is 16mm, middle is 8mm |
| Axle | 4 axles, 13T and 16T brake pad |
| Landing Gear | Standard 28T double speed, JOST(D200T) or Chinese brand |
| King Pin | 5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand |
| Suspension | Mechanical suspension or Air suspension Thicken |
| Leaf Spring | 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System | 6 air chamber, 3 axles synchronization WABCO brand |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional |
| ABS | Optional |
| Accessories | One standard tool box |
| Voltage | 24V |
Fudeng offers tanker trailer with heavy duty construction, various suspension options, trailer size options, tank material options, and a variety of shape options. To overcome your expectations, we can build a entirely customizable tanker trailer with the highest standards.
Packing and shipping
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms By Bulk Cargo/RORO
|
