| Categories | Fuel Tanker Semi Trailer |
|---|---|
| Brand Name: | Fudeng |
| Model Number: | SDFD17014 |
| Certification: | CE, ISO9001, CCC, ADR, SGS, DOT |
| Place of Origin: | Shandong, China |
| MOQ: | 1 set |
| Payment Terms: | T/T, L/C or negotiate |
| Supply Ability: | 600 sets per month |
| Delivery Time: | 25-40 days after 30% deposit |
| Packaging Details: | Paint and wax spraying |
| Price: | negotiation |
| Material: | Carbon steel, stainless steel, aluminium alloy |
| Color: | White, yellow, red, green, blue customized |
| Pattern: | Fudeng logo or as customer's request |
| Volume: | 30000 liters to 60000 liters customized |
| Suspension: | Mechanical or air suspension |
| Axle: | 2 or 3 or 4 |
| Usage: | Transport fuel, oil or liquids |
| Tare weight: | About 11 ton |

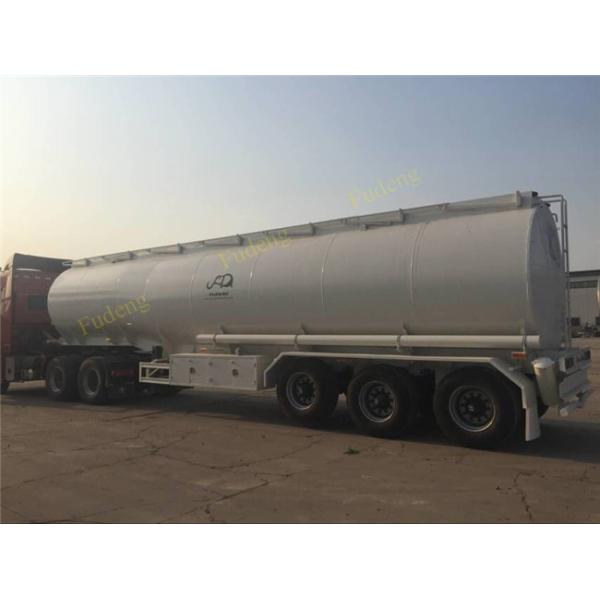

Custom-built tank trailers by Fudeng can be built according to industry standards to transport crude oil and petro-chemicals to and from your destination. When you use Fudeng products, you can travel with confidence.
1. Fudeng’s custom engineered Petro-Chemical trailers are the lightest on the market.
2. Proven two-piece barrel design with a single circumferential seam.
3. Industries widest sheet material minimizes barrel seams.
4. Designed for ease of operation and simple maintenance.
5. A wide variety of piping, vapor recovery, and pumping options available, including, factory-applied Tnemec Lining.
| Fuel tank trailer specification | |
| Tank Body | |
| Dimension | 12000mm*2490mm*3990mm or customized |
| Volume(m3) | 25m³- 70 m³ |
| Tare weight | About 6-12 ton |
| Tanker Body thickness | 5mm /Q345B carbon steel /aluminum |
| End Plate thickness | 6mm /Q345B carbon steel /aluminum/stainless steel |
| Manhole Cover | Carbon steel Aluminum alloy API manhole cover, 500mm |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
| Compartments | Optional |
| Chassis | |
| Main Beams | Q345B carbon steel or T700 high-intensive steel, I Beam height 500mm Upper plate 14mm, lower is 16mm, middle is 8mm |
| Axle | 4 axles, 13T and 16T brake pad |
| Landing Gear | Standard 28T double speed, JOST(D200T) or Chinese brand |
| King Pin | 5.0(2 inch)/9.0(3.5 inch) JOST(D200T) or Chinese brand |
| Suspension | Mechanical suspension or Air suspension Thicken |
| Leaf Spring | 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer |
| Pneumatic Braking System | 6 air chamber, 3 axles synchronization WABCO brand |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be Optional |
| ABS | Optional |
| Accessories | One standard tool box |
| Voltage | 24V |
1. Different types of suspension are designed for various operating condition bogie suspension; air suspension; mechanical suspension.
2. We provide Low barycenter, maximum volumetric capacity products.
3. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.
