| Categories | Flatbed Container Trailer |
|---|---|
| Brand Name: | FUDENG Brand |
| Model Number: | Flatbed container trailers |
| Certification: | BV,SGS, CNCA, CIQ .etc. |
| Place of Origin: | Shandong China(Mainland) |
| MOQ: | One Unit Flatbed container trailer |
| Payment Terms: | L/C, D/A,, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500Units Per Month |
| Delivery Time: | 20days after deposit |
| Packaging Details: | nude package for Flatbed container trailers shipping by 40ft containers and Bulk cargo transportation |
| Application: | Carry Container, Hoses, Cement Bags And Other Goods |
| Axles: | Fuwa/BPW/Chiness brand |
| Size: | 12,500*2,500*1,560 mm Or customized |
| Key words: | Tri Axle Trailers , 40ft Flatbed Trailers , 40ft Container Semi Trailers |
| Suspension: | Mechanical Suspension Or Air Suspension |
| Payload: | 60Tons |
| Container locks: | 12 Units |
| Landing Gear: | JOST 28 Tons |
| Price: | negotiation |

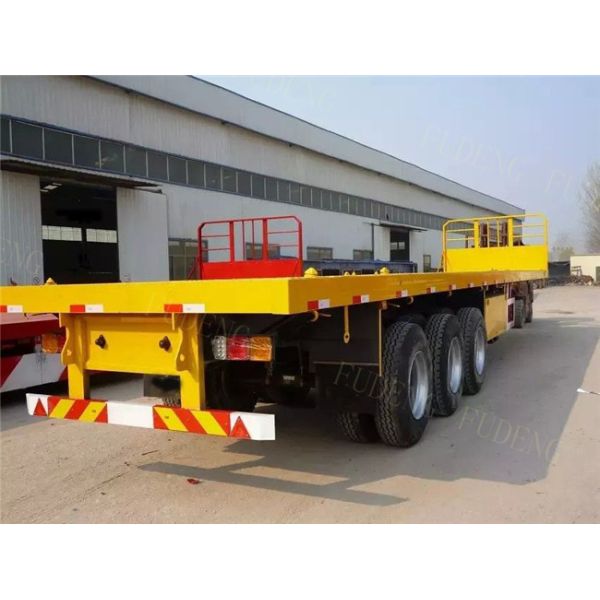

4 Axles 40ft flatbed container trailers load capacity 30-80Tons with strength chassis
Flatbed container trailers Distinguishing Features:
1. Steel structure: Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.
2. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.
3. Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.
4. Automatic tire inflation and pressure sensor system is optionally available for enhanced safety and better fuel economy.
5. State-of-the-art detection devices: Components, hardness, and phase of metal are analyzed to ensure the standards of processed material; Weld seam defects, paint thickness and adhesuveness are checked and amended to guarantee the quality of finished products.
| 3 AXLE FLATBED CONTAINER TRAILER | |
| DIMENSIONS | |
| Tare weight | 7000kg |
| Size | 13000mm*2500mm*1650mm |
| Payload | 60Tons |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
| Side beam | 16# channel steel(Q235) |
| Cross member | 10# channel steel(Q235) |
| Floor | 3mm checkered plate |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension |
| Leaf spring | 10pcs*90*13mm |
| Tire | 12R22.5 double star brand 12pcs |
| Wheel rim | 9.0-22.5 better brand 12pcs |
| Kingpin | 2” bolt-in king pin |
| Landing gear | Heavy duty landing gear 28T |
| Twist lock | 12pcs |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| Light | LED 8 side lights and 2 rear lights 2 width lamp |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | two standard tool box,one spare tire carrier,one crank,one shaft headwrench,four side light,two rear light |
| Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
Flatbed container trailers container locks.
