| Categories | Side Wall Semi Trailer |
|---|---|
| Brand Name: | Fudeng |
| Model Number: | FDZH330411 |
| Certification: | CE , CCC , ISO9001 , etc . |
| Place of Origin: | Shandong,China |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T,, Western Union |
| Supply Ability: | 80 sets cattle semi trailer per week |
| Delivery Time: | 20-30 work days after 30% deposit |
| Packaging Details: | Nude packing. Bulk cargo or RORO shipping |
| Axle: | BPW or FUWA brand |
| King pin: | 50# or 90# |
| Size: | Buyer's Request |
| Landing Gear: | 28ton |
| Brake System: | WABCO |
| Keywords: | Cattle trailer |
| LOGO: | As your request |
| Warranty: | 2 year |
| Price: | negotiation |

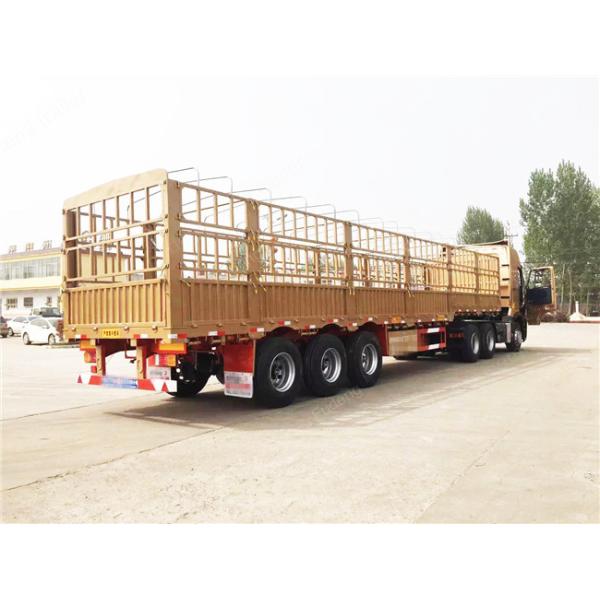

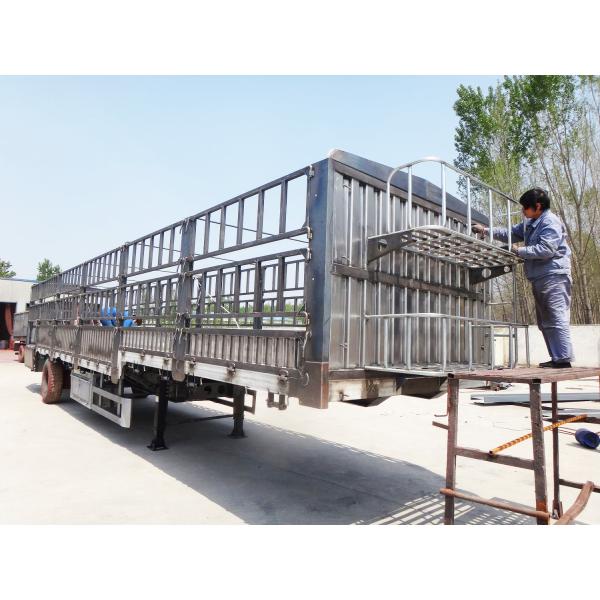

Cattle transport trailer / side wall semi trailer / animal delivery trailers
According your needs,wo can choose BPW axle or FUWA axle,air suspension or leaf spring suspension.We adopt 6 big double air chamber.
We have our own spare parts departments,have strong production and distribution capability.We can satisfy your demand within 2-7days.
Specification
| 3 axle Cattle semi trailer | ||
| General | ||
| Overall dimension(MM) | 13000*2500*3600(mm) | |
| Function | Transport cargo like animal, vegetable | |
| Loading weight (KG) | 40,000 | |
| Tare weight(KG) | 7000 | |
| Wheel base(MM) | 8580+1310+1310 | |
| Running gear | ||
| Axle brand | FUWA 13T axle | |
| Axle number | Three | |
| Suspension system | Leaf spring suspension | |
| Leaf spring | 10/10/10 | |
| Tire type and quantity | 11R22.5 12pcs | |
| Brake system | Dual line system | |
| Brake air chamber | Six big double air chamber | |
| Under Frame | ||
| Main beam(MM) | height:500; upper plate: 14; down plate: 16; middle plate: 8; | |
| Thickness | Bottom:3mm; side:1.5mm | |
| King pin | 50mm(2'') or 90mm(3.5'') | |
| Landing gear | 28T standard | |
| Appedix | tool box | (1.4-1.6)m*0.5m*0.5m with One set |
| spare wheel bracket | Two | |
| Electrical& others | ||
| Elecitric system | 1.Voltage: 24V 2. Receptacle: 7 ways( 7 wire harness) | |
| Tail lamp with turm signal, brake light& refector and side lamp | ||
| One set 6-core standard standard cable | ||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint | |
| Packing | Nude, polish with wax before shipping | |
| Shipping | Transfer to Qingdao port and carry by container ship. | |
Pictures
24 HOURS online services
Regularly callback to know the vehicle’s working status.
Timely parts supply guarantee vehicles work continuously.
|
