| Brand Name: | LEDIKA |
| Model Number: | TRS |
| Certification: | TUV |
| Place of Origin: | Guangzhou,China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50,000M/ month |
| Delivery Time: | 15-20 working days |
| Packaging Details: | Carton with film / Flight case / Wooden box |
| Material: | 6082-T6 Aluminum Alloy |
| Product: | Aluminum Spigot Truss |
| Type: | Bolt/Spigot/Folding |
| Color: | Red/Black/Sliver(custmoized) |
| Span: | 12-36m (customized) |
| Shape: | Triangle,or Square, Oblong, |
| Length: | 0.5m-4m |
| Application: | Concert, Party, Wedding |

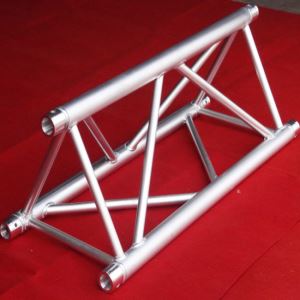

Durable Triangular Aluminum Spigot Truss Lighting Trusses
Customized Shape
Product Description
Aluminum Triangular Spigot Truss is made of international standard
aluminum 6082 , with the advantages of beautiful appearance,small
volume, easy to set up and transport, it also has the advantages of
excellent compressive and anticorrosive performance; the truss
average loading can meet many kinds of performances, business
conferences audio equipment requirements. Other irregular shapes
can be customized according to your requirements.
Material
Truss section specification(L*W): mm= millimeter
Light Series
| Size of Truss | 287x287mm | 290x290mm | 300x300mm | 305x305mm |
| Connection | Spigot | Bolt/Spigot | Bolt | Bolt |
| Truss main tube | Diameter Ø 50mm , Thickness 3mm | Diameter Ø 50mm , Thickness 3mm | Diameter Ø 50mm , Thickness 3mm | Diameter Ø 50mm , Thickness 3mm |
| Truss sub-tube | / | Diameter Ø 20mm , Thickness 2mm | Diameter Ø 25mm , Thickness 2mm | Diameter Ø 25mm , Thickness 2mm |
| Truss brace tube | Diameter Ø 20mm , Thickness 2mm | Diameter Ø 20mm , Thickness 2mm | Diameter Ø 25mm , Thickness 2mm | Diameter Ø 25mm , Thickness 2mm |
| Truss Joint | Diameter Ø 50mm | Mould die | 50x25mm | 100x10mm |
| Max Loading | 520-800kg | 720-1200kg | 600-1100kg | 640-920kg |
| Max Span | 12m | 12m | 12m | 12.2m |

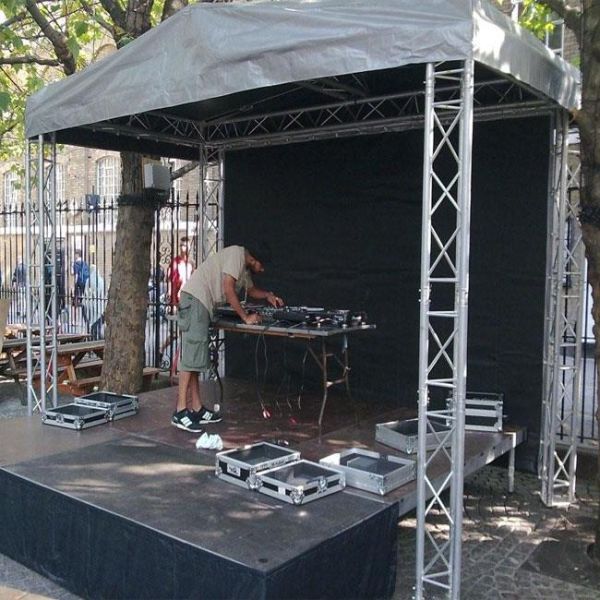

Applications:
1.Celebration services: opening ceremonies, anniversary
celebrations, housewarming celebration; opened the ribbon-cutting,
the launching ceremony, the unveiling ceremony,
the groundbreaking ceremony for the completion ceremony, capping ceremony, the foundation stone laying ceremony, , the signing ceremony, the listing ceremony,, public relations etiquette; promotion of new products, awards ceremony;
2.Performances service: Business promotional performances, thank
and return banquet, theatrical show, the models show,the ethnic
features performances, Chinese and foreign
star invitation; stage design, and production of the lighthouse for performing arts, performances facility ,stage lighting truss.
Pictures



Welcome to contact us for a long term cooperation !
|
