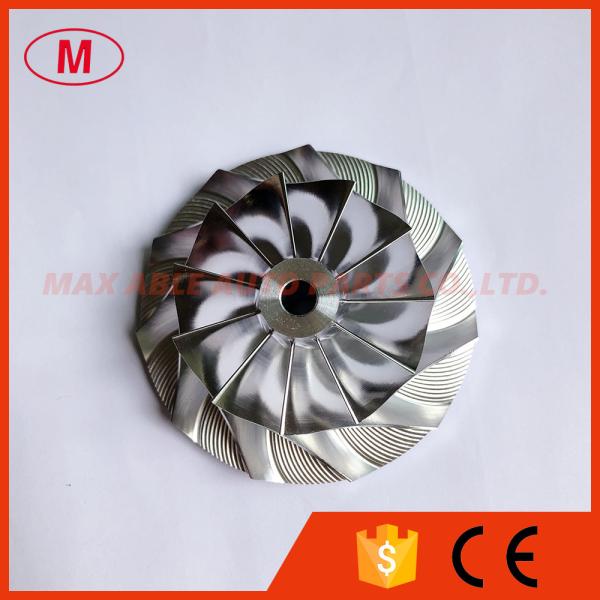

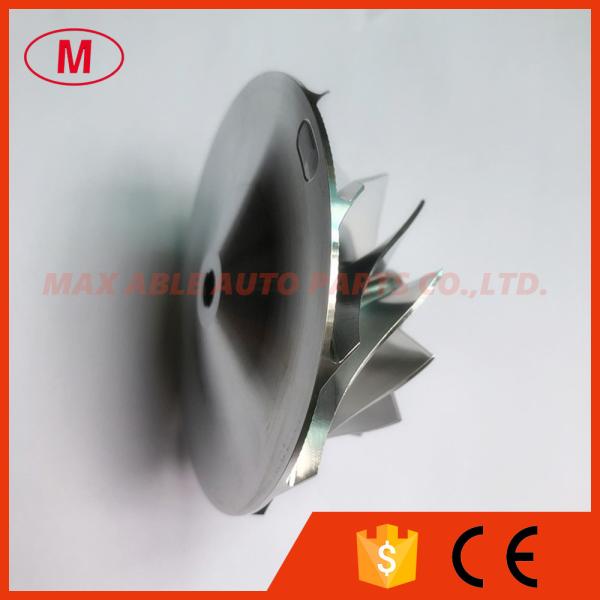

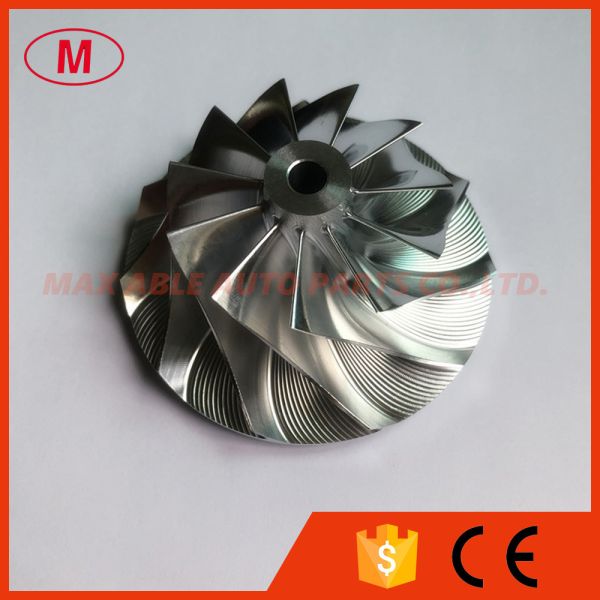

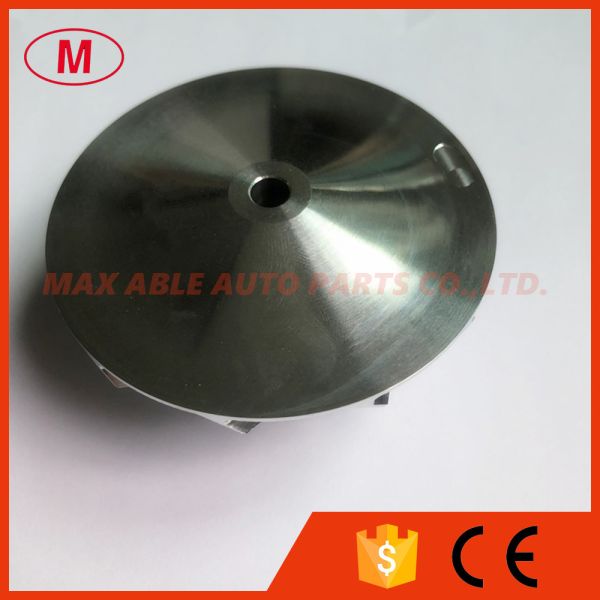

HX35 3537168 53.88/81.30 mm 11+0 blades turbo milling/aluminum 2618/billet compressor wheel for KOMATSU/6BT/6BTA

1. MODEL:HX35 forward

2.HX35 3537168 53.88/81.30mm 11+0 blades turbo Billet/milling/aluminum 2618 compressor wheel for 3539699/3539698/3539700/3590032/6735-81-8021/6735-81-8301/6735-81-8041 /3804877 Komatsu /6BT/6BTA

3.Size:

Nose diameter:15.89mm

Inducer:53.88mm

exducer:81.30mm

Tip height:5.78mm

OE exducer:81.94mm

Superback:5.01mm

bore size :7.00mm

bore type:through

Overall height:39.50mm

Cutback:0.0

SP Height angle:0.00

Trailing Angle:40 degree

Blades height:29.35mm

Splitter height:0.00mm

11+0 blades forward

Fit for OE compressor housing

Tapered tip Angle:0 degree

Application:

3539699

3539698

3539700

3590032

6735-81-8021

6735-81-8301

6735-81-8041

3804877

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
