203-60-63102 203-60-63101 TZ270B1000-00 PC100-6 PC120-6 PC130-6 Komatsu Excavator Final Drive

203-60-63102 203-60-63101 TZ270B1000-00 PC100-6 PC120-6 PC130-6 Komatsu Excavator Final Drive

Spec Sheet

Excavator spare parts name	Travel reduction gear
Equipment Model	PC100 120 130
Parts egory	excavator final drive
Spare parts Condition	Brand new
MOQ of order(PCS, SET)	1
Parts Availability	In stock
Delivery Lead time	1-3 days

Appliion

EXCAVATOR PC100 PC120 PC130 -6 Komatsu

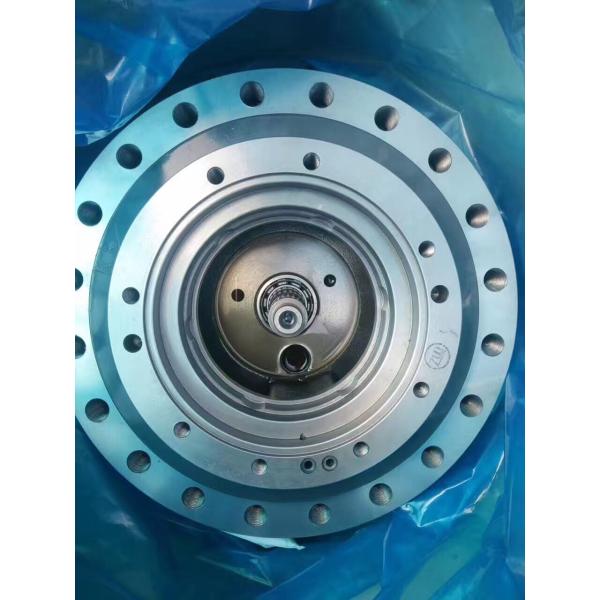

Product Photos

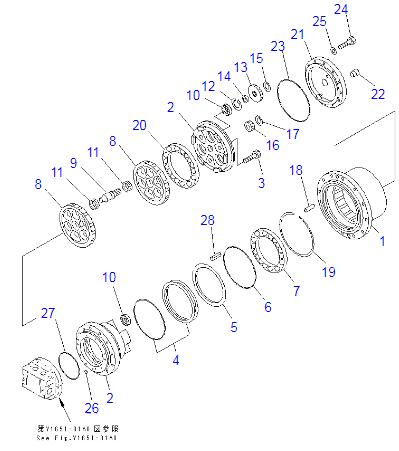

Parts Diagram

203-60-63102[2]- TRAVEL MOTOR ASS'Y Komatsu ["SN: 47571-@"] analogs:[] |$0. Weight: 150 kg.

203-60-63101[2]- TRAVEL MOTOR ASS'Y Komatsu ["SN: 45001-47570"] analogs:[] |$1. Weight: 177.01 kg.

TZ201B1000-03[1]- FINAL DRIVE ASS'Y Komatsu China ["SN: 45001-47570"] analogs:[] |$4.

1.TZ240B1001-00[1]- HUB Komatsu ["SN: 45001-47570"] analogs:[] Weight: 44 kg.

TZ200B1102-03[1]- SPINDLE KIT Komatsu China ["SN: 45001-47570"] analogs:["TZ200B110202", "TZ200B113203", "TZ200B113202"] |$6.

2.TZ200B1132-03[1]- SPINDLE ASS'Y Komatsu China ["SN: 45001-47570"] analogs:["TZ200B110202", "TZ200B110203", "TZ200B113202"]

3.TZ200B1019-02[3]- BOLT,REAMER Komatsu ["SN: 45001-47570"] analogs:["TZ200B101903"] Weight: 0.344 kg.

4.TZES100-250-A[1]- SEAL,FLOATING (K1) Komatsu ["SN: 45001-47570"] analogs:[] Weight: 1.21 kg.

5.TZ200B1010-00[1]- PIECE,DISTANCE Komatsu ["SN: 45001-47570"] analogs:[] Weight: 1.55 kg.

6.07000-15290[1]- O-RING (K1) Komatsu OEM ["SN: 45001-47570"] analogs:["0700005290"] Weight: 0.032 kg.

7.TZ200B1021-00[1]- BEARING Komatsu ["SN: 45001-47570"] analogs:["TZ200B102101"] Weight: 3.41 kg.

TZ200B1104-02[1]- RV GEAR ASS'Y Komatsu ["SN: 45001-47570"] analogs:["TZ263B110400"] |$13. Weight: 19kg.

8.TZ200B1204-01[1]- RV GEAR KIT Komatsu ["SN: 45001-47570"] analogs:["TZ263B120400"] Weight: 10 kg.

9.TZ200B1009-01[3]- SHAFT,CRANK Komatsu ["SN: 45001-47570"] analogs:[] Weight: 1.397 kg.

10.TZ200B1022-00[6]- BEARING Komatsu ["SN: 45001-47570"] analogs:[] Weight: 0.56 kg.

11.TZ200B1023-00[6]- BEARING Komatsu ["SN: 45001-47570"] analogs:[] Weight: 0.26 kg.

12.TZ150A1020-00[3]- SNAP RING KIT (12 KINDS) Komatsu ["SN: 45001-47570"] analogs:[] Weight: 0.925 kg.

13.TZ201B1107-01[1]- SPUR GEAR KIT (3 PIECES) Komatsu China ["SN: 45001-47570"] analogs:[]

14.TZ200B1014-01[3]- PIECE,DISTANCE Komatsu ["SN: 45001-47570"] analogs:[] Weight: 0.04 kg.

15.04064-03515[3]- RING,SNAP Komatsu ["SN: 45001-47570"] analogs:[] Weight: 0.005 kg.

16.TZ201B1006-00[1]- GEAR,INPUT Komatsu ["SN: 45001-47570"] analogs:[] Weight: 0.327 kg.

17.04064-02815[1]- RING,SNAP Komatsu China ["SN: 45001-47570"] analogs:["YM22242000280"]

18.TZ200B1017-00[24]- PIN Komatsu China ["SN: 45001-47570"] analogs:[]

19.TZ700C1016-00[1]- RING Komatsu China ["SN: 45001-47570"] analogs:[]

21.TZ200B1008-00[1]- COVER Komatsu China ["SN: 45001-47570"] analogs:[]

22.TZGM1-2[2]- PLUG Komatsu ["SN: 45001-47570"] analogs:["TZHP000012"] Weight: 0.025 kg.

23.TZARP568-378-9[1]- O-RING (K1) Komatsu ["SN: 45001-47570"] analogs:[] Weight: 0.026 kg.

24.01010-31245[12]- BOLT Komatsu China ["SN: 45001-47570"] analogs:["01010E1245", "0101061245"] Weight: 0.056 kg.

25.TZSW-M12[12]- WASHER Komatsu China ["SN: 45001-47570"] analogs:["R0SW001220", "TZR0SW001220", "TZSW001220"]

26.07000-11008[2]- O-RING (K1) Komatsu China ["SN: 45001-47570"] analogs:["0700001008", "2016018950"]Weight: 0.01 kg.

27.TZJW1516-G41-9[1]- O-RING (K1) Komatsu ["SN: 45001-47570"] analogs:[] Weight: 0.01 kg.

28.TZJB2808-4-14[1]- PIN,SPRING Komatsu China ["SN: 45001-47570"] analogs:[]

K-1.TZ220B9000-00[1]- SERVICE KIT Komatsu China ["SN: 45001-47570"] analogs:[]

07000-15145[1]- O-RING Komatsu China ["SN: 45001-47570"] analogs:["0700005145"] |$37. Weight: 0.02 kg.

TZ231F2023-00[1]- RING,BACK-UP Komatsu ["SN: 45001-47570"] analogs:[] |$38. Weight: 0.01 kg.

07000-15170[1]- O-RING Komatsu OEM ["SN: 45001-47570"] analogs:["0700005170"] |$39. Weight: 0.02 kg.

TZSUN-2BG170[1]- RING,BACK-UP Komatsu ["SN: 45001-47570"] analogs:[] |$40. Weight: 0.01 kg.

TZTCN-32-52-11[1]- SEAL,OIL Komatsu China ["SN: 45001-47570"] analogs:["R00S325211", "TZR00S325211", "TZOS325211", "TZ03205211", "TZ0S325211", "TZTCH325211", "TZ00S325211"] |$41.

07000-11009[1]- O-RING Komatsu ["SN: 45001-47570"] analogs:["0700001009"] |$42. Weight: 0.001 kg.

07000-13032[1]- O-RING Komatsu China ["SN: 45001-47570"] analogs:["YM24321000350", "YM24311000320", "0700003032"] |$43. Weight: 0.002 kg.

07000-11006[2]- O-RING Komatsu ["SN: 45001-47570"] analogs:["0700001006"] |$44. Weight: 0.01 kg.

07000-12020[2]- O-RING Komatsu ["SN: 45001-47570"] analogs:[] |$45. Weight: 0.001 kg.

07002-02034[1]- O-RING Komatsu China ["SN: 45001-47570"] analogs:["0700002034", "0700212034", "0700012034"] |$48. Weight: 0.94 kg

Description

The Final Drive reducer gearbox is the last component in the Power Train with undercarriage drive system, producing the final speed reduction and torque increase.

Attributes: Heavy Duty Final Drives are designed to be rebuilt and reused.The belowing following gear components are included in the final drive: sun gear, planetary gear, carrier, ring gear, hub, motor housing, needle bearing, roller bearing, seal.

Advantage

1. The gear parts are built to fit to the genuine drive gearbox system.

2. The gear parts are supplied strictly according to the genuine parts alog.

3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.

4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB

Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Cutomer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

Packing & Delivery

* Strong carton or wooden box for gear components. Wooden box for gearbox assembly

* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX

Product Tags:


*From:	Your email address is incorrect!
*To:	Guangzhou Anto Machinery Parts Co.,Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Excavator Final Drive
Brand Name:	OEM
Model Number:	PC120-6
Place of Origin:	China
MOQ:	1 PCS
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability:	100-2000
Delivery Time:	3-7 working days
Packaging Details:	Wooden box for heavy parts, paper carton for light parts
egory:	Excavator Final Drive
Excavator Type:	Crawler Excavator
Excavator Brand:	Komatsu
Packing:	Wood Box, Standard Carton, Pallet
Parts No.:	203-60-63102 203-60-63101 TZ270B1000-00
Weight:	150 KG
