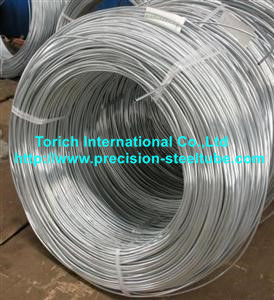

Length 0.6m Low Carbon Steel Tube Galvanized Bundy Pipe Coils DC01 for Automobile Brake System

DIN EN 10130:2007-02 Cold rolled low carbon steel flat products for cold forming – Technical delivery conditions

This European Standard applies to cold rolled uncoated low carbon steel flat products in rolled widths equal to or over 600 mm for cold forming, with a minimum thickness of 0,35 mm and, unless otherwise agreed at the time of inquiry and order, equal to or less than 3 mm, delivered in sheet, coil, slit coil, or cut lengths obtained from slit coil or sheet.

It does not apply to cold rolled narrow strip (rolling width < 600 mm) nor to flat cold rolled products for which there is a specific standard, in particular the following:

— cold rolled non-grain oriented magnetic steel sheet and strip (EN 10106);

— semi-processed steel strip for the construction of magnetic circuits (EN 10126 and EN 10165);

— blackplate in coils (EN 10205);

— cold rolled flat products in high yield strength steels for cold forming (EN 10268);

— cold rolled uncoated non-alloy mild steel narrow strip for cold forming (EN 10139);

— cold rolled low carbon steel flat products for vitreous enamelling (EN 10209).

Size:

OD 4.6-10.6mm

WT 0.35-1.0mm

Length 0.6m or according to customer's request

Application: For automobile and refrigeration industry

Steel name	Steel number	Classification according to EN 10020	Surface quality	Absence of stretcher strain marks
DC01 e	1.0330	Non-alloy quality steel f	A	-
			B	3 months
DC03	1.0347	Non-alloy quality steel f	A	6 months
			B	6 months
DC04	1.0338	Non-alloy quality steel f	A	6 months
			B	6 months
DC05	1.0312	Non-alloy quality steel f	A	6 months
			B	6 months
DC06	1.0873	Non-alloy quality steel	A	No limit
			B	No limit
DC07	1.0898	Non-alloy quality steel	A	No limit
			B	No limit

Steel name	Re a	Rm	A80 b	r90 c d	n90 c	Ladle analysis chemical composition
Steel name	MPa	MPa	min. %	min.	min.	C max. %	P max. %	S max. %	Mn max. %	Ti max. %
DC01 e	-/280 g i	270/410	28	-	-	0.12	0.045	0.045	0.60	-
DC03	-/240 g	270/370	34	1.3	-	0.10	0.035	0.035	0.45	-
DC04	-/210 g	270/350	38	1.6	0.180	0.08	0.030	0.030	0.40	-
DC05	-/180 g	270/330	40	1.9	0.200	0.06	0.025	0.025	0.35	-
DC06	-/170 h	270/330	41	2.1	0.220	0.02	0.020	0.020	0.25	0.3j
DC07	-/150 h	250/310	44	2.5	0.230	0.01	0.020	0.020	0.20	0.2j
NOTE: 1 MPa = 1 N/mm 2.
a The values of yield strength are 0.2 % proof strength for products which do not present a definite yield point, and the lower yield strength ReL for the others. When the thickness is less than or equal to 0.7 mm and greater than 0.5 mm, the value for yield strength is increased by 20 MPa. For thicknesses less than or equal to 0.5 mm, the value is increased by 40 MPa. b When the thickness is less than or equal to 0.7 mm and greater than 0.5 mm, the minimum value for elongation is reduced by 2 units. For a thickness less than or equal to 0.5 mm, the minimum value is reduced by 4 units. c The values of r90 and n90 only apply to products with a thickness equal to or greater than 0.5 mm. d When the thickness is over 2 mm, the value for r90 is reduced by 0.2. e It is recommended that products in grade DC01 should be formed within 6 weeks from the time of their availability. f Unless otherwise agreed at the time of enquiry and order, grades DC01, DC03, DC04 and DC05 may be supplied as alloy steels (for example with boron or titanium). g For design purposes the lower limit of Re for grades DC01, DC03, DC04 and DC05 may be assumed to be 140 MPa. h For design purposes the lower limit of Re for grade DC06 may be assumed to be 120 MPa and 100 MPa for grade DC07. i The upper limit of Re of 280 MPa for grade DC01 is valid only for 8 days from the time of the availability of the product. j Titanium may be replaced by niobium. Carbon and nitrogen shall be completely bound.

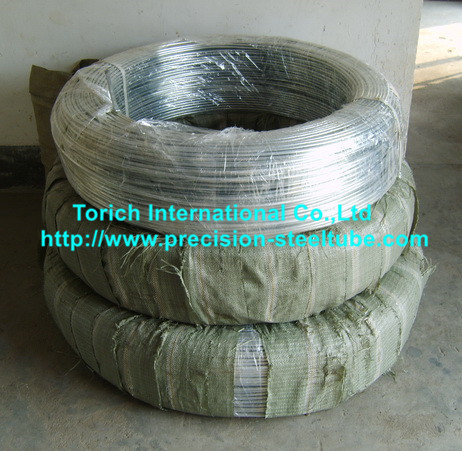

Product Pictures:

Company Introduction:

Quality Control:

1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing and Cold Rolling, on line inspection
5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
6. Straightening-Cutting to specified length-Finished Measuring Inspection
7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8. Packing and Stocking.

100% of our steel tubes are dimensionally checked
100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.

FAQ:

Q: Are you trading company or manufacturer ?

A: A professional steel pipes materials inventor, manufacturer and solution provider

Q: How long is your delivery time?

A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.

Product Tags:


*From:	Your email address is incorrect!
*To:	TORICH INTERNATIONAL LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Special Steel Pipe
Brand Name:	Torich
Place of Origin:	China
Payment Terms:	L/C, T/T
Model Number:	DIN EN 10130
Certification:	ISO 9001 ISO14001
MOQ:	100kgs
Price:	1.5-3.0 USD/kg
Supply Ability:	2000tons per month
Delivery Time:	6-8 weeks
Packaging Details:	In bundles or according to customer's request
Application:	for Automobile Brake System
Alloy or not:	acc to customer's requirement
Technique:	Welded or Seamless
Thickness:	0.1-1mm
Standard:	ASTM
Surface treatment:	Galvanized
