| Brand Name: | ZW |
| Model Number: | B2, B3, 60Mn, C45, and chrome ball |
| Certification: | ISO9001-2008, SGS, BV, TUV |
| Place of Origin: | Shandong, China |
| MOQ: | 10Tons |
| Price: | Negotiable |
| Supply Ability: | 4000 Tons per month |
| Delivery Time: | 3-5 days |
| Packaging Details: | 1 ton in bag or 900kgs in steel barrel |
| Material: | B2, 60Mn, C45,B3 and high or low chrome |
| Size: | Dia 20-140mm |
| Hardness: | 50-55HRC |
| Packing: | Bag or steel drum |
| Broken rate: | <0.5% |
| Inspection: | SGS,BV, TUV |
| Company Info. |
| Jinan Zhongwei Casting And Forging Grinding Ball Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Cast iron and forged Grinding Steel balls factory directly sale
Forged ball Specification:
| Diameter (mm) | Material | Chemical elements | Hardness (HRC) | ||||
| C | Si | Mn | P/S | Cr | |||
| 20-125 | C45 | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | ≤0.25 | 48-55 |
| 20-140 | 60Mn | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 56-62 |
| 20-125 | B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.025 | 0.4-0.6 | 57-64 |
| 60-140 | B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | <0.025 | 0.7-0.9 | 56-65 |
Hot Rolling Ball Specification:
| Diameter (mm) | Material | Chemical elements | Hardness (HRC) | ||||
| C | Si | Mn | P/S | Cr | |||
| 20-40 | C45 | 0.42-0.50 | 0.17-0.37 | 0.5-0.8 | <0.035 | ≤0.25 | 55-58 |
| 20-40 | 60Mn | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | <0.04 | <0.25 | 58-62 |
| 20-40 | B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | <0.025 | 0.4-0.6 | 60-64 |

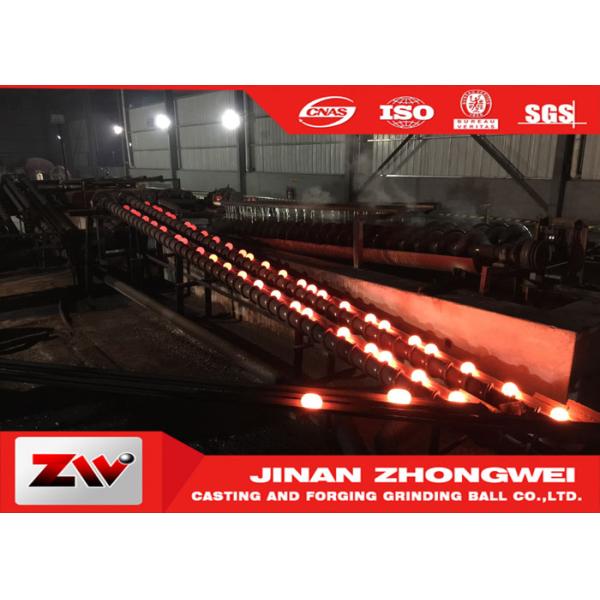

Production Line
1) Traditional Forged
Raw material →Cutting →Heating → Water quenching → Tempering

Packing
1000kgs in a bag or 850-900kgs in a steel drum, then 25 tons in a 20GP Container

Company Profile
Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150
staff, including 13 technical staff. Annual output is 50000 tons to
80000 tons .
Main products : forged steel ball, cast iron ball ,grinding rod,
cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa,
Peru, Chile, Australia, UK, USA, Turkey and so on.

|
