| Categories | Tungsten Carbide Plate |
|---|---|
| Brand Name: | Rixin |
| Model Number: | YM6A |
| Certification: | ISO 9001:2008 |
| Place of Origin: | China |
| MOQ: | 1KG |
| Price: | 65 UDS/KG ~ 50 USD/KG |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30+tons+per month |
| Delivery Time: | 7-20 days |
| Packaging Details: | carton |
| Product name: | carbide board |
| Material: | virgin |
| Density: | 14.85 |
| Hardness: | 92.5 HRA |
| Thickness: | 1.5-66mm |
| T.R.S: | 2000 MPa |
| Application: | wear-resistant parts |
| Customize: | Yes |
| Finish: | Blank/polish/ground |
| certificate: | ISO9001:2008 |
| Company Info. |
| Zhuzhou Mingri Cemented Carbide Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

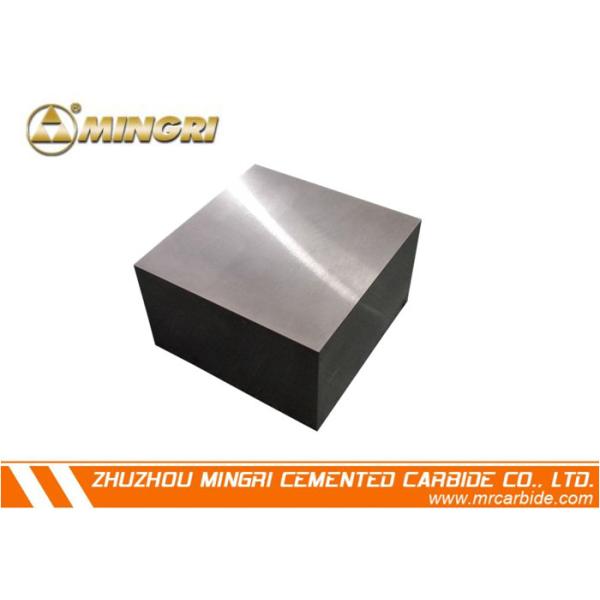

High quality sintered tungsten carbide plates YG8 92% Wc
Specification of tungsten carbide plate:
1. High wear resistance.
2. 5 Tons sell a month.
3.18 Tons output per month.
4. Various types available.
5. ISO9001:2008,CQC.
6.Fully adopted in advanced technology
| L | W | S |
| 200 | 200 | 15-45 |
| 150 | 150 | 15-45 |
| 150 | 100 | 15-45 |
| 150 | 130 | 15-45 |
| 150 | 80 | 15-45 |
| 120 | 120 | 15-45 |
| 100 | 100 | 15-50 |
| 100 | 50 | 15-50 |
| 100 | 45 | 15-50 |
| 80 | 55 | 10-50 |
| 80 | 40 | 10-50 |
| ... | ... | ... |
Description of tungsten carbide plate:
HIP tungsten carbide plate for cutting we supply many evere day. It
could be ground or unground.It is very high wear resistance to help the
application life.
We can supply various size for you,and can guarantee the quality
also send the goods in shor time.
Application of Cemented Carbide Plate
| Grade | Density | Hardness | T.R.S | Performance&application recommended |
| g/cm3 | HRA | Mpa | ||
| YG6A | 14.85 | 92.5 | 2000 | Fine grain alloy,good wear resistance,it is suitable for manufacturing forming cutter,wear-resistant parts etc |
| YG8 | 14.7 | 89.8 | 2800 | High bending strength,wear resistance lower than YG6A,suitable for manufacturing forming cutter,wear-resistance part etc |
| YG11 | 14.4 | 88.5 | 2900 | |
| YG15 | 14 | 87 | 3000 | suitable for manufacturing punching dies,wear-resistant parts |
Company brief overview:
Zhuzhou Mingri Tungsten Carbide Co., Ltd. was established in May of
2001 with the investment of RMB 40 million. We have up-to-date
production machine line and a lot of technicians.
Zhuzhou MingRi Cemented carbide co.,ltd is located in the tungsten
carbide hometown , convenient transportation, from changsha airport
just 40 minutes, wuhan just 1.5 hour, from guangzhou just 2 hours.
A favorable peripheral environment for cemented carbide
manufacturing provides a natural barrier. Convenient traffic for
tomorrow's internationalization laid a wide road.
We specialize in various of tungsten carbide products. Our products
are sold to the UK, Europe, Japan, Korea, Taiwan area and Southeast
Asia.

                             |
