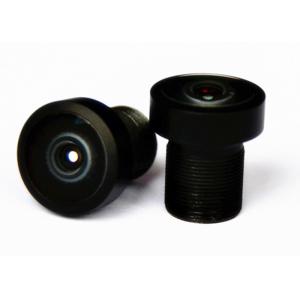

1/3"~1/7.5" 1.08mm 12Megapixel M7x0.35 mount 206degree fisheye lens, wide angle lens for OV4689 OV7251

1/3" ~ 1/7.5" 1.08mm 12Megapixel M7x0.35 mount 206degree Super Fisheye Lens for OV4689/OV7251, special wide angle lens for VR/Security/Doorbell/Vehicle cameras

Model: 130108MPF-M7
IMAGE FORMAT: 1/3" ~ 1/7.5"

MAX. IMAGE CIRCLE: Φ2.9
FOCAL LENGTH(mm): 2.2
F.O.V.(D*H*V): OV4689 206°*206°*206°; OV7251 141°*108°*78.5°
RESOLUTION: 12MP
APERTURE: F2.2

DISTORTION: OV4689 <-117.7%; OV7251 <-39.5%
MOUNT(mm): M7x0.35
B.F.L.(O) 2.22mm
B.F.L.(M) 1.23mm
TTL: 12.0mm
R.I.: OV4689>67.7%, OV7251 >85%
C.R.A.: OV4689 <20.26°, OV7251 <16.87°

DIMENSION(mm): Φ10x10.77
LENS COMPOMEMT: 6G+IR-Cut

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- M12 or M7 mount option

M12 version 1: http://www.ccom-tech.com/sale-9208400-1-3-1-08mm-3megapixel-s-mount-m12-206degree-wide-angle-fisheye-lens-for-ov4689.html

M12 version 2: http://www.ccom-tech.com/sale-9208398-1-3-1-08mm-3megapixel-s-mount-m12-206degree-wide-angle-fisheye-lens-for-ov4689.html

We are professional supplier of CCTV & Video Lenses in China. We specialize in Megapixel Fisheye Lenses, Megapixel S-Mount(M12x0.5) Board Lenses, Megapixel M10/M9/M8/M7/M6/M5 Mount Lenses, CCTV Lenses/Medical Lenses, Pinhole Lenses, C Mount Lenses/ITS Lenses for Highway monitoring application, Vari-focal M12x0.5 Mount Lenses, Vari-Focal CS Mount Lenses, Megapixel Vari-Focal C/CS Mount Lenses, Fixed/Mono-Focal CS Mount Lenses, Megapixel Fixed/Mono-Focal CS Mount Lenses, ...

These products have countless applications in the security, medical, military, environment monitoring, aerospace, and other high-tech industries, and they are also used in medical imaging equipment, mini projectors, and optical, laser and infrared instruments.

We are committed to the R&D, design, manufacture and marketing of an extensive line of optical products. Any lens you need we could source, design and manufacture for you.

If you are interested in our optical products, please feel free to contact us. We are looking forward to our future cooperation and long-term partnership.
