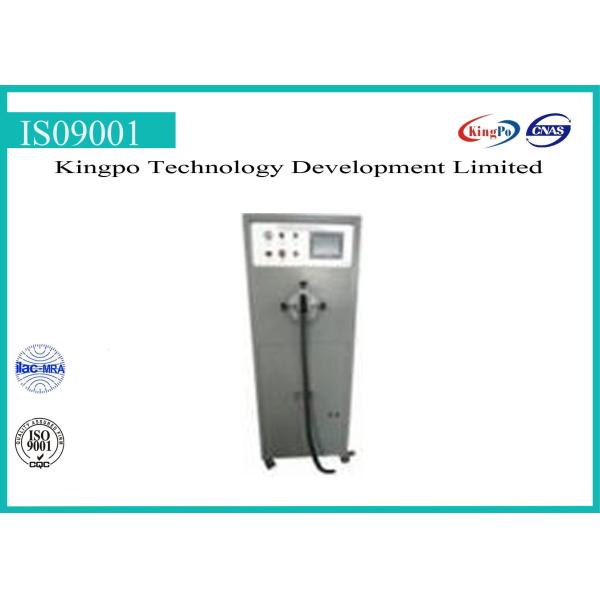

GB/T4288-2008 Electrical Appliance Tester
Pipe Bending Tester For Washing Machine , Drain Pipes For Washing
Machines Tester
Product information:
This tester is according to GB/T4288-2008 standard of household
electric washing machine to design and manufacture, suitable for
water inlet and drain-pipe of the washing machines for bending life
test, it can also suitable for bending test of the power cord.
This instrument uses PLC control, 7-inch color touch screen
operation to setup parameters, and by a stepping motor and
synchronous belt drive to achieve manipulator reciprocal pendulum
movements, thus to test the bending performance of the water inlet
and drain-pipe of the washing machines. The number of test times,
angle and speed can be preset, it will automatically shut down when
arrive to the preset times.
This device consists of:
1. PLC control system + touch screen operation system
2. Stepping motor and synchronous belt drive system
3. Fixtures
Technical specifications and parameters:
| Control way | PLC control,7 inch touch screen |
| Display mode | Touch screen display |
| Rack construction | High-grade aluminum, coating steel, stainless steel, etc. |
| Power supply | AC 220V 50HZ |
| Specimen clamping mechanism | A convenient and accurate specimen card installed, eccentricity 60mm, clamping test range 0-60mm, both suitable for water inlet and drain-pipe bending test and bending test of the power cord |
| Working speed | 50±10 per minute,speed is adjustable |
| Counter test and nodal points | 0-999999 can be preset; First the sample bend 0-90 ° from vertical position to the left side, count after it come back to the vertical position, and then bend 0-90°from the right side, count again when come back to vertical position, it will not make any stop during the middle vertical position |
| Bending angle | 0-180°adjustable ,right and left each is 0-90°,adjustable |
| Station | Single station |
| Operating environment | Normal temperature |
| Meet the standards | GB4288-2008 |
|
