| Brand Name: | SHAN CABLE |
| Model Number: | CU/MICA//XLPE/LSOH |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 500m |
| Price: | 0.5-50 USD |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5000 KM per Month |
| Delivery Time: | 15 working days |
| Packaging Details: | Wooden Iron Drum |
| Standards: | IEC60502. IEC60228 |
| Conductor: | Compact stranded copper conductor |
| lnsulation: | XLPE |
| Wrapping Tape: | LSOH BendingTape |
| Sheath: | LSOH |
| Ratedvoltage: | 0.6/ 1㎸ |
| Corporation: | shenghua group |
| Brand: | Sh Cable |
| Company Info. |
| Shanghai Shenghua Cable (Group) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
WDZAN_YJY 0.6/1kV CU/MICA/XLPE/LSOH

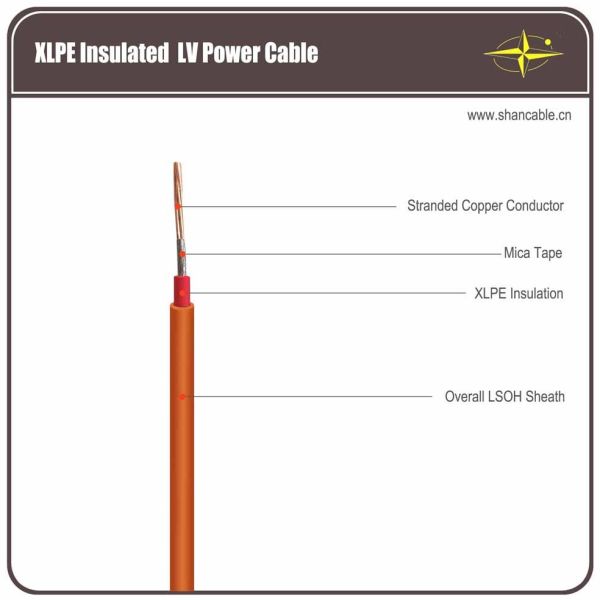

Construction
1 Conductor: Compactstranded copperconductor, Cl.2 as perlEC60228
(11 MicaTape
③lnsulation:XLPE(cross-linkedpolyethylene)ratedat90°C
(1111 Filler
(5: Wrapping Tape: LSOH BendingTape
⑥Sheath:LSOH,blackorothercolors,asperlEC60332,60502-1
CodeDesignation
YJ:XLPEinsulation Y: LSOH sheath
Applications
Forlaying indoors and outdoors.Able to bear certain traction during installation, but not extemal mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards
lnternational: IEC60502. IEC60228, (lEC60332-3forFRcableonly) China: GB/T12706,(GB/T18380-3forFRcableonly)
Otherstandardssuchas BS, DIN andlCEAupon request
Technical data
Ratedvoltage: 0.6/ 1㎸
Maximum Conductor Temperature: under normal (90°C), emergency(130°C) or short circuit no more than5 s(250°C) conditions Min.AmbientTemp.-15°C,lnstallationTemp.0°C
Min.BendingRadius:20xcable0.Dforsinglecore
15xcable0.Dformulticore
