AAAC Bare Overhead Conductors Aluminium Alloy 6201 For Power Transmission Line

Categories Bare Conductor
Brand Name: SHANCABLE
Model Number: AAAC
Certification: ISO,CE,BV,SGS
Place of Origin: China
MOQ: 500m
Price: 0.10-10.99USD/m
Payment Terms: L/C, , T/T
Supply Ability: 1000km per Month
Delivery Time: 15 Days
Packaging Details: Wooden Drum or Steel Drum
Conductor: Aluminium Alloy
Type: High Voltage
Application: Overhead Power Transmission
Wire Core Material: Aluminum Alloy 6201-T81
Number of Wires: 7-37
Material Shape: Round Wire
Corporation: shenghua group
Brand: Sh Cable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AAAC Bare Overhead Conductors Aluminium Alloy 6201 For Power Transmission Line

ASTM B399 AAAC Conductor Aluminium Alloy 6201 Used in Power Transimission Line


1.Application
AAAC conductors are designed to get better strength to weight ratio and offer improved electrical properties, excellent sag-tension characteristics, and superior corrosion resistance when compared with ACSR. As compared to a conventional ACSR conductor, the lighter weight, comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines.


2.Construction

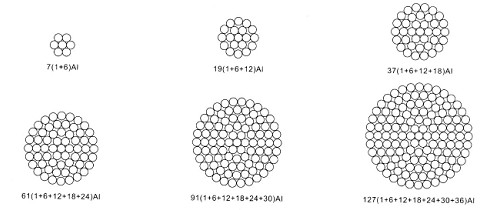

Overhead Stranded All Aluminium Alloy Conductor AAAC

3.Standard:
BS EN 50183, ASTM B399, DIN 48201,IEC61089

4.Specification
BS EN50183

Code nameCalculated areaNo. of wiresDiameterWeightRated strengthMax D.C.
resistance at 20ºC
WireCond
mm2mmmmKg/kmKNΩ/km
Box18.871.855.5551.45.551.7480
Acacia23.872.086.2464.97.021.3828
Almond30.172.347.0282.28.881.0926
Cedar35.572.547.6296.810.460.9273
Deodar42.272.778.31115.212.440.7797
Fir47.872.958.85130.614.110.6875
Hazel59.973.309.90163.417.660.5494
Pine71.673.6110.8195.621.140.4591
Holly84.173.9111.7229.524.790.3913
Willow89.774.0412.1245.026.470.3665
Oak118.974.6514.0324.565.070.2767
Mulberry150.9193.1815.9414.344.520.2192
Ash180.7193.4817.4496.153.310.1830
Elm211.0193.7618.8579.262.240.1568
Poplar239.4372.8720.1659.470.610.1387
Sycamore303.2373.2322.6835.289.400.1095
Upas362.1373.5324.7997.5106.820.0917
Yew479.0374.0628.41319.6141.310.0693
Totara498.1374.1429.01372.1145.930.0666
Rubus586.9613.5031.51622.0173.130.0567
Sorbus659.4613.7133.41822.5194.530.0505
Araucaria821.1614.1437.32269.4242.240.0406
Redwood996.2614.5641.02753.2293.880.0334

5.Characteristics


-- High tension strength ,light weight ,small sag


-- Aluminum with hard surface,anti-extrusion,easy connection,high efficiency construction


-- A good creep resistance


-- Resistant to corrosion ,long service life
