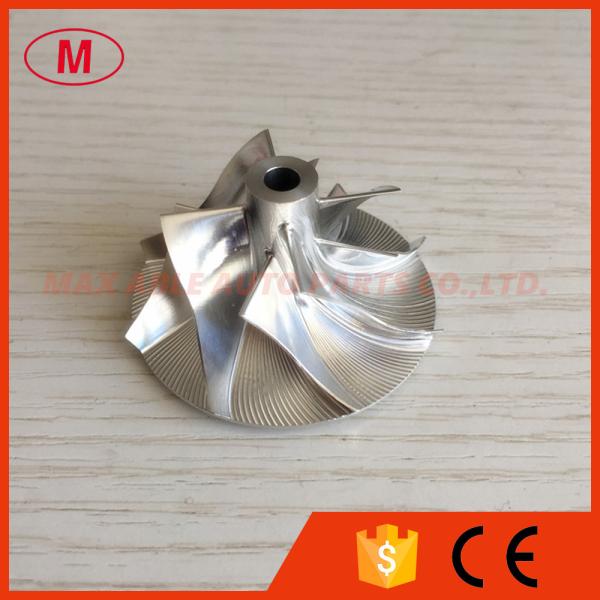

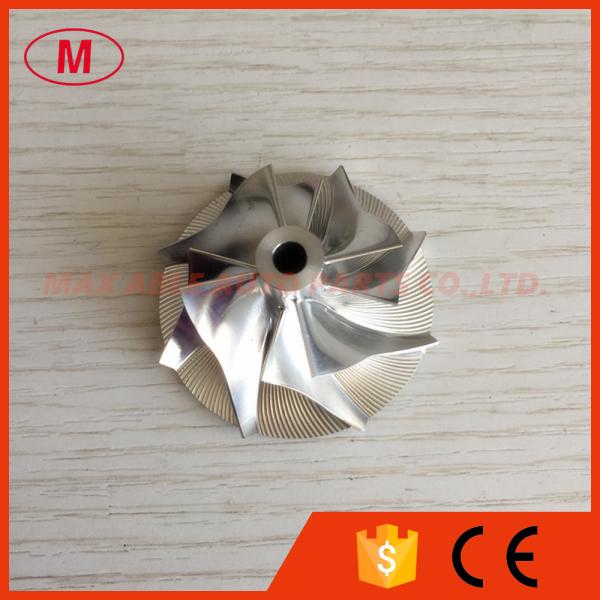

K04 31.50/45.00mm 4+4 blades high performance 5303-123-2011 milling/aluminum 2618/billet compressor wheel

1.Model:K04 Forward
2.K04 31.50/45.00mm 4+4 blades high performance 1302-003-401 5303-123-2011 billet/milling/aluminum 2618 compressor wheel for 5303-970-0003/0006/0007/0008/0015/0016/0017/0020/0036/0069/0070/0077

3.SIZE:

Nose diameter:9.24mm

inducer:31.50mm

Exducer:45.00mm

Tapered tip exducer:47.94mm

Tip height:3.55mm

Superback:1.80mm

Overall height:25.60mm

bore size :4.61mm

bore type:through

Trailing angle :70 degree

Cutback:0.0

Blades height:19.73mm

Splitter height:14.85mm

SP height angle:-1.50

4+4 blades

Forward rotation

Tapered tip angle:30 degree

fit OE compressor housing

Application:

5303-970-0003

5303-970-0006

5303-970-0007

5303-970-0008

5303-970-0015

5303-970-0016

5303-970-0017

5303-970-0020

5303-970-0036

5303-970-0069

5303-970-0070

5303-970-0077

4.Good quality and competitive price

5.please email to me or talk to me on online ,if you want to know more details.

All the compressor wheels have been balanced.

We can produce as your requirement.
