| Categories | DMR Two Way Radio |
|---|---|
| Model Number: | ST6200DB-HD |
| Place of Origin: | Shenzhen, China |
| Brand Name: | SUNTOR |
| Certification: | FCC, CE, RoHS |
| MOQ: | 1 set |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 set/ month |
| Price: | Negotiation |
| Packaging Details: | Plastic Box |
| Delivery Time: | 7-15 days |
| modulation: | COFDM |
| Working frequency: | 300MHz～4.4GHz |
| Output power: | 1～5W LCD adjustable |
| Code stream: | 2Mbps～12Mbps |
| AV input: | HD-SDI or High Definition Multimedia Interface、CVBS(optional) |
| Power supply: | DC14.4V |
| weight: | 1.5kg |
| Company Info. |
| Shenzhen Suntor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

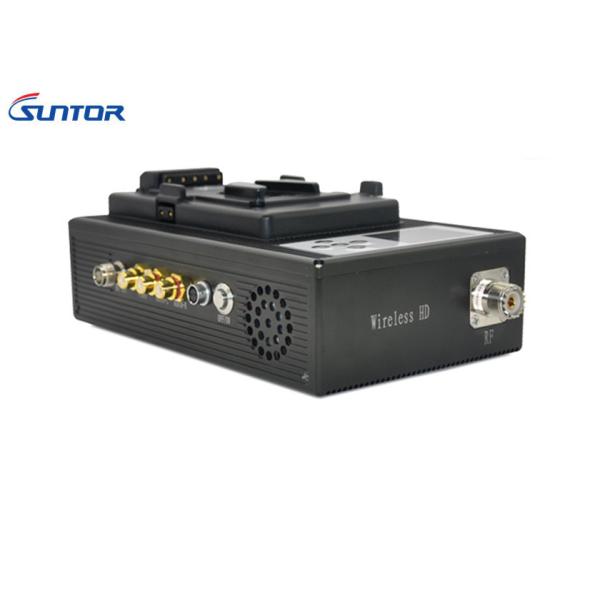

Rack Mounted Wireless HD SDI Audio Video Transmitter and Receiver
Introduction:
Rack Mounted Wireless Range Data Transmitter and Receiver
(ST6200DB-HD) is backpack system with outer rack, special for
man-portable transmitter which can gather information and signal
under the sea or through obstacles, such as many building, severe
electromagnetic interference, remote mountains.
At the front-end personnel, scouts, firefighters, rescue personnel or tevevision interview personnel, use transmitter of ST6200DB-HD to transmit the live signals to the rear command vehicle.Then the command vehicle will imediately receive the image displ Frequency 300-4400MHz(optional)
Main features:
Low delay, lightweight, live broadcast
Support Full- HD quality image
COFDM modulation
Built-in with High Definition Multimedia Interface or HD-SDI interface(single selection);
Support composite standard video and balanced audio input;
All parameters can be adjusted by user Our services(COFDM portable transmitter wireless digital video link)
Application:
COFDM mobile microwave wireless AV transmitter is wildly applied for , law enforcement, maritime surveillance, security video surveillance, and unmanned vehicles like UAV, UGV, robot etc.
Modulation | Working frequency | 300MHz～4.4GHz |
| Output power | 1～5W LCD adjust | |
| Modulation | COFDM | |
| Channel bandwidth | 2/2.5/4/8MHz | |
| Encryption mode | manual operation AES double encryption | |
| System | Standard | H.264 standard |
| Code stream | 2Mbps～12Mbps | |
| Range | 1km(NLOS) 10km(LOS) | |
| Usage mode | Manpack | |
| Audio and video | Compression format | H.264 |
| AV input | HD-SDI or High Definition Multimedia Interface,CVBS(optional) | |
| Audio input | BNC female port, HD-SDI or High Definition Multimedia Interface standard interface | |
| Image resolution | HD1080P(1920*1080), compatibility 1080I,720P,480P and standard resolution | |
| Image frame rate | HD1080P/60fps, HD1080I/50fps | |
| Video input physical interface | BNC female port, High Definition Multimedia Interface standard interface | |
| Audio input physical interface | BNC female port, High Definition Multimedia Interface standard interface | |
| Others | Power supply | special battery DC14.4V |
| LCD display | Display Work Instructions and the Parameters | |
| Size | 200×125×50 mm (L×W×H) | |
| Weight | 1.5kg |
|
